Oxy-Therm System
(Pack of
1.0)
• Cut, gouge and pierce virtually any material, including all metals and thin concrete
• Burns virtually any material, including cast iron, steel, stainless steel, light cement, granite, nickel, titanium, bronze alloys and aluminum, as well as exotic metals and refractory materials
• Burns in damp atmospheres because it operates at temperatures up to 10,000°F (5,538°C)
• Requires only a 12V or 24V battery and oxygen supply
• Operates in all positions; rods can be bent for accessibility and alignment
• Safer than other burning systems – no fuel gases are needed
• Produces less noise, smoke and noxious gases than other systems
• Portable for field use – no heavy or sensitive parts
• Built-in flashback arrestor
CW3589 System Contains:
Rod Holder with Shield
25' Cable and Oxygen Hose

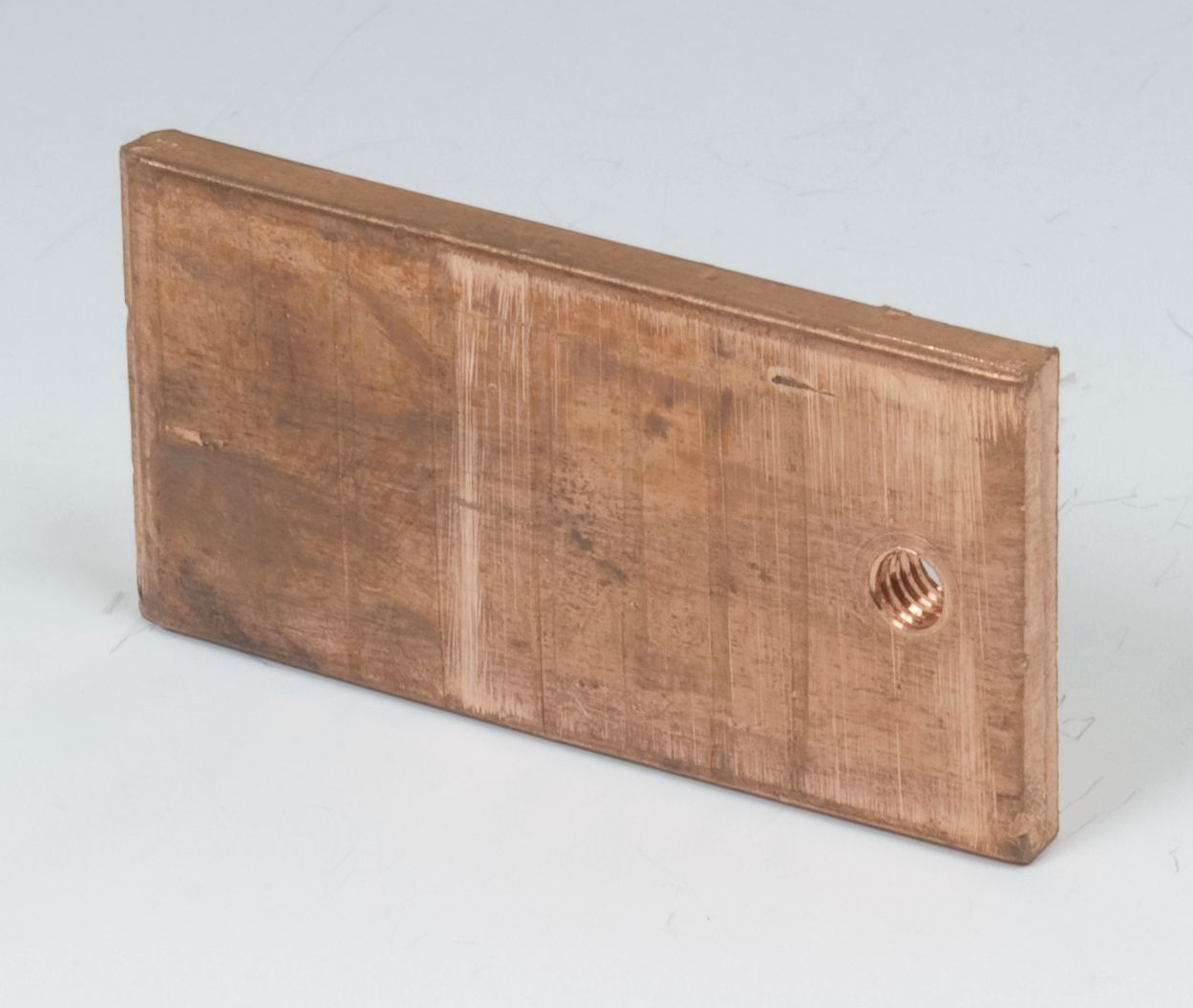

Solid Copper Striker Plate with 25' Cable
Collets for 1/4" and 3/8" Rods
Carrying Case
(Rods sold separately)
Typical Applications
• Track and bucket pin removal, gouging and removing hardfacing and old welds, and bucket repair
• Removes king pins, quickly cuts out bucket tooth shanks as well as bucket edges, and removes bushings
• Casting plants – ideal for spill clean-up, tap cleaning, riser cutting and mold repair
• Penetrates thin concrete for pipe installation and machinery anchor bolts
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 13-48
Frequently Bought Together
9-6506 Plasma Cutting Electrode
Couldn't load pickup availability

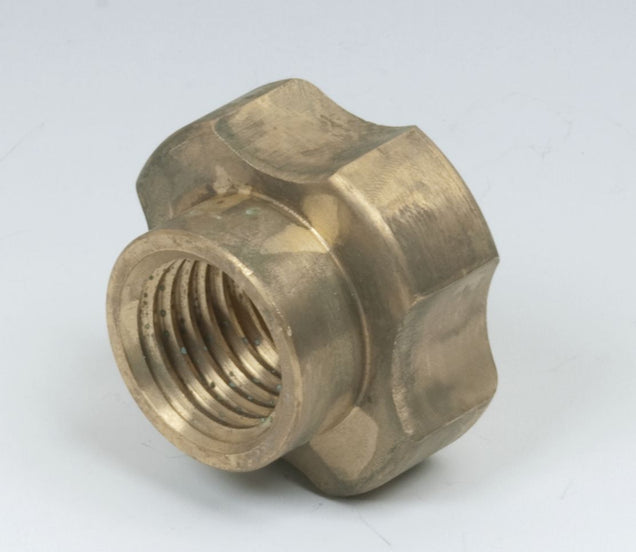

Oxy-Therm Collet 3/8"
Couldn't load pickup availability

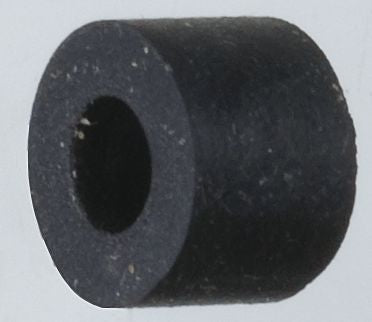

Oxy-Therm Collet Grommet 1/4"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Oxygen Safety Cap Heavy Duty
Couldn't load pickup availability
1/2 on 1/2 Dimension I Double Pass Overlay
Couldn't load pickup availability
1/4 on 3/8 Dimension I Single Pass Overlay
Couldn't load pickup availability
192047 Plasma Cutting Electrode
Couldn't load pickup availability
8-7500 Plasma Cutting Shield Cup
Couldn't load pickup availability
192053 Plasma Cutting Drag Shield
Couldn't load pickup availability
Product Description
• Cut, gouge and pierce virtually any material, including all metals and thin concrete• Burns virtually any material, including cast iron, steel, stainless steel, light cement, granite, nickel, titanium, bronze alloys and aluminum, as well as exotic metals and refractory materials
• Burns in damp atmospheres because it operates at temperatures up to 10,000°F (5,538°C)
• Requires only a 12V or 24V battery and oxygen supply
• Operates in all positions; rods can be bent for accessibility and alignment
• Safer than other burning systems – no fuel gases are needed
• Produces less noise, smoke and noxious gases than other systems
• Portable for field use – no heavy or sensitive parts
• Built-in flashback arrestor
CW3589 System Contains:
Rod Holder with Shield
25' Cable and Oxygen Hose
Solid Copper Striker Plate with 25' Cable
Collets for 1/4" and 3/8" Rods
Carrying Case
(Rods sold separately)
Typical Applications
• Track and bucket pin removal, gouging and removing hardfacing and old welds, and bucket repair
• Removes king pins, quickly cuts out bucket tooth shanks as well as bucket edges, and removes bushings
• Casting plants – ideal for spill clean-up, tap cleaning, riser cutting and mold repair
• Penetrates thin concrete for pipe installation and machinery anchor bolts
Technical Specifications
| Item#: | CW3589 |
|---|---|
| Type | System |
| Welding Process | Miscellaneous |
| Components | Oxy-Therm |
| UNSPSC #: | 23271700 |
| TAA Compliant: | Yes |
| Weight: | 28.0 lb |
