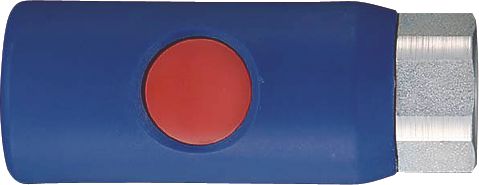

Push-Button Air Coupler Steel 1/4" x 1/4-18
(Pack of
1.0)
Push-Button Air Couplers are made for simplicity…just push the button to release. The release button is recessed to prevent accidental disconnect. Convenient color coding indicates which plug type it will accept: Industrial Interchange, ARO 210 or Tru-Flate. Extremely durable – constructed of steel components encased in a high-impact, non-marring body.
• Body color: Blue with red button
• Note: Does not qualify as a safety coupler. Outside plastic covering indicates if the coupler is a regular coupler (blue) or a safety coupler (black)
• Manufactured to demanding ANSI and ISO standards – use of compatible plugs of the same high standard is recommended
• Unique non-scratching boots
• Maximum working pressure: 175 PSI
• Temperature range: 5°F to 160°F (–15°C to +71°C)
Tru-Flate Design
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 8-163
Frequently Bought Together
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 3/8-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose End Brass 3/8" x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 3/8" x 3/8-18
Couldn't load pickup availability
Hose Barb Elbow 90° Brass 1/4" x 1/4-18
Couldn't load pickup availability
Pipe Adapter Brass 1/4-18 x 3/8-18
Couldn't load pickup availability
Hex Bushing Steel 1/2-14 x 3/8-18
Couldn't load pickup availability
Forged Body Ball Valve Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Barb-Lok Hose End 1/4" (-4) x 1/4-18 (-4)
Couldn't load pickup availability
Barb-Lok Hose End 3/8" (-6) x 5/8-18 (-6)
Couldn't load pickup availability
Barb-Lok Hose End 1/2" (-8) x 1/2-14 (-8)
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Push-Button Air Couplers are made for simplicity…just push the button to release. The release button is recessed to prevent accidental disconnect. Convenient color coding indicates which plug type it will accept: Industrial Interchange, ARO 210 or Tru-Flate. Extremely durable – constructed of steel components encased in a high-impact, non-marring body.• Body color: Blue with red button
• Note: Does not qualify as a safety coupler. Outside plastic covering indicates if the coupler is a regular coupler (blue) or a safety coupler (black)
• Manufactured to demanding ANSI and ISO standards – use of compatible plugs of the same high standard is recommended
• Unique non-scratching boots
• Maximum working pressure: 175 PSI
• Temperature range: 5°F to 160°F (–15°C to +71°C)
Tru-Flate Design
Technical Specifications
| Item#: | 64497 |
|---|---|
| Description | Push-Button Coupler |
| Type | Coupler |
| Style | Tru-Flate |
| Body Size | 1/4 " |
| Thread Style | Female NPT |
| Thread Size | 1/4-18 |
| Working Pressure | 175 PSI |
| Material | Steel with Plastic Cover |
| Flow | 26 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.23 lb |
