Home Hydraulics Fittings Industrial Tubing Push-to-Connect Connector, Nickel-Plated Brass, 1/4 x 3/8"
Advanced Technology Products (ATP)
Push-to-Connect Connector, Nickel-Plated Brass, 1/4 x 3/8
Push-to-Connect Connector, Nickel-Plated Brass, 5/32
Push-to-Connect Connector, Nickel-Plated Brass, 1/4 x 3/8
Push-to-Connect Connector, Nickel-Plated Brass, 5/32

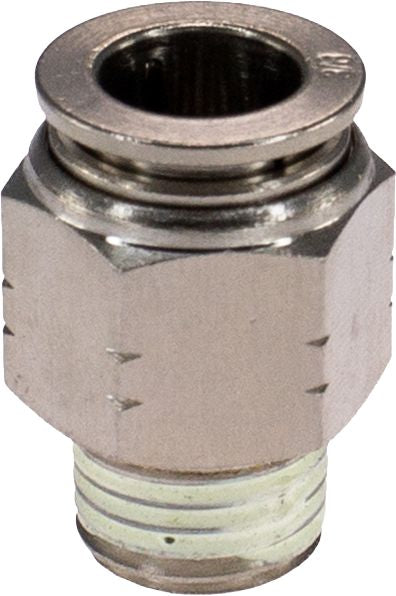

Push-to-Connect Connector, Nickel-Plated Brass, 1/4 x 3/8", Tube x Male NPT, 280 PSI Working Pressure
(Pack of 3)

Item#: 28277

Lawson Products

Designed for compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 9-35

Frequently Bought Together

Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4

Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"

Item#: 54442
Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 1/8

Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 3/8"

Item#: 54439
Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 1/8

Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 5/32"

Item#: 54435
PVC Industrial Tubing, 1/4

PVC Industrial Tubing, 3/8" ID x 100' Clear

Item#: 90338
Nylon Metric Tubing 8mm OD x 25m Black, Industrial Metric Tubing, Nylon, 8mm OD x 6mm ID, 25m Length

Nylon Metric Tubing 8mm OD x 25m Black

Item#: 98256
Push-to-Connect Union Elbow, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2

Push-to-Connect Union Elbow, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2"

Item#: 86793
Push-To-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/4

Push-To-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/4"

Item#: 1593546
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"

Item#: 86751
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/8"

Item#: 87621
Pipe Close Nipple Brass 1/8-27 x 1/8-27, Pipe Close Nipple, Brass, 1/8-27 x 1/8-27, Male NPT x Male NPT, 3/4

Pipe Close Nipple Brass 1/2-14 x 1/2-14

Item#: 5300
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Pipe Coupling Brass 1/8-27 x 1/8-27

Item#: 5288
Pipe Hex Nipple Brass 1/2-14 x 1/4-18, Pipe Hex Nipple, Brass, 1/2-14 x 1/4-18, Male NPT x Male NPT, 1200PSI

Pipe Hex Nipple Brass 1/4-18 x 1/4-18

Item#: 5293
Hex Head Plug Brass 1/2-14 Male NPT, Hex Head Plug, Brass, 1/2-14 Male NPT, 1200PSI

Hex Head Plug Brass 1/4-18 Male NPT

Item#: 5363
DOT Union Brass 3/8 x 3/8

DOT Union Brass 1/2 x 1/2"

Item#: 57501
Hex Head Plug Brass 1/2-14 Male NPT, Hex Head Plug, Brass, 1/2-14 Male NPT, 1200PSI

Hex Head Plug Brass 1/2-14 Male NPT

Item#: 5365
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 10 x 10mm, Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 10 x 10mm

Item#: 54375
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"

Item#: 86763
Nylon Hose Guard 0.91

Nylon Hose Guard 1.06" ID x 25' Length

Item#: 96562
Butt Connector 22 to 18 AWG Red, Butt Connector, 2-Piece Heat Seal, Red, 22 to 18 AWG, 1.45

Butt Connector 22 to 18 AWG Red

Item#: 92822
Stepdown Butt Connector 22 to 18/16 to 14 AWG, Stepdown Butt Connector, Crystal Clear Insulation, 22 to 18/16 to 14 AWG

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Item#: 1495188
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152

Product Description

Designed for compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 28277
Style Nickel-Plated Brass Push-To-Connect
Configuration Male Connector
Tube Size 1/4 "
Thread Size 3/8 "
Thread Style NPT
Material Nickel-Plated Brass
Wrench Size 18 mm
Internal Hex Size 5 mm
Thread Length 0.45 "
Working Pressure 280 PSI
Temperature Range -4 to +176 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.2 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
