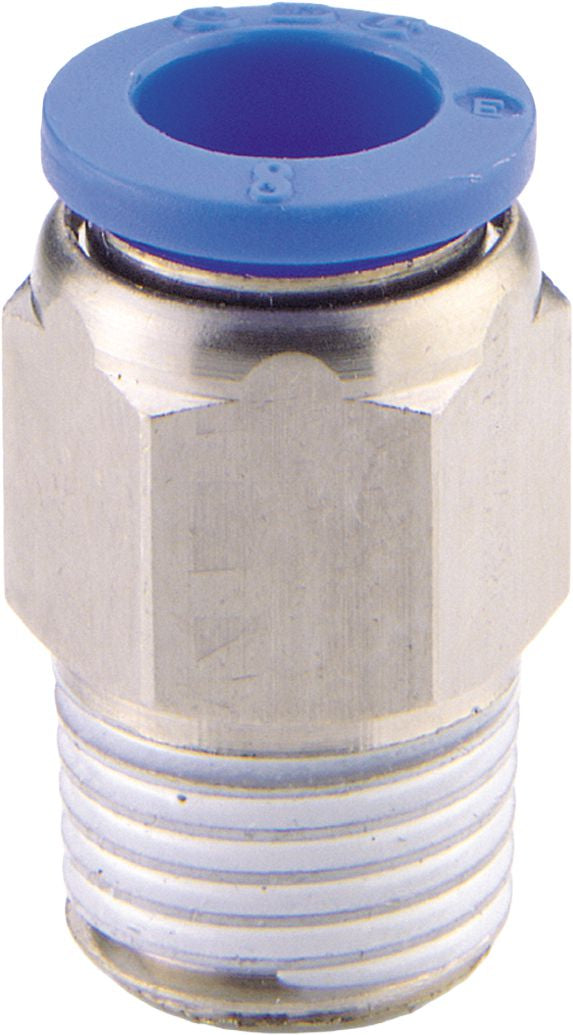

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 (8mm) x 3/8", Tube x Male NPT, 150 PSI Working Pressure
(Pack of 3)

Item#: 87623

Lawson Products

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
– Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
– Gripping Ring: 301 stainless steel
– Release Ring: Acetal plastic
– O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 9-29

Frequently Bought Together

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"

Item#: 86752
Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4

Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"

Item#: 54442
Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 1/8

Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 3/8"

Item#: 54439
Nylon Tubing 1/4

Nylon Tubing 1/4" OD x 100' Translucent

Item#: 5427
PVC Industrial Tubing, 1/4

PVC Industrial Tubing, 3/8" ID x 100' Clear

Item#: 90338
Nylon Metric Tubing 8mm OD x 25m Black, Industrial Metric Tubing, Nylon, 8mm OD x 6mm ID, 25m Length

Nylon Metric Tubing 8mm OD x 25m Black

Item#: 98256
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4"

Item#: 86805
Push-To-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/4

Push-To-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/4"

Item#: 1593546
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"

Item#: 86751
Pipe Adapter Brass 1/4-18 x 3/8-18, Pipe Adapter, Brass, 1/4-18 x 3/8-18, Male NPT x Female NPT, 1200PSI

Pipe Adapter Brass 1/4-18 x 3/8-18

Item#: 5280
Pipe Close Nipple Brass 1/8-27 x 1/8-27, Pipe Close Nipple, Brass, 1/8-27 x 1/8-27, Male NPT x Male NPT, 3/4

Pipe Close Nipple Brass 1/2-14 x 1/2-14

Item#: 5300
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Pipe Coupling Brass 1/8-27 x 1/8-27

Item#: 5288
Hose Clamp 304 SS 2-13/16 to 3-3/4

Hose Clamp 304 SS 9/16 to 1-1/16"

Item#: 86725
Hex Head Plug Brass 1/2-14 Male NPT, Hex Head Plug, Brass, 1/2-14 Male NPT, 1200PSI

Hex Head Plug Brass 1/4-18 Male NPT

Item#: 5363
DOT Union Brass 3/8 x 3/8

DOT Union Brass 1/2 x 1/2"

Item#: 57501
Tubing Cutter 1/8 to 1/2

Tubing Cutter 1/8 to 1/2"

Item#: 87666
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 10 x 10mm, Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 10 x 10mm

Item#: 54375
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"

Item#: 86763
Butt Connector 22 to 18 AWG Red, Butt Connector, 2-Piece Heat Seal, Red, 22 to 18 AWG, 1.45

Butt Connector 22 to 18 AWG Red

Item#: 92822
Stepdown Butt Connector 22 to 18/16 to 14 AWG, Stepdown Butt Connector, Crystal Clear Insulation, 22 to 18/16 to 14 AWG

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Item#: 1495188
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152

Product Description

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
– Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
– Gripping Ring: 301 stainless steel
– Release Ring: Acetal plastic
– O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 87623
Configuration Male Connector
Tube Size 5/16" (8mm)
Thread Size 3/8 "
Thread Style NPT
Material Nickel-Plated Brass/PBT Resin
Wrench Size 18 mm
Internal Hex Size .25 "
Working Pressure 150 PSI
Temperature Range 32 to 140 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.16 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
