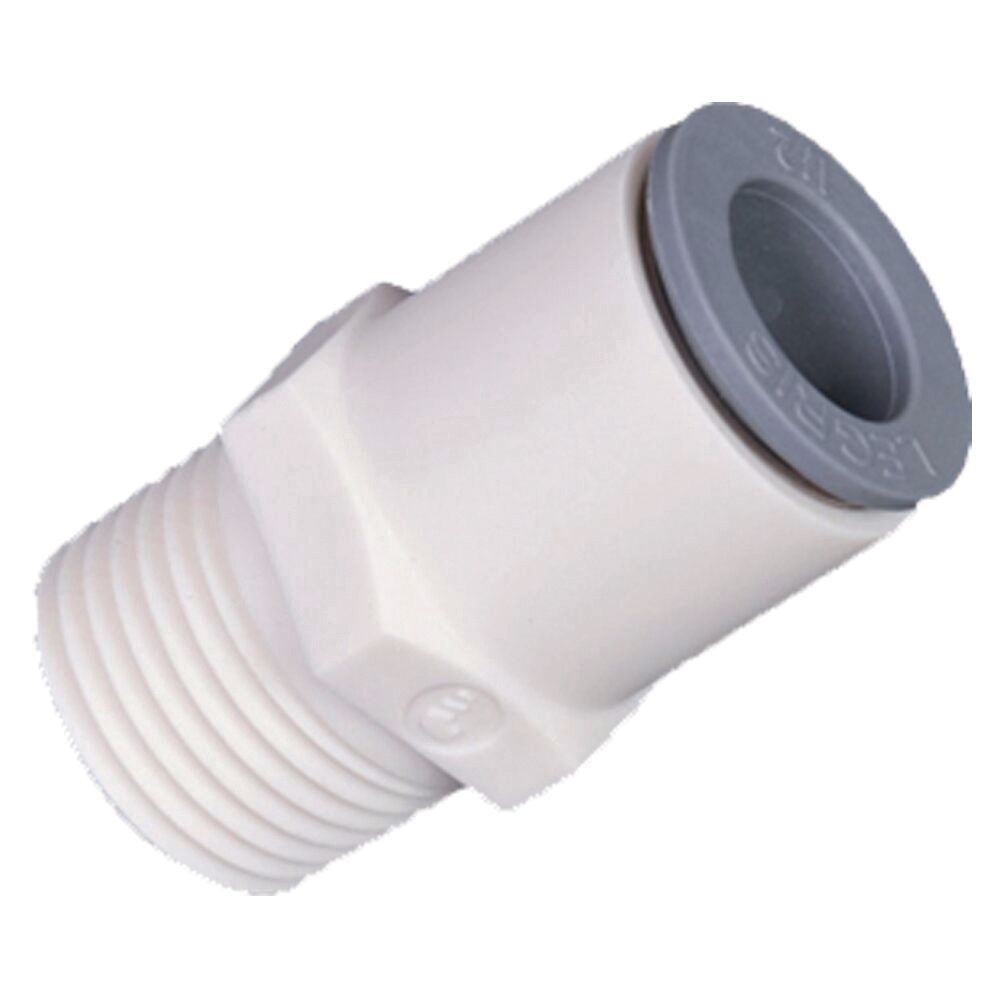

LIQUIfit Push-to-Connect Connector, Polymer, 1/4 x 3/8", Tube x Male NPTF, 230PSI
(Pack of
10)
SKU:1263829 Item#: 1263829
LIQUIfit is a revolutionary push-to-connect fitting for water treatment applications. The stainless steel gripping ring coupled with the EPDM seal offer optimum performance suitable for contact with water, beverages and food. Its full flow profile delivers maximum capability while its compact push-to-connect design facilitates the tightest tube bends in the industry with no pumping effect.
• High chemical resistance (chlorine, cleaning agents, UV)
• All items in the LIQUIfit range are silicone free
• Approved for contact with food: FDA, NSF 51, NSF 61, WRAS inch
• Working temperature: 35°F to 200°F
• Working pressure: Up to 230 PSI
• Suitable for water, beverages, food and CO2
• Construction:
– Body: Engineered polymer
– Gripping ring: Stainless steel
– “D” seal: EPDM
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
– Inert gas supply
– High purity water
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-39
Frequently Bought Together
Merchant Coupling Steel 1/2-14 x 1/2-14
Couldn't load pickup availability
Pipe Nipple Steel Black Schedule 40 Welded 1/2-14 x 1-1/8 " Close
Couldn't load pickup availability
Square Head Plug Malleable Iron Black 1/2-14
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/8-27
Couldn't load pickup availability
Hose Clamp 304 SS 1-13/16 to 2-3/4"
Couldn't load pickup availability
Push-to-Connect Extension Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 10mm x 1/4"
Couldn't load pickup availability
Nylon Hose Guard 1.81" ID x 25' Length
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
LIQUIfit is a revolutionary push-to-connect fitting for water treatment applications. The stainless steel gripping ring coupled with the EPDM seal offer optimum performance suitable for contact with water, beverages and food. Its full flow profile delivers maximum capability while its compact push-to-connect design facilitates the tightest tube bends in the industry with no pumping effect.• High chemical resistance (chlorine, cleaning agents, UV)
• All items in the LIQUIfit range are silicone free
• Approved for contact with food: FDA, NSF 51, NSF 61, WRAS inch
• Working temperature: 35°F to 200°F
• Working pressure: Up to 230 PSI
• Suitable for water, beverages, food and CO2
• Construction:
– Body: Engineered polymer
– Gripping ring: Stainless steel
– “D” seal: EPDM
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
– Inert gas supply
– High purity water
Technical Specifications
| Item#: | 1263829 |
|---|---|
| Manufacturer Model #: | 6505 56 18WP2 |
| Style | LIQUIfit |
| Configuration | Male Connector |
| Tube Size | 1/4 " |
| Thread Size | 3/8 " |
| Thread Style | NPTF |
| Material | Engineered Polymer |
| Wrench Size | 3/4 " |
| Internal Hex Size | 1/4 " |
| Working Pressure | 230 PSI |
| Temperature Range | +35 to +200 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
