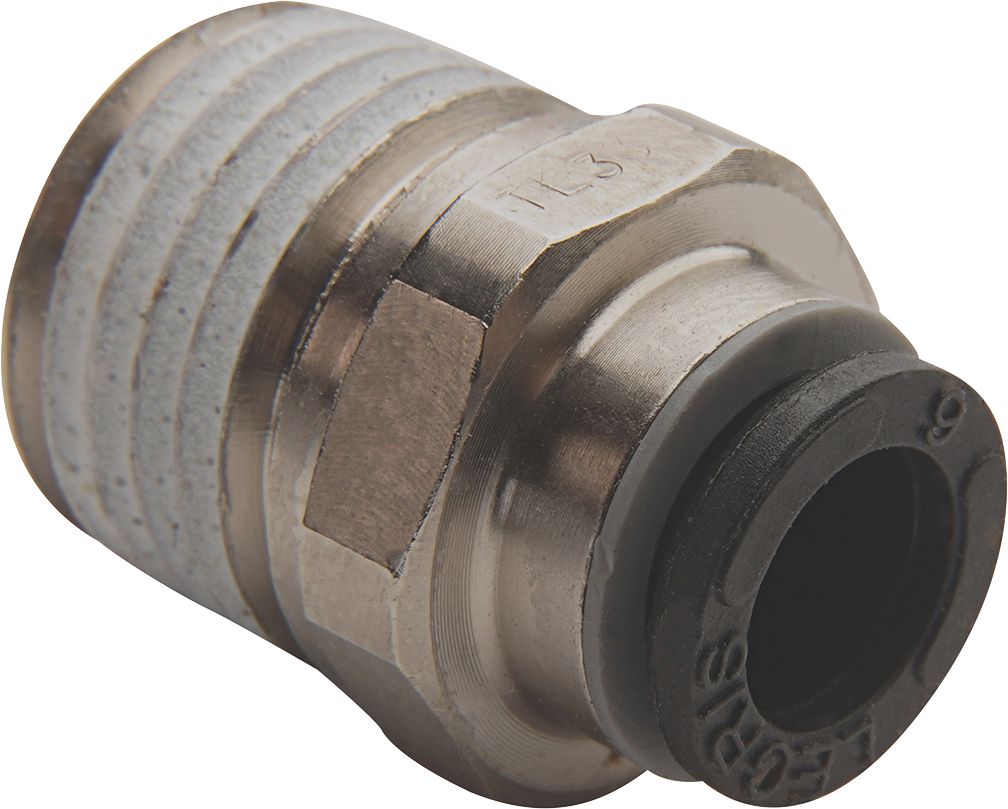

Push-To-Connect Fitting, LF3000, Male Connector, 6mm Tube x 1/4 NPT, Nickel-Plated Brass
(Pack of
10)
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free• Working temperature: -4°F to +175°F (collet technology 3/16" tube size: 5° F to 155° F)• Working pressure: up to 290 PSI• Suitable fluids: compressed air• Vacuum capability: vacuum of 28" Hg (99% vacuum)
• Construction:– Body: glass-reinforced nylon 6.6– Collar: nylon– Gripping ring: stainless steel (all sizes except 3/16" tube)– Collet: brass (3/16" tube size only)– D seal: nitrile– O-ring: nitrile– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Forged Body Ball Valve Brass 3/4 x 3/4"
Couldn't load pickup availability
Pipe Bushing Brass 1/4-18 x 1/8-27
Couldn't load pickup availability
Pipe Bushing Brass 3/4-14 x 1/2-14
Couldn't load pickup availability
DOT Union Brass 1/2 x 1/2"
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Push-to-Connect Connector Brass 5/16 x 1/4"
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 3/8 x 3/8"
Couldn't load pickup availability
Push-to-Connect Tee Nylon 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Product Description
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.• All items in the LF3000 range are silicone free• Working temperature: -4°F to +175°F (collet technology 3/16" tube size: 5° F to 155° F)• Working pressure: up to 290 PSI• Suitable fluids: compressed air• Vacuum capability: vacuum of 28" Hg (99% vacuum)
• Construction:– Body: glass-reinforced nylon 6.6– Collar: nylon– Gripping ring: stainless steel (all sizes except 3/16" tube)– Collet: brass (3/16" tube size only)– D seal: nitrile– O-ring: nitrile– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 1593546 |
|---|---|
| Style | LF3000 |
| Configuration | Male Connector |
| Tube Size | 6 mm |
| Thread Size | 1/4 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass |
| Wrench Size | 14 mm |
| Internal Hex Size | 4 mm |
| Working Pressure | 290 PSI |
| Temperature Range | -4 to +175 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
| Weight: | 0.28 lb |
