Push-to-Connect Run Tee, Nickel-Plated Brass, 1/4 x 1/4 x 1/8
Push-to-Connect Run Tee, Nickel-Plated Brass, 1/4 x 1/4 x 1/8

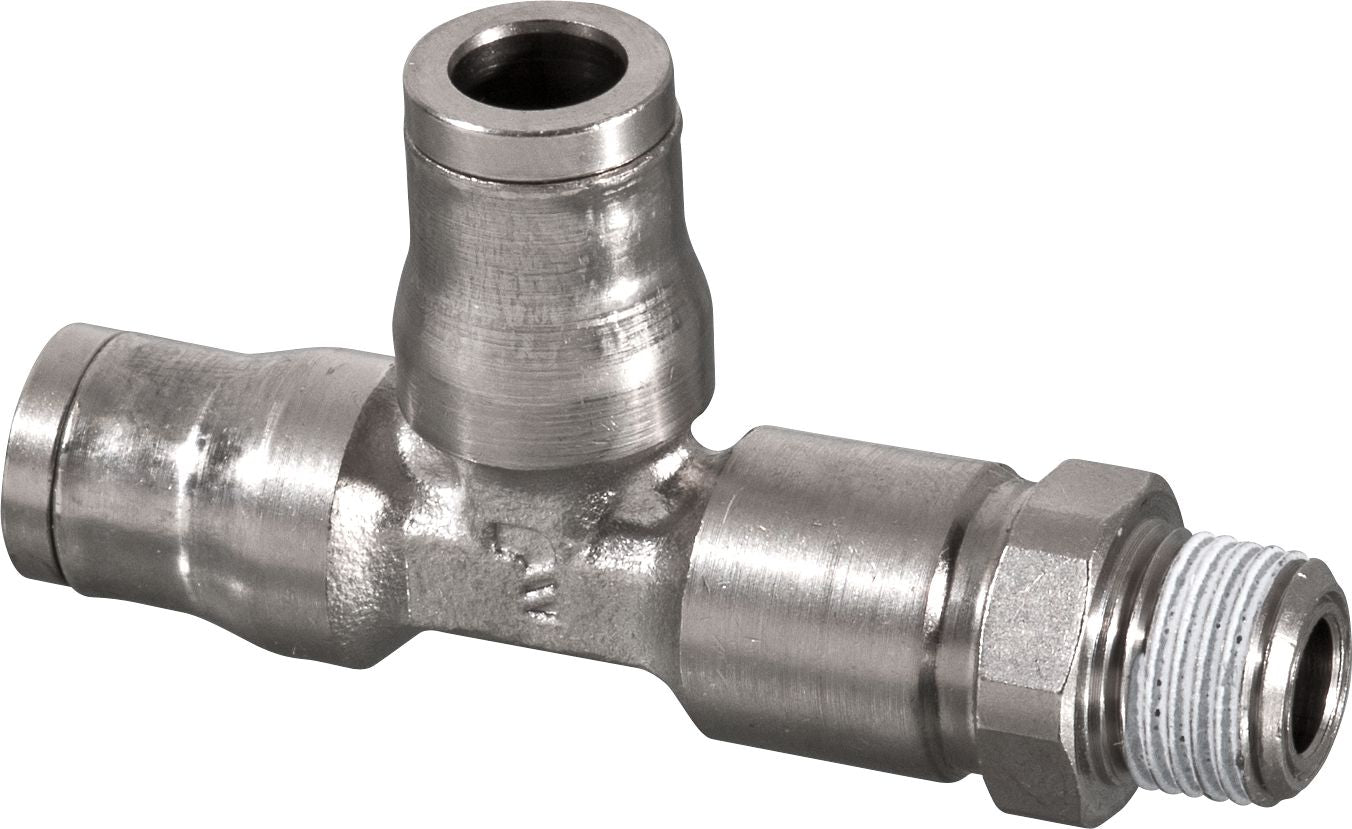

Push-to-Connect Run Tee, Nickel-Plated Brass, 1/4 x 1/4 x 1/8", Tube x Tube x Male NPT, 280 PSI Working Pressure
(Pack of 3)

Item#: 28306

Lawson Products

Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 9-36

Frequently Bought Together

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 10mm x 1/2

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 5/16 x 1/8"

Item#: 62243
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"

Item#: 62199
Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 10 x 12mm, Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 5/16" x 10mm

Item#: 56075
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 1/4

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 1/4"

Item#: 86769
Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 3/8

Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 3/8"

Item#: 86777
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4"

Item#: 86768
Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 12 x 12 x 12mm, Tube x Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 12 x 12 x 12mm

Item#: 17940
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 6 x 6mm x 1/4

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 10 x10mm x 3/8"

Item#: 54361
Push-to-Connect Union Tee, Nickel-Plated Brass, 6 x 6 x 6mm, Tube x Tube x Tube, 280 PSI Working Pressure

Push-to-Connect Union Tee, Nickel-Plated Brass, 6 x 6 x 6mm

Item#: 1198576
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"

Item#: 86781
Square Head Plug Malleable Iron Black 1-1/4-11-1/2, Square Head Plug, Malleable Iron, Black, Schedule 40, 1-1/4-11-1/2

Square Head Plug Steel Black 1/4-18

Item#: 8675
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18, Pipe Street Elbow, Brass, 45°, 3/8-18 x 3/8

Pipe Street Elbow Brass 45° 1/8-27 x 1/8-27

Item#: 5312
Z Series Crimp-On Hose End 1/2

Z Series/1A Series Crimp-On Hose End 1/4" x 9/16-18

Item#: 16610
Crimp-On Hose Coupling 5/8

Crimp-On Hose Coupling 3/8" x 9/16-18

Item#: 88360KH
Super 77 Hose Clamps 300 Series Stainless Steel bands with 305 Series Stainless Steel Screw Size # 76 2-1/4-5-3/16 x 1/2

Super 77 Hose Clamp SS 1/2 to 1-1/8"

Item#: 85496
Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 12 x 12 x 12mm, Tube x Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 6 x 6 x 6mm

Item#: 54388
Push-to-Connect Straight Union, Nickel-Plated Brass, 3/8 x 3/8

Push-to-Connect Straight Union, Nickel-Plated Brass, 3/8 x 3/8"

Item#: 28327
Push-to-Connect Banjo, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Push-to-Connect Banjo, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"

Item#: 56059
SAE Flat Washer Thru-Hardened Steel 1/2

SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104
Interchangeable Hex Bit Set 20Pc Torx, 20 Pc, Interchangeable Torx Quick Release Hex Bit Set

Interchangeable Hex Bit Set 20Pc Torx

Item#: DY89310522

Product Description

Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 28306
Style Nickel-Plated Brass Push-To-Connect
Configuration Male Run Tee
Tube Size 1/4 "
Thread Size 1/8 "
Thread Style NPT
Material Nickel-Plated Brass
Wrench Size 13 mm
Thread Length 0.30 "
Working Pressure 280 PSI
Temperature Range -4 to +176 °F
UNSPSC #: 40183100
TAA Compliant: No
Weight: 0.225 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
