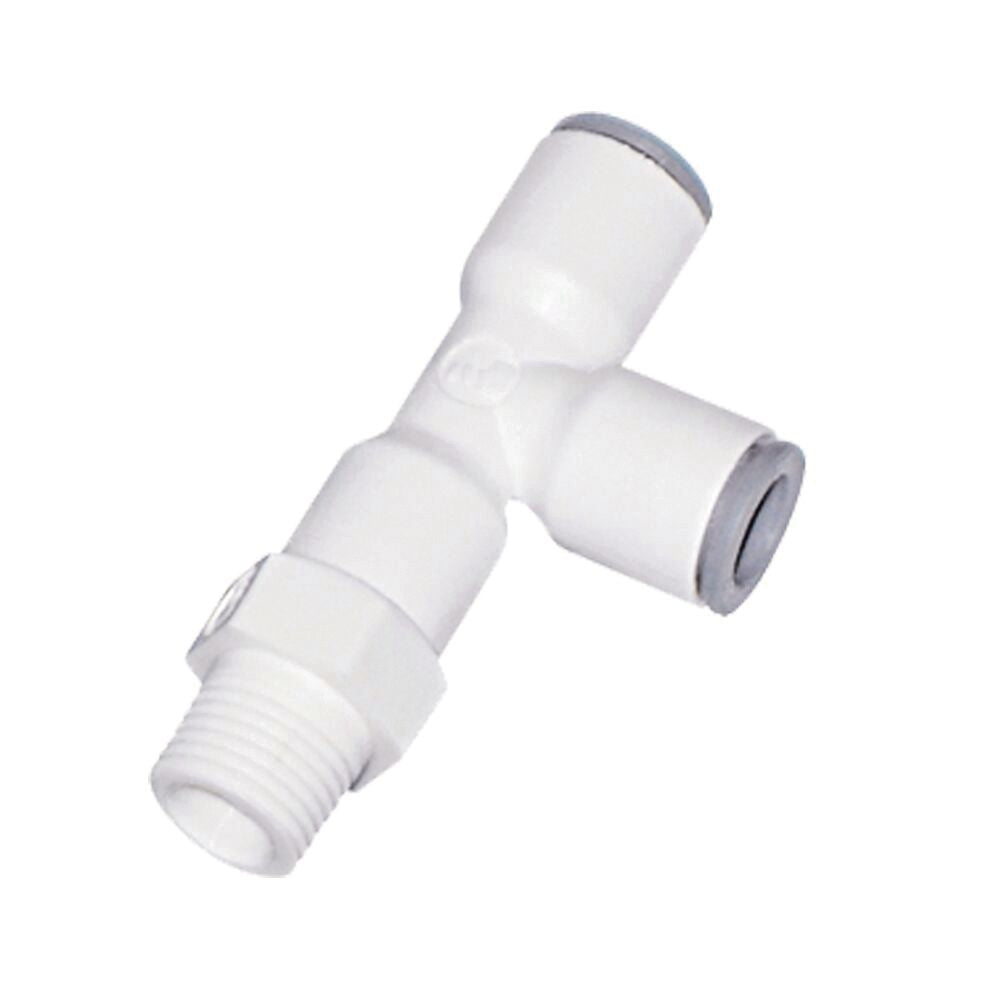

Push-to-Connect Swivel Run Tee, Polyoxymethlene, 1/2 x 1/2 x 1/2", Tube x Tube x NPTF, 232 PSI Working Pressure
(Pack of
4)
SKU:1261522 Item#: 1261522
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-40
Frequently Bought Together
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 6mm x 1/8"
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"
Couldn't load pickup availability
Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
Pipe Adapter Brass 1/4-18 x 3/8-18
Couldn't load pickup availability
Pipe Hex Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Bushing Brass 3/4-14 x 1/2-14
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Nylon Hose Guard 1.42" ID x 25' Length
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 6mm x 1/8"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Product Description
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Technical Specifications
| Item#: | 1261522 |
|---|---|
| Configuration | Swivel Run Tee |
| Tube Size | 1/2 " |
| Thread Size | 1/2 " |
| Thread Style | NPTF |
| Material | Polyoxymethlene |
| Wrench Size | 15/16 " |
| Working Pressure | 232 PSI |
| Temperature Range | 32 to 158 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
