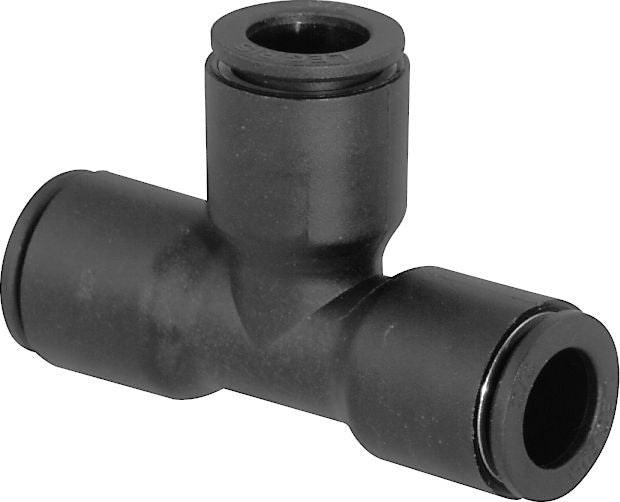

Push-to-Connect Tee Nylon 6 x 6 x 6mm
(Pack of
5)
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-33
Frequently Bought Together
Square Head Plug Malleable Iron Black 1/2-14
Couldn't load pickup availability
Pipe Nipple Steel Black 1/2-14 x 1/2-14
Couldn't load pickup availability
Hex Head Plug Brass 1/8-27 Male NPT
Couldn't load pickup availability
Super 77 Hose Clamp SS 5/8 to 1-1/4"
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
Push-to-Connect Connector Brass 12mm x 3/8"
Couldn't load pickup availability
Push-to-Connect Union Tee Brass 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
Nylon Hose Guard 1.81" ID x 25' Length
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Product Description
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 98215 |
|---|---|
| Style | LF3000 |
| Configuration | Tee |
| Tube Size | 6 mm |
| Material | Nylon Body |
| Working Pressure | 290 PSI |
| Temperature Range | -4 to +175 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.04 lb |
