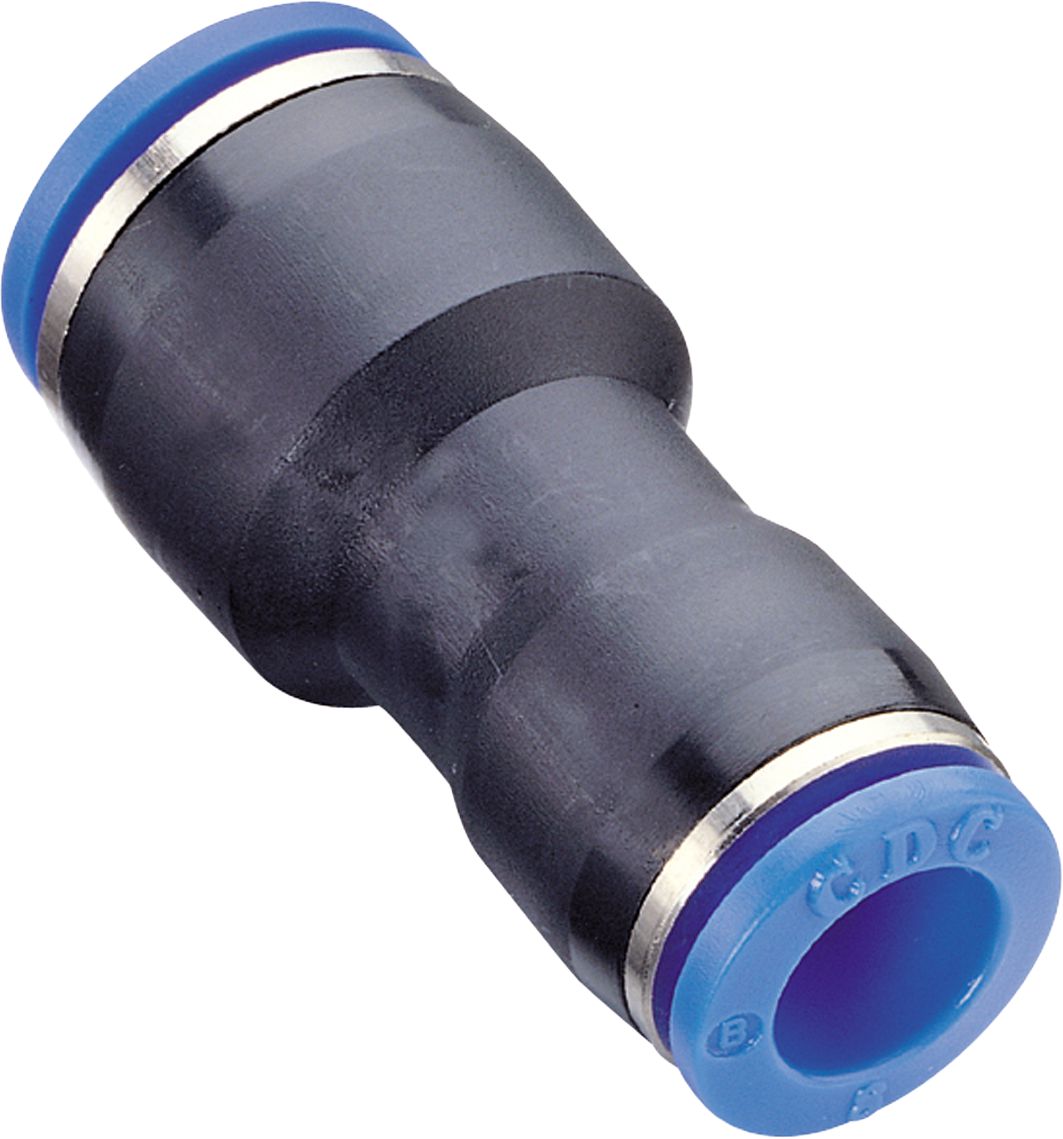

Push-To-Connect Unequal Union, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4
Push-To-Connect Unequal Union, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4

Push-To-Connect Fitting, Unequal Union, 3/8 x 1/4" Tube, Nickel-Plated Brass/PBT Resin, 150 Working Pressure
(Pack of 10)

Item#: 1593567

Lawson Products

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 3/8 x 1/2

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 3/8 x 1/2"

Item#: 55739
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"

Item#: 55721
Inline 1-Way Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4

Inline 1-Way Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32"

Item#: 54444
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 10mm x 1/2

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 10mm x 1/2"

Item#: 62244
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"

Item#: 55721
Push-to-Connect Banjo, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Push-to-Connect Banjo, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"

Item#: 56063
Push-to-Connect Connector, Nickel-Plated Brass, 12mm x 1/2

Push-to-Connect Connector, Nickel-Plated Brass, 4mm x 1/4"

Item#: 1196760
Push-to-Connect Connector, Nickel-Plated Brass, 1/4

Push-to-Connect Connector, Nickel-Plated Brass, 1/4" x 10-32

Item#: 28274
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 12mm x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 12mm x 3/8"

Item#: 1196568
Pipe Hex Nipple Brass 1/2-14 x 1/4-18, Pipe Hex Nipple, Brass, 1/2-14 x 1/4-18, Male NPT x Male NPT, 1200PSI

Pipe Hex Nipple Brass 1/8-27 x 1/8-27

Item#: 5292
Hex Head Plug Brass 1/2-14 Male NPT, Hex Head Plug, Brass, 1/2-14 Male NPT, 1200PSI

Hex Head Plug Brass 3/4-14 Male NPT

Item#: 82257
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18, Pipe Street Elbow, Brass, 45°, 3/8-18 x 3/8

Pipe Street Elbow Brass 45° 1/4-18 x 1/4-18

Item#: 5313
Non-Perforated Clamp 316 SS #28 1-1/4 to 2-1/4

Non-Perforated Clamp 316 SS #4 7/16 to 11/16"

Item#: 58832
Hose Clamp 304 SS 2-13/16 to 3-3/4

Hose Clamp 304 SS 1-9/16 to 2-1/2"

Item#: 86731
Silicone Heater/Coolant Hose Clamp SS 2-1/16 to 3

Silicone Heater/Coolant Hose Clamp 1/2 to 29/32"

Item#: 90782
Push-to-Connect Banjo, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Push-to-Connect Banjo, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"

Item#: 56059
Copper Soft Annealed Tubing 5/16

Copper Soft Annealed Tubing 3/8" OD x 25'

Item#: 5464
Copper Soft Annealed Tubing 5/16

Copper Soft Annealed Tubing 1/4" OD x 25'

Item#: 5462
Lock Washer Alloy Steel 1/2

Lock Washer Alloy Steel 3/8"

Item#: A530
SAE Flat Washer Thru-Hardened Steel 3/8

SAE Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88437
Cable Tie 14.19

Cable Tie 13.38" Black

Item#: 85490M01

Product Description

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 1593567
Configuration Unequal Union
Tube Size 3/8 x 1/4 "
Material Nickel-Plated Brass/PBT Resin
Working Pressure 150 PSI
Temperature Range 32 to 140 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.345 lb
