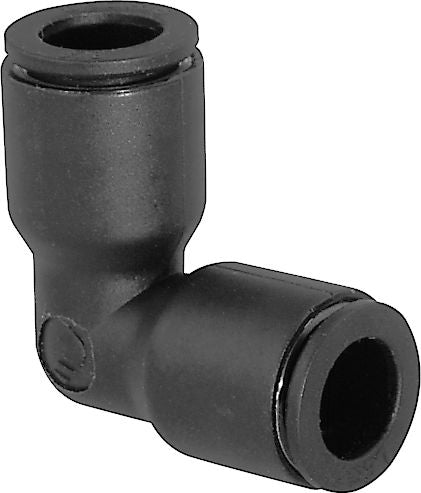

Push-to-Connect Union Elbow Nylon 6 x 6mm
(Pack of
5.0)
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-33
Frequently Bought Together
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Push-to-Connect Union Nylon 6 x 6mm
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 3/8 x 1/4"
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 1/4 x 1/4"
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Product Description
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 98212 |
|---|---|
| Style | LF3000 |
| Configuration | Union Elbow |
| Tube Size | 6 mm |
| Material | Nylon Body |
| Working Pressure | 290 PSI |
| Temperature Range | -4 to +175 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.035 lb |
