Push-to-Connect Union Tee SS 3/8 x 3/8 x 3/8"
(Pack of
5.0)
All materials, seals, and plating conform to FDA standards and can come in contact with food. Legris LF3800’s all stainless steel construction with FKM “O” ring seals offer excellent resistance to aggressive environments and fluids.
• All items in the LF3800 range are Silicone free• Working temperature: -4°F to +245°F • Working pressure: Up to 290 PSI • Sutable fluids: all fluids compatible with the materials of the fitting • Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied. • Nutriment grade materials and USDA NSF H1 grease conforming to FDA and 1934/2004 CE standards, permitting permanent contact with food• A permissible all metal product, avoiding the risk of non-detection of misplaced components• A smooth surface design aimed at reducing retention zones for safe and easy cleaning
• Construction: – Body: 316L Stainless Steel– Backup washer: 316L Stainless Steel– Collet: 303L Stainless Steel– “O” ring: FKM– Base: 316L Stainless Steel
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Street Elbow Malleable Iron 90° 3/4-14 x 3/4-14
Couldn't load pickup availability
Square Head Plug Steel Black 1/4-18
Couldn't load pickup availability

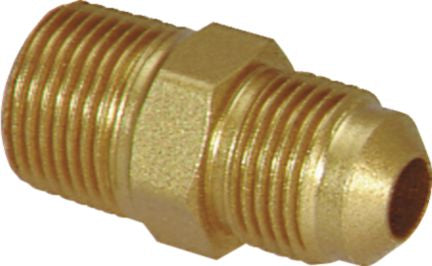

Air Line Connector Brass SAE 45° Flare 1/2 x 5/8"
Couldn't load pickup availability
Forged Body Ball Valve Brass 3/4 x 3/4"
Couldn't load pickup availability
Forged Body Ball Valve Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Tygon Fuel/Lubricant Tubing 5/16" OD x 50'
Couldn't load pickup availability
Tygon Fuel/Lubricant Tubing 1/4" OD x 50'
Couldn't load pickup availability
PV2420-1
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/16-18
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Product Description
All materials, seals, and plating conform to FDA standards and can come in contact with food. Legris LF3800’s all stainless steel construction with FKM “O” ring seals offer excellent resistance to aggressive environments and fluids.• All items in the LF3800 range are Silicone free• Working temperature: -4°F to +245°F • Working pressure: Up to 290 PSI • Sutable fluids: all fluids compatible with the materials of the fitting • Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied. • Nutriment grade materials and USDA NSF H1 grease conforming to FDA and 1934/2004 CE standards, permitting permanent contact with food• A permissible all metal product, avoiding the risk of non-detection of misplaced components• A smooth surface design aimed at reducing retention zones for safe and easy cleaning
• Construction: – Body: 316L Stainless Steel– Backup washer: 316L Stainless Steel– Collet: 303L Stainless Steel– “O” ring: FKM– Base: 316L Stainless Steel
Technical Specifications
| Item#: | 1199743 |
|---|---|
| Style | LF3800 |
| Configuration | Union Tee |
| Tube Size | 3/8 " |
| Material | Stainless Steel |
| Working Pressure | 7 to 290 PSI |
| Temperature Range | -4 to +245 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
| Weight: | 0.0 lb |
