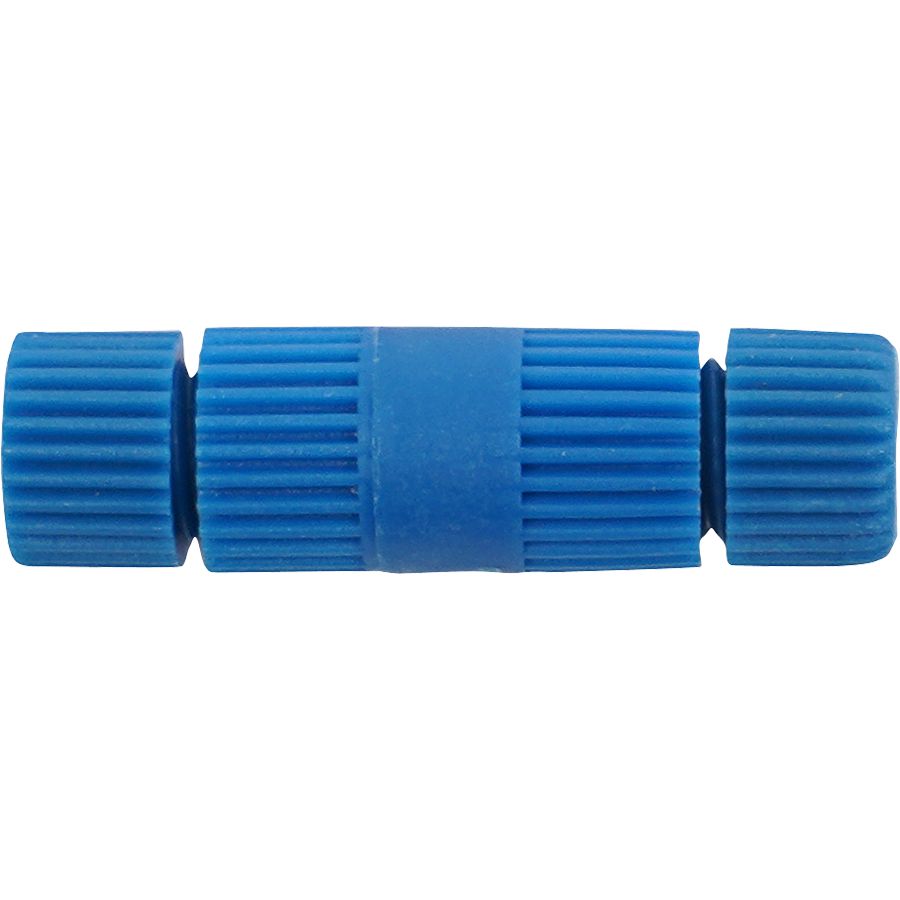

Reusable Posi-Lock Butt Connector, 14-16 AWG Wire, Blue
(Pack of
5)
Splice two or more wires together anywhere, without soldering, crimping or heating
Strip the wire ends, insert the wire into the Posi-Lock and hand tighten
Disconnect and reconnect repeatedly without impairing connection integrity
These wire locks can be used over and over with consistent, positive results.
Maximum Temperature Rating: Continuous 220˚F/105˚C Intermittent 250˚C/482˚F
Couldn't load pickup availability
Catalog page#: LE-146
Frequently Bought Together
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Clear
Couldn't load pickup availability
Porcelain Wire Connector 18 to 14 AWG
Couldn't load pickup availability
Porcelain Wire Connector 18 to 14 AWG
Couldn't load pickup availability
Reusable Posi-Lock
Couldn't load pickup availability
Reusable Posi-Lock Butt Connector 10-12 AWG Wire Yellow
Couldn't load pickup availability
Reusable Posi-Tap
Couldn't load pickup availability
Reusable Posi-Lock
Couldn't load pickup availability
Product Description
Splice two or more wires together anywhere, without soldering, crimping or heating Strip the wire ends, insert the wire into the Posi-Lock and hand tighten
Disconnect and reconnect repeatedly without impairing connection integrity
These wire locks can be used over and over with consistent, positive results.
Maximum Temperature Rating: Continuous 220˚F/105˚C Intermittent 250˚C/482˚F
Technical Specifications
| Item#: | DY20061416 |
|---|---|
| Type | Butt Connector |
| Wire Gauge | 16-14 AWG |
| Voltage Rating | 600 V |
| Color | Blue |
| Maximum Temperature Rating | Continuous 220˚F/ 105˚C Intermittent 250˚C/482˚F |
| Approvals | UL 486C and SAE J1211 |
| Description | Blue Reusable Posi-Lock Butt Connector, 16-14 AWG |
| Style | Posi-Lock™ Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | No |
| Weight: | 0.02 lb |
