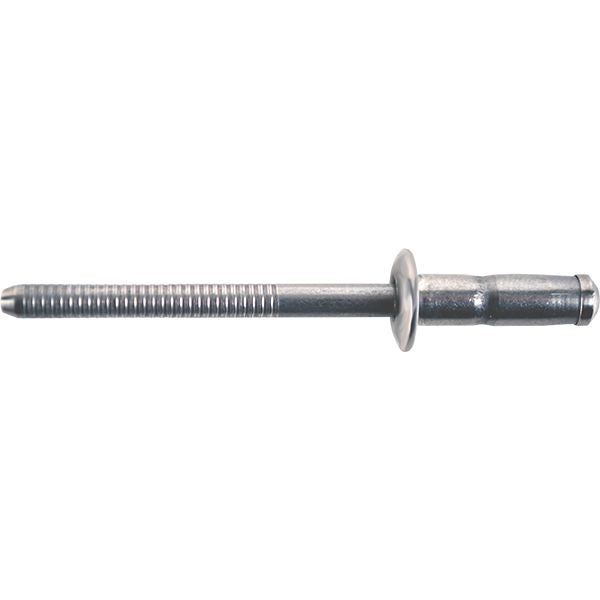

Rivinox® Rear-Flange Rivet Dome Head SS 3/16"
(Pack of
500.0)
Dome Head

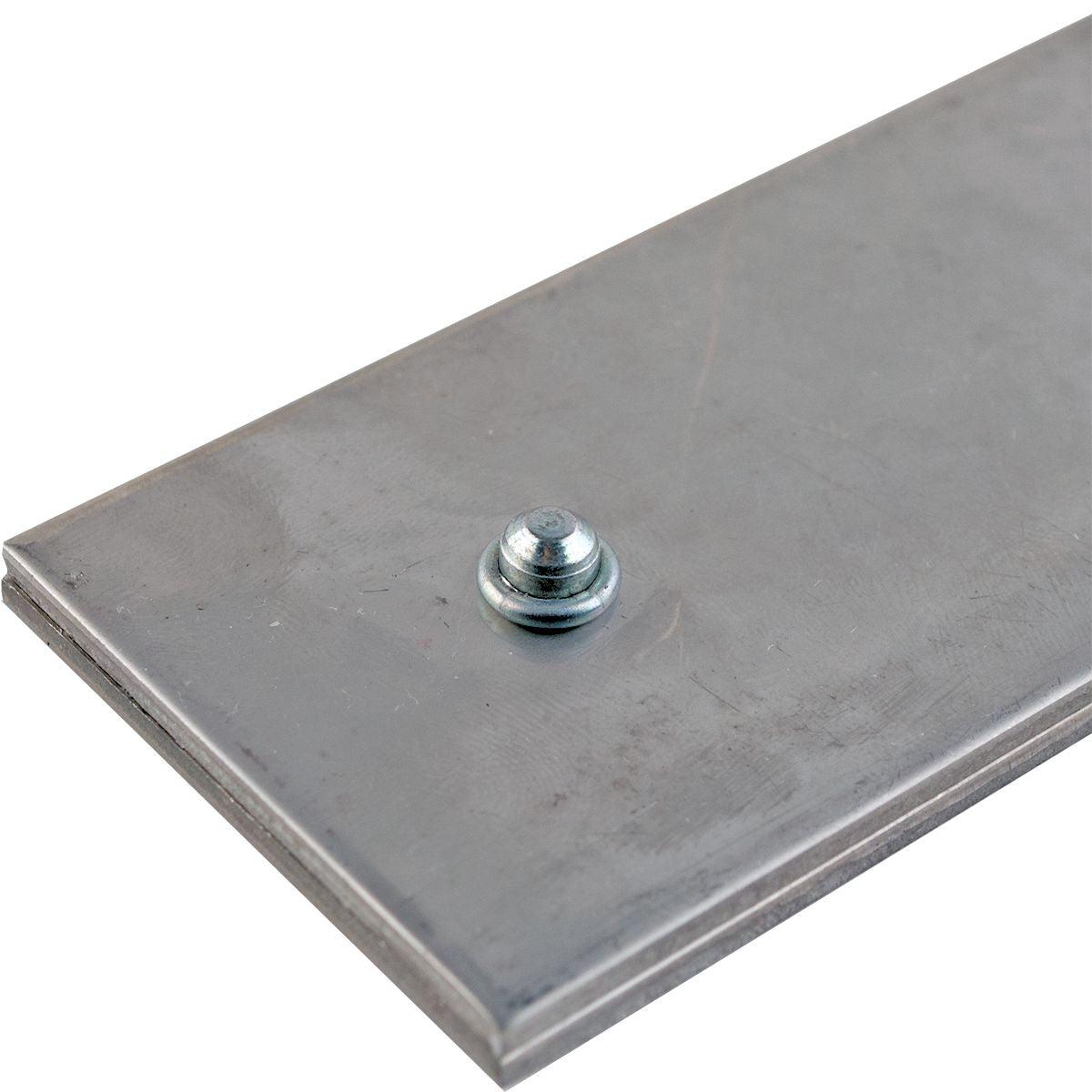

• Provides a rear flange on the back side of the application – perfect for thin sheet metals or plastics where rivet pull-through is of concern
• The mandrel will break nearly flush with the head and is locked to prevent vibration
• 18-8 stainless steel construction provides a corrosion-resistant joint
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 7-15
Frequently Bought Together
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet 120° Countersunk Head Steel 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/32"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Dome Head• Provides a rear flange on the back side of the application – perfect for thin sheet metals or plastics where rivet pull-through is of concern
• The mandrel will break nearly flush with the head and is locked to prevent vibration
• 18-8 stainless steel construction provides a corrosion-resistant joint
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 1543613 |
|---|---|
| Type | Rear-Flange |
| Head Style | Dome Head |
| Material Body/Mandrel | Stainless Steel/Stainless Steel |
| Diameter | 3/16 " |
| Grip Range | 0.236 – 0.335 " |
| Hole Size | 0.193 – 0.201 " |
| Head Diameter | 0.375 " |
| Head Height | 0.070 " |
| Body Length | 0.730 " |
| Shear Strength | 1,236 lb |
| Tensile Strength | 1,124 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 5.24 lb |
