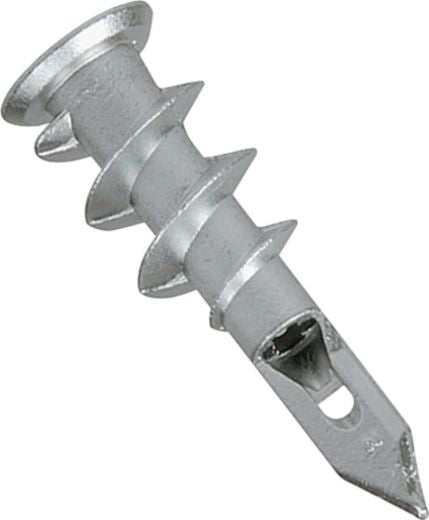

Self-Drilling Wall Anchor, Steel, Die-Cast Zinc Finish 1-5/8"
(Pack of
25)
• One-piece anchor for mounting to drywall
• No pre-drilling or hole preparation
• Installs with little effort, using a #2 or #3 Phillips screwdriver or Power Driver
• Made from 100% zinc, die-cast for exceptional corrosion resistance
• Bugle head seats flush and is easily hidden behind brackets, fixtures and electronic devices
• Versatile internal core design allows use of No. 6 or No. 8 sheet metal screws and No. 6, No. 7 or No. 8 drywall screws

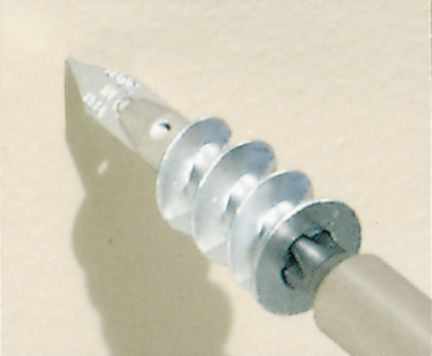

1. Place #2 Phillips screwdriver in recess of E-Z Anchor.

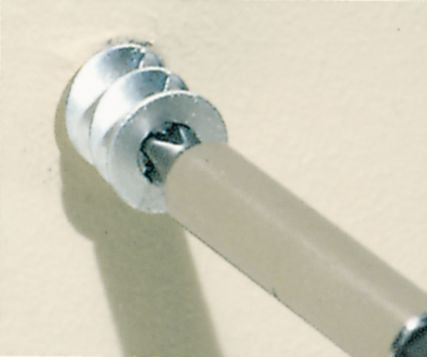

2. Drive E-Z Anchor into wall until flush with surface.

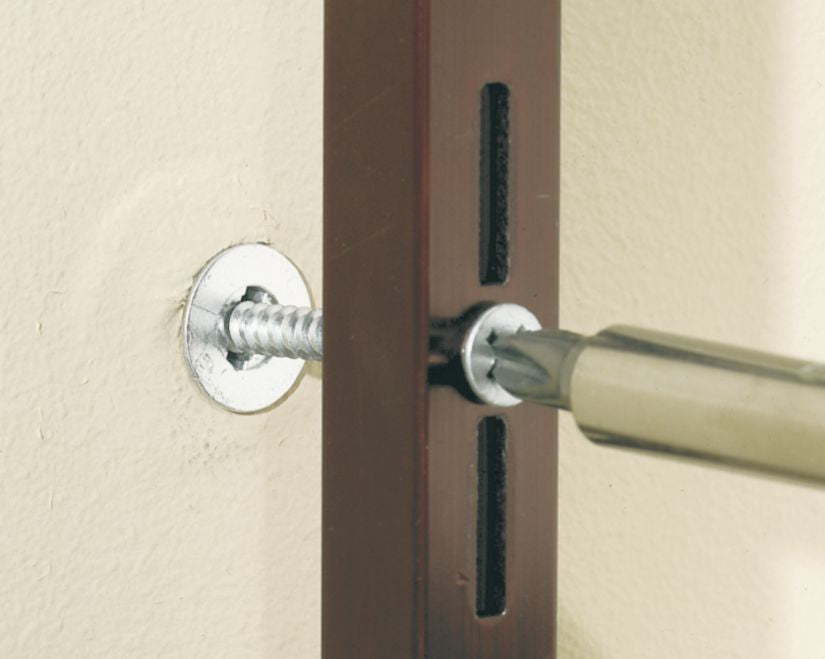

3. Place fixture over anchor, and drive screw with screwdriver.

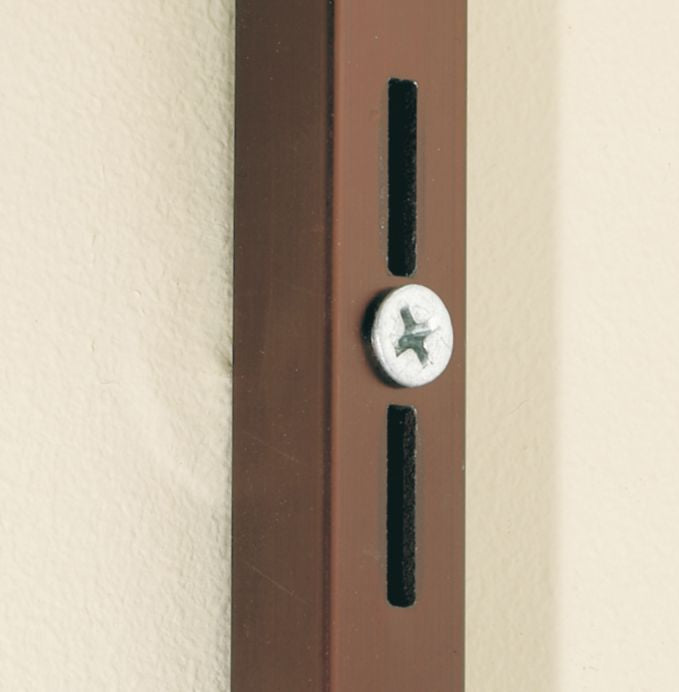

4. Tighten fixture into place. (Minimum of 1" thread engagement is recommended for anchor.)
NOTE: Screw length is determined by adding 1" to the thickness of the fixture to be attached.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 6-40
Frequently Bought Together
Wing-Type Toggle Bolt Anchor Steel #6-32 x 3"
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel 1/4-20 x 3"
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 3/16 x 1-3/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel 1/4-20 x 4"
Couldn't load pickup availability
Tamper-Proof Nail Drive Anchor Steel 1/4 x 1-1/2"
Couldn't load pickup availability
Tamper-Proof Nail Drive Anchor Steel 1/4 x 2"
Couldn't load pickup availability
Product Description
• One-piece anchor for mounting to drywall• No pre-drilling or hole preparation
• Installs with little effort, using a #2 or #3 Phillips screwdriver or Power Driver
• Made from 100% zinc, die-cast for exceptional corrosion resistance
• Bugle head seats flush and is easily hidden behind brackets, fixtures and electronic devices
• Versatile internal core design allows use of No. 6 or No. 8 sheet metal screws and No. 6, No. 7 or No. 8 drywall screws
1. Place #2 Phillips screwdriver in recess of E-Z Anchor.
2. Drive E-Z Anchor into wall until flush with surface.
3. Place fixture over anchor, and drive screw with screwdriver.
4. Tighten fixture into place. (Minimum of 1" thread engagement is recommended for anchor.)
NOTE: Screw length is determined by adding 1" to the thickness of the fixture to be attached.
Technical Specifications
| Item#: | 95096 |
|---|---|
| Type | Wall Anchor |
| Material | Steel |
| Pullout Ultimate Average Lbs.Drywall Thickness 5/8" | 75 |
| Shear Ultimate Average Lbs.Drywall Thickness 1/2" | 150 lb |
| Shear Ultimate Average Lbs.Drywall Thickness 3/8", 1/2", 5/8" | 3/8" - 135 Lbs., 1/2" - 150 Lbs., 5/8" - 200 Lbs. lb |
| Pullout Ultimate Average Lbs.Drywall Thickness 3/8", 1/2", 5/8" | 3/8" - 40 Lbs., 1/2" - 50 Lbs., 5/8" - 75 Lbs. |
| Pullout Ultimate Average Lbs.Drywall Thickness 1/2" | 50 |
| Pullout Ultimate Average Lbs. | 75 |
| Shear Ultimate Average | 200 lb |
| Shear Ultimate Average Lbs.Drywall Thickness 5/8" | 200 lb |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.33 lb |
