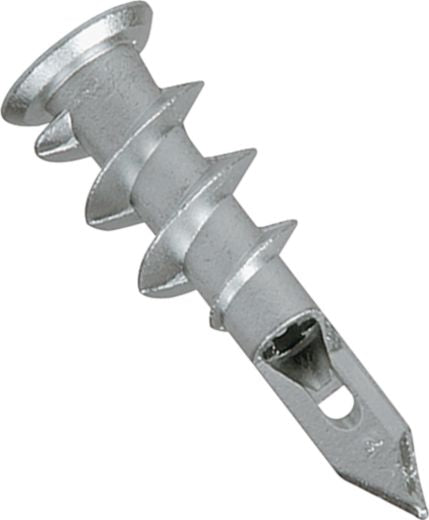

Mini Self-Drilling Wall Anchor, Steel, Die-Cast Zinc Finish, 1-1/4"
(Pack of
25)
SKU:98669 Item#: 98669
• One-piece anchor for mounting to drywall
• No pre-drilling or hole preparation
• Installs with little effort, using a #2 or #3 Phillips screwdriver or Power Driver
• Made from 100% zinc, die-cast for exceptional corrosion resistance
• Bugle head seats flush and is easily hidden behind brackets, fixtures and electronic devices
• Versatile internal core design allows use of No. 6 or No. 8 sheet metal screws and No. 6, No. 7 or No. 8 drywall screws

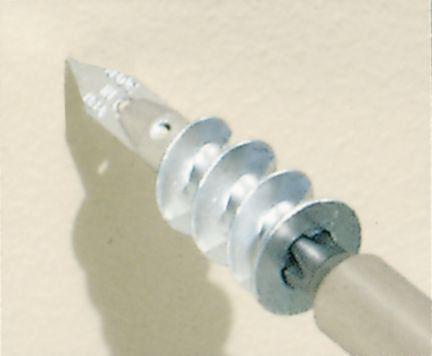

1. Place #2 Phillips screwdriver in recess of E-Z Anchor.

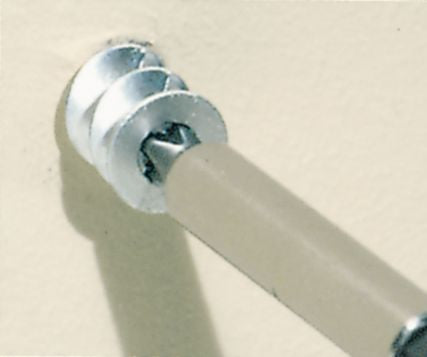

2. Drive E-Z Anchor into wall until flush with surface.

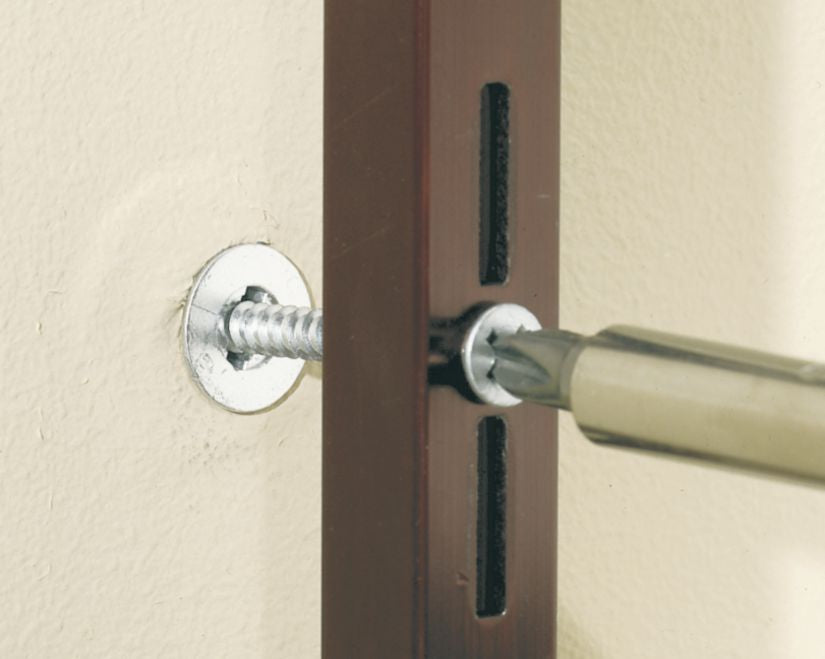

3. Place fixture over anchor, and drive screw with screwdriver.

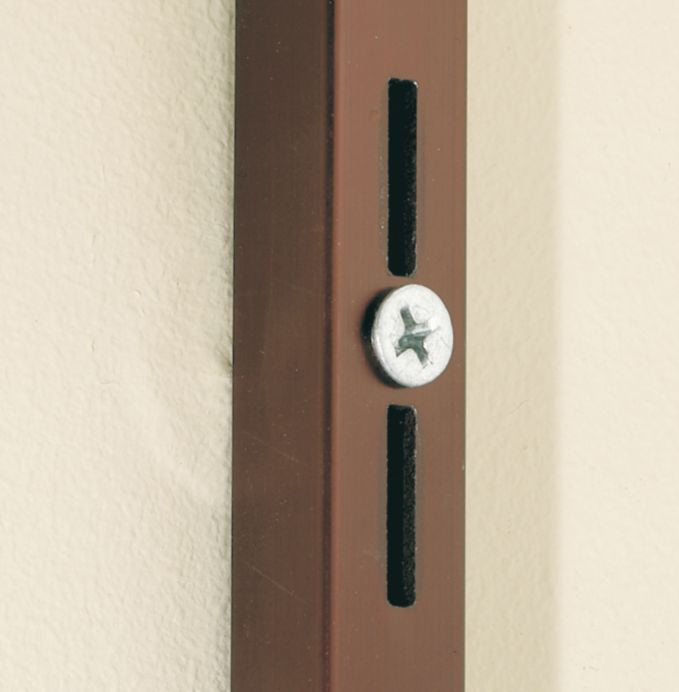

4. Tighten fixture into place. (Minimum of 1" thread engagement is recommended for anchor.)
NOTE: Screw length is determined by adding 1" to the thickness of the fixture to be attached.
Couldn't load pickup availability
Catalog page#: 6-40
Frequently Bought Together
SNAPTOGGLE® Toggle Bolt Anchor 1/4-20
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 1/4 x 1-3/4"
Couldn't load pickup availability
Conical Screw Anchor Plastic #14 to #16 x 1-3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Conical Screw Anchor Plastic #14 to #16 x 1-3/8"
Couldn't load pickup availability
SNAPTOGGLE® Toggle Bolt Anchor 3/16-24
Couldn't load pickup availability
Conical Screw Anchor Plastic #8 to #10 x 7/8"
Couldn't load pickup availability
Product Description
• One-piece anchor for mounting to drywall• No pre-drilling or hole preparation
• Installs with little effort, using a #2 or #3 Phillips screwdriver or Power Driver
• Made from 100% zinc, die-cast for exceptional corrosion resistance
• Bugle head seats flush and is easily hidden behind brackets, fixtures and electronic devices
• Versatile internal core design allows use of No. 6 or No. 8 sheet metal screws and No. 6, No. 7 or No. 8 drywall screws
1. Place #2 Phillips screwdriver in recess of E-Z Anchor.
2. Drive E-Z Anchor into wall until flush with surface.
3. Place fixture over anchor, and drive screw with screwdriver.
4. Tighten fixture into place. (Minimum of 1" thread engagement is recommended for anchor.)
NOTE: Screw length is determined by adding 1" to the thickness of the fixture to be attached.
Technical Specifications
| Item#: | 98669 |
|---|---|
| Type | Wall Anchor |
| Material | Steel |
| Pullout Ultimate Average Lbs.Drywall Thickness 5 / 8" | 50 |
| Shear Ultimate Average Lbs.Drywall Thickness 1 / 2" | 110 lb |
| Shear Ultimate Average Lbs.Drywall Thickness 3 / 8" | 3/8" - 90 Lbs., 1/2" - 110 Lbs., 5/8" - 140 Lbs. lb |
| Pullout Ultimate Average Lbs.Drywall Thickness 3 / 8" | 3/8" - 30 Lbs., 1/2" - 40 Lbs., 5/8" - 50 Lbs. |
| Pullout Ultimate Average Lbs.Drywall Thickness 1 / 2" | 40 |
| Pullout Ultimate Average Lbs. | 50 |
| Shear Ultimate Average | 140 lb |
| Shear Ultimate Average Lbs.Drywall Thickness 5 / 8" | 140 lb |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
