Home Anchors SNAPTOGGLE® Toggle Bolt Anchor 3/16-24
Anchors
TOGGLER® SNAPTOGGLE® Toggle Bolt Anchors

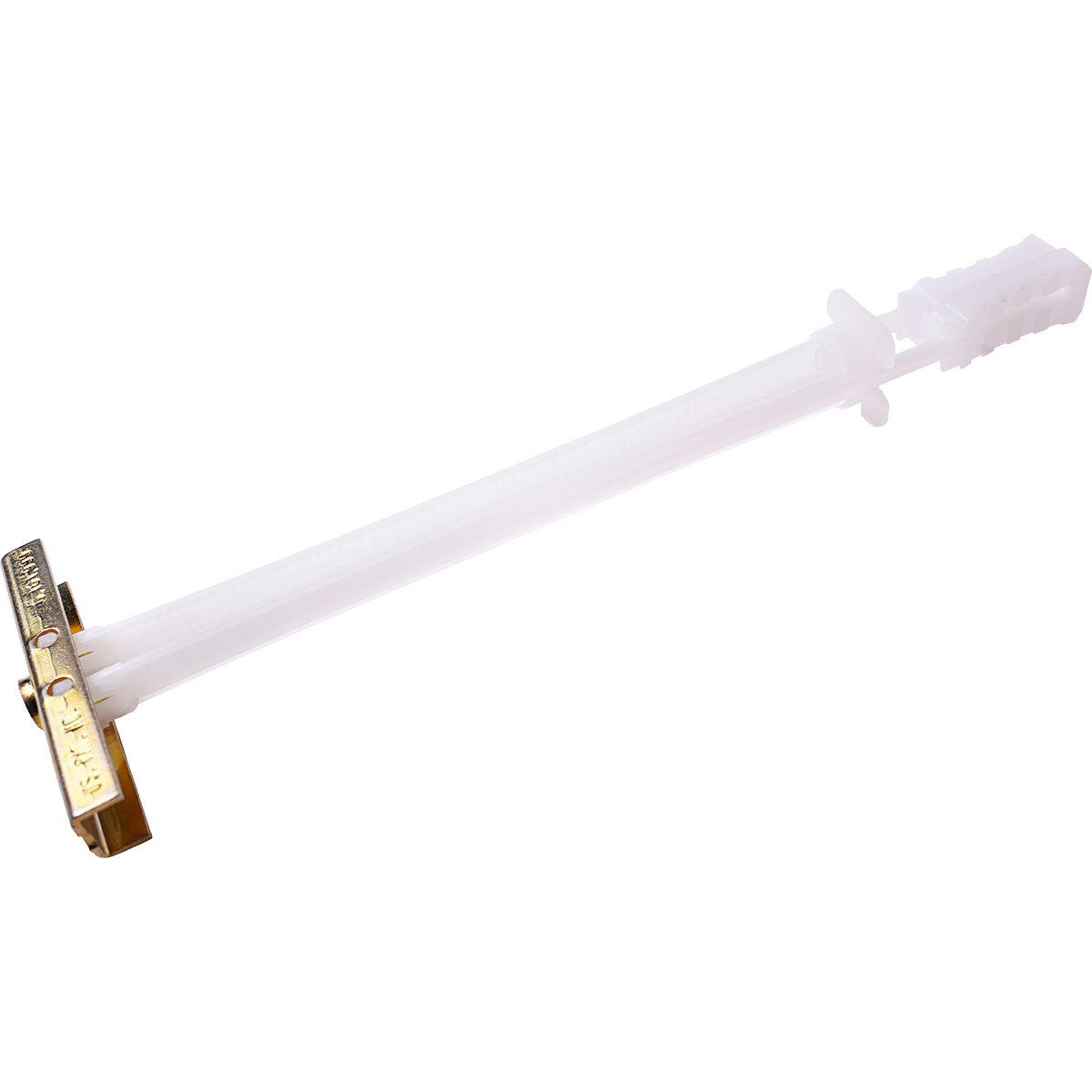

SNAPTOGGLE® Toggle Bolt Anchor, 1/2" Drill Size, 3/16-24
(Pack of 25)

Item#: 90917

Toggler®

• Three times faster than conventional toggle bolts
• Requires a smaller pilot hole and uses a shorter bolt
• Stays in place with or without a bolt
• Heads won’t fall behind wall
• Wall or ceiling thickness range: 3/8" – 2-1/2"
• Minimum bolt length: Fixture thickness + wall or ceiling thickness + 1/2"
• Minimum clearance behind wall: 1-7/8"
Tests are ultimate load. However, industry safety standards recommend 1/4 of the value for actual application. Age and condition of the material and the screw size will cause tensile strength to vary.Toggler® is a registered trademark of Mechanical Plastics Corp.

Read More
Check Availability

Catalog page#: 6-37

Frequently Bought Together


Wing Type Toggle Bolt Steel #10-24 x 3"

Item#: 91648

ALLIGATOR® Anchor Nylon #6 to #10

Item#: 62627

Mini Self-Drilling Wall Anchor Steel 1-1/4"

Item#: 98669

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446

SAE Flat Washer Thru-Hardened Steel 3/8"

Item#: 88437

SAE J995C Locknut with Nylon Insert Grade 8 1/4-20

Item#: 53979

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152

Self-Drilling Standard Wall Anchor Nylon #6 to #10

Item#: 97994

Wing-Type Toggle Bolt Anchor Steel #6-32 x 2"

Item#: 25140

ALLIGATOR® Anchor Nylon #4 to #10

Item#: 62626

Product Description

• Three times faster than conventional toggle bolts
• Requires a smaller pilot hole and uses a shorter bolt
• Stays in place with or without a bolt
• Heads won’t fall behind wall
• Wall or ceiling thickness range: 3/8" – 2-1/2"
• Minimum bolt length: Fixture thickness + wall or ceiling thickness + 1/2"
• Minimum clearance behind wall: 1-7/8"
Tests are ultimate load. However, industry safety standards recommend 1/4 of the value for actual application. Age and condition of the material and the screw size will cause tensile strength to vary.Toggler® is a registered trademark of Mechanical Plastics Corp.

Technical Specifications

Item#: 90917
Type Toggle Bolt Anchor
Size #10-24
Diameter 3/16 "
Thread Coarse
Thread Pitch 24 tpi
Drill Size 1/2 "
Tensile Proof Test Load In Concrete 714 lb
Shear Proof Test Load 670 lb
Tensile Proof Test Load 645 lb
Bolt Size #10-24 "
UNSPSC #: 31162103
TAA Compliant: Yes
Weight: 0.86 lb
