Home Anchors Wing-Type Toggle Bolt Anchor Steel #10-24 x 3"
Anchors

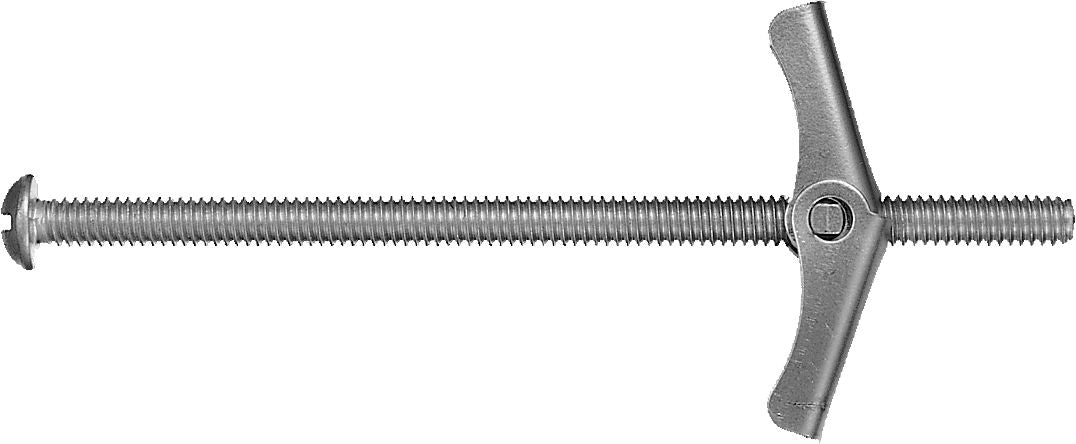

Wing-Type Toggle Bolt Anchor Steel #10-24 x 3"
(Pack of 50.0)

Lawson Products

Toggle Bolt Assemblies
• Better spring action and more thread engagement
1. Insert bolt through item to be fastened, thread on wings, then fold wings completely back and insert through hole until wings spring open.
2. Pull back on assembly to hold wings against inside wall – this prevents the wings from spinning while tightening bolt. Tighten bolt firmly with screwdriver.

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 6-37

Frequently Bought Together


Conical Screw Anchor Kit Plastic 101Pcs

Item#: 94880

E-Z Anchor Kit Steel 41Pcs

Item#: 95907

Mini Self-Drilling Wall Anchor Steel 1-1/4"

Item#: 98669

SAE Flat Washer Thru-Hardened Steel 5/8"

Item#: FA88441

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88447

SAE Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88437

Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88445

Wing-Type Toggle Bolt Anchor Steel 3/8-16 x 6"

Item#: 25160

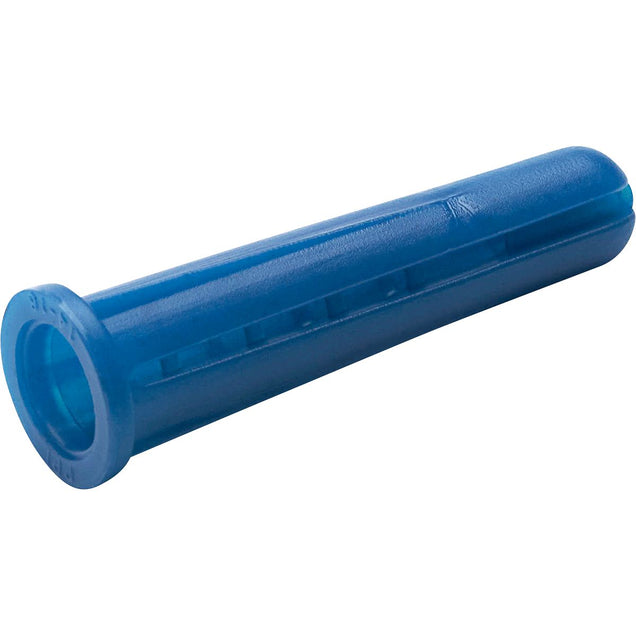

Tubular Anchor Plastic Blue #13 to #15

Item#: 25118

Self-Drilling Wallboard Mini Anchor Nylon #6

Item#: 27820

Product Description

Toggle Bolt Assemblies
• Better spring action and more thread engagement
1. Insert bolt through item to be fastened, thread on wings, then fold wings completely back and insert through hole until wings spring open.
2. Pull back on assembly to hold wings against inside wall – this prevents the wings from spinning while tightening bolt. Tighten bolt firmly with screwdriver.

Technical Specifications

Item#: 25145
Length 3 "
Type Wall Anchor
Size 3/16X3 "
Diameter 3/16 "
Material Steel
Head Style Mushroom
Finish Zinc
Thread Pitch 24
Drill Size 1/2 "
Anchor Size 3/16 x 3 "
Tensile Proof Test Load In Concrete 350 lb
Shear Proof Test Load 350 lb
Bolt Size 10-24 (3/16") x 3 "
UNSPSC #: 31162103
TAA Compliant: No
Weight: 1.69 lb
