Home Clamps/Banding Spring Loaded T-Bolt Hose Clamp, Dia: 2.06 - 2.38"
Clamps/Banding

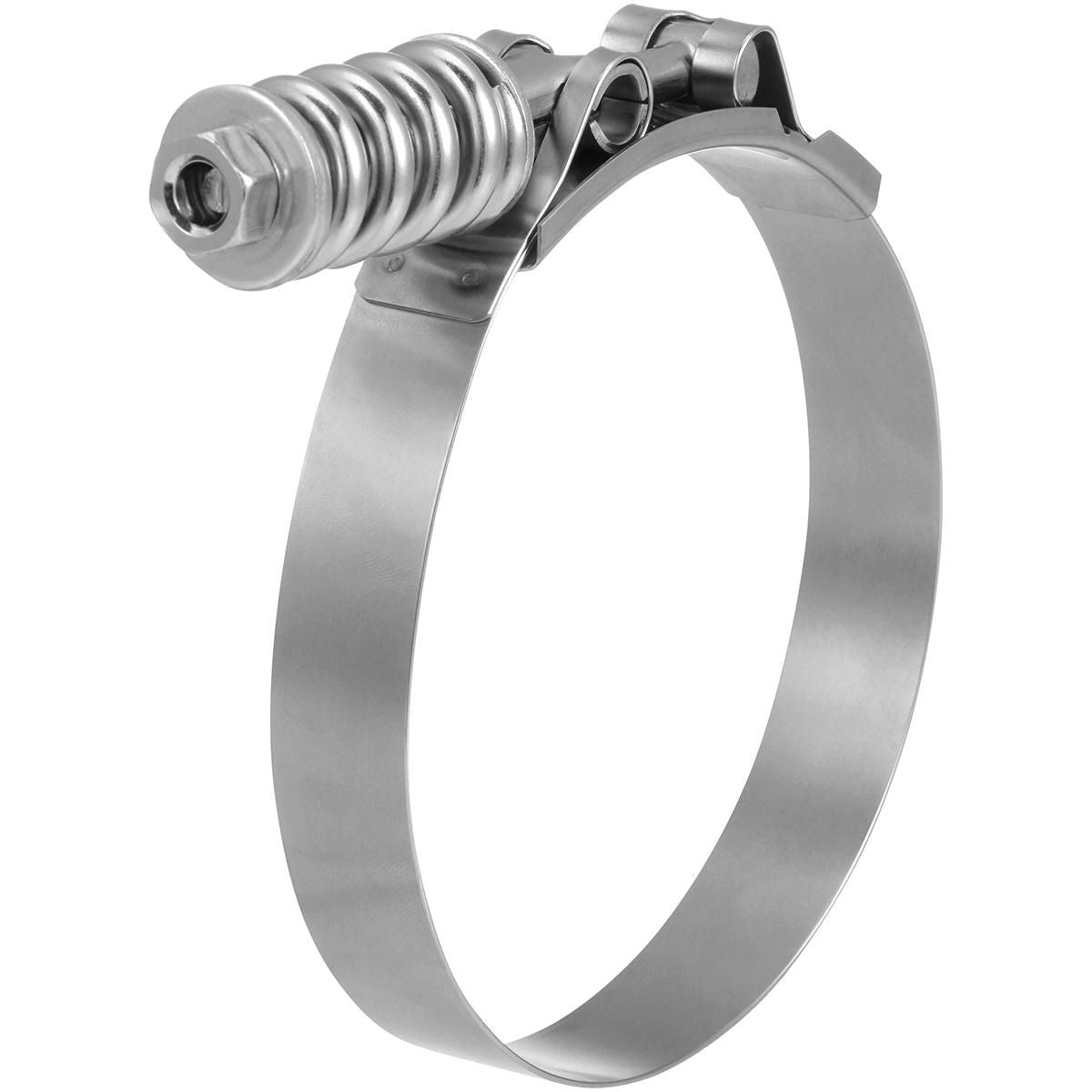

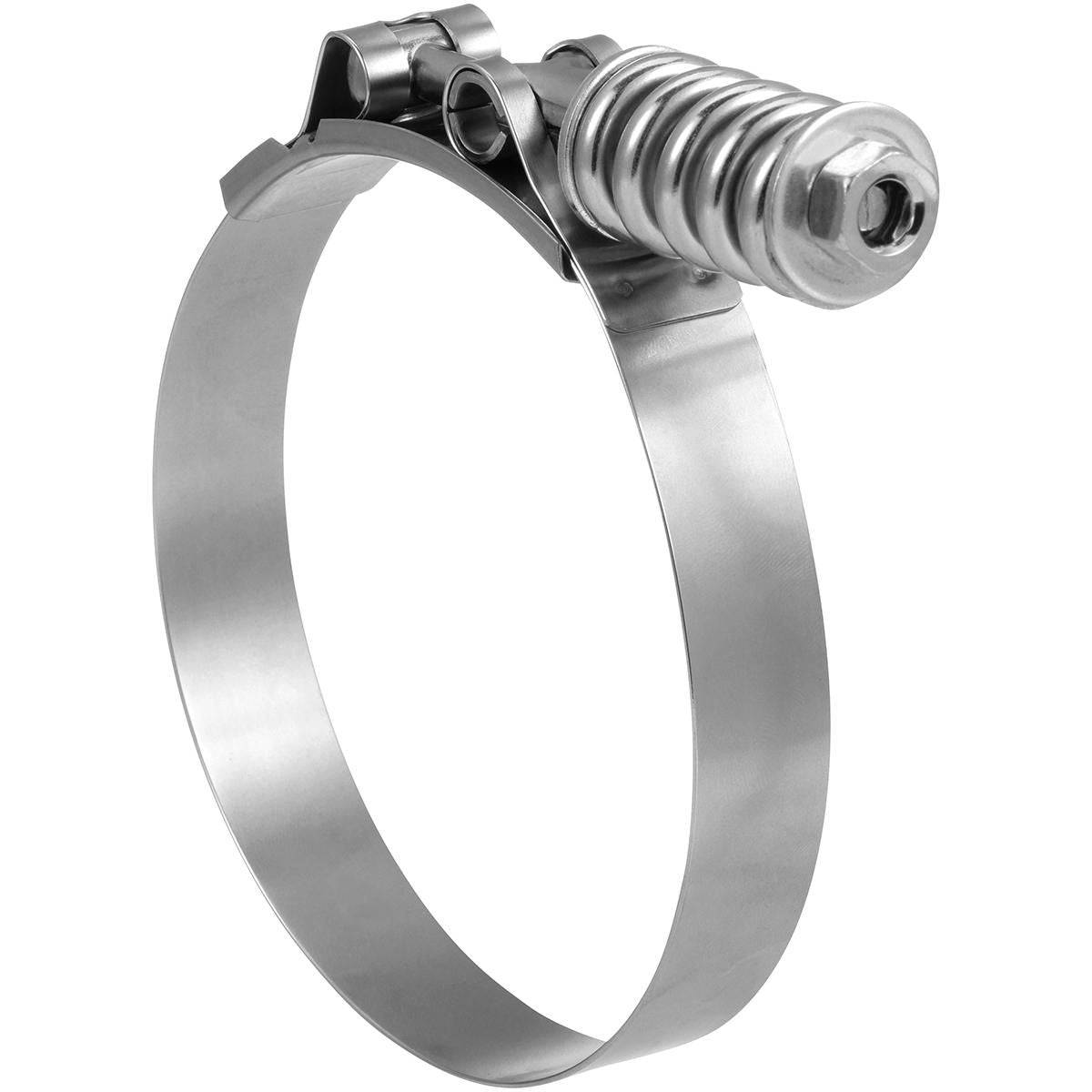

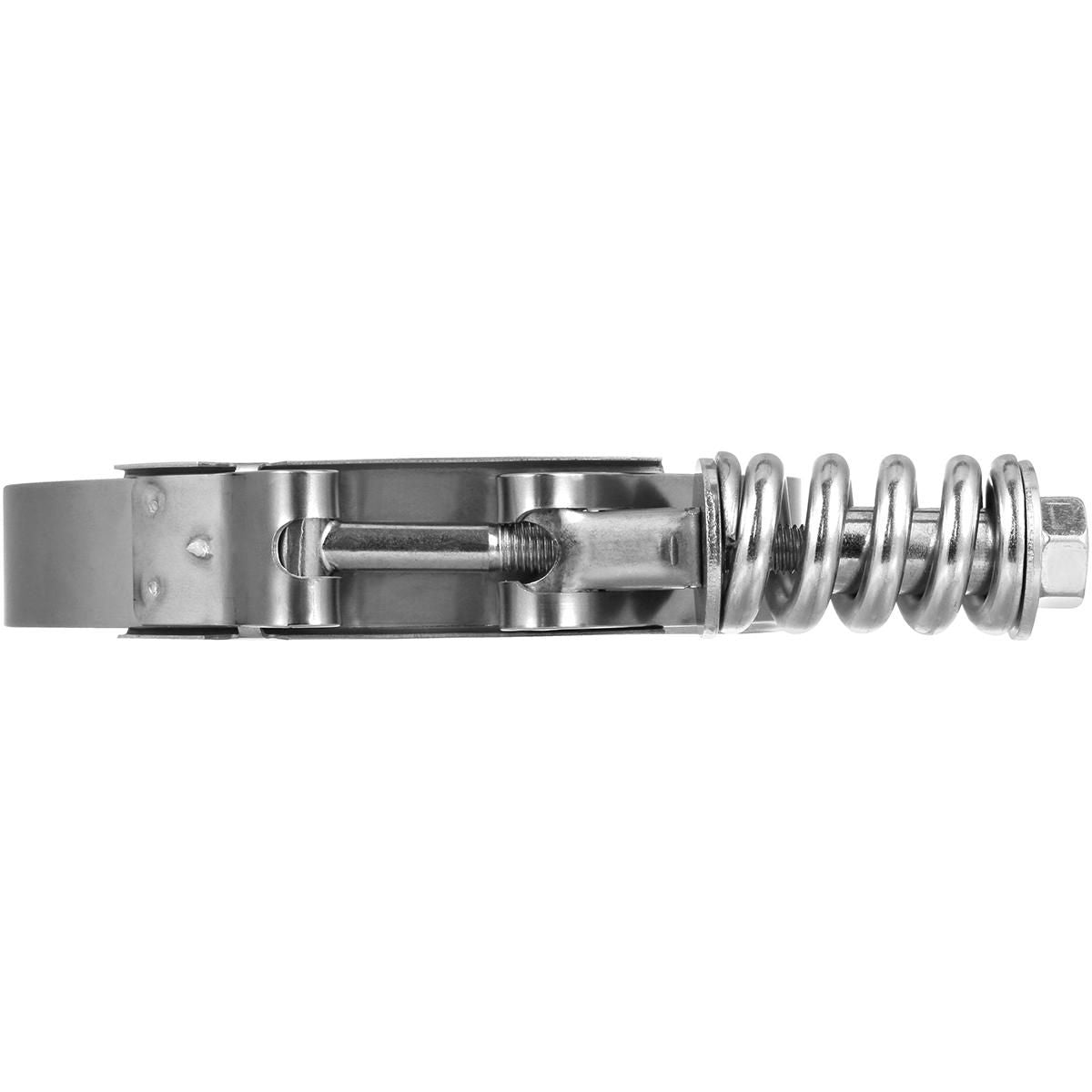

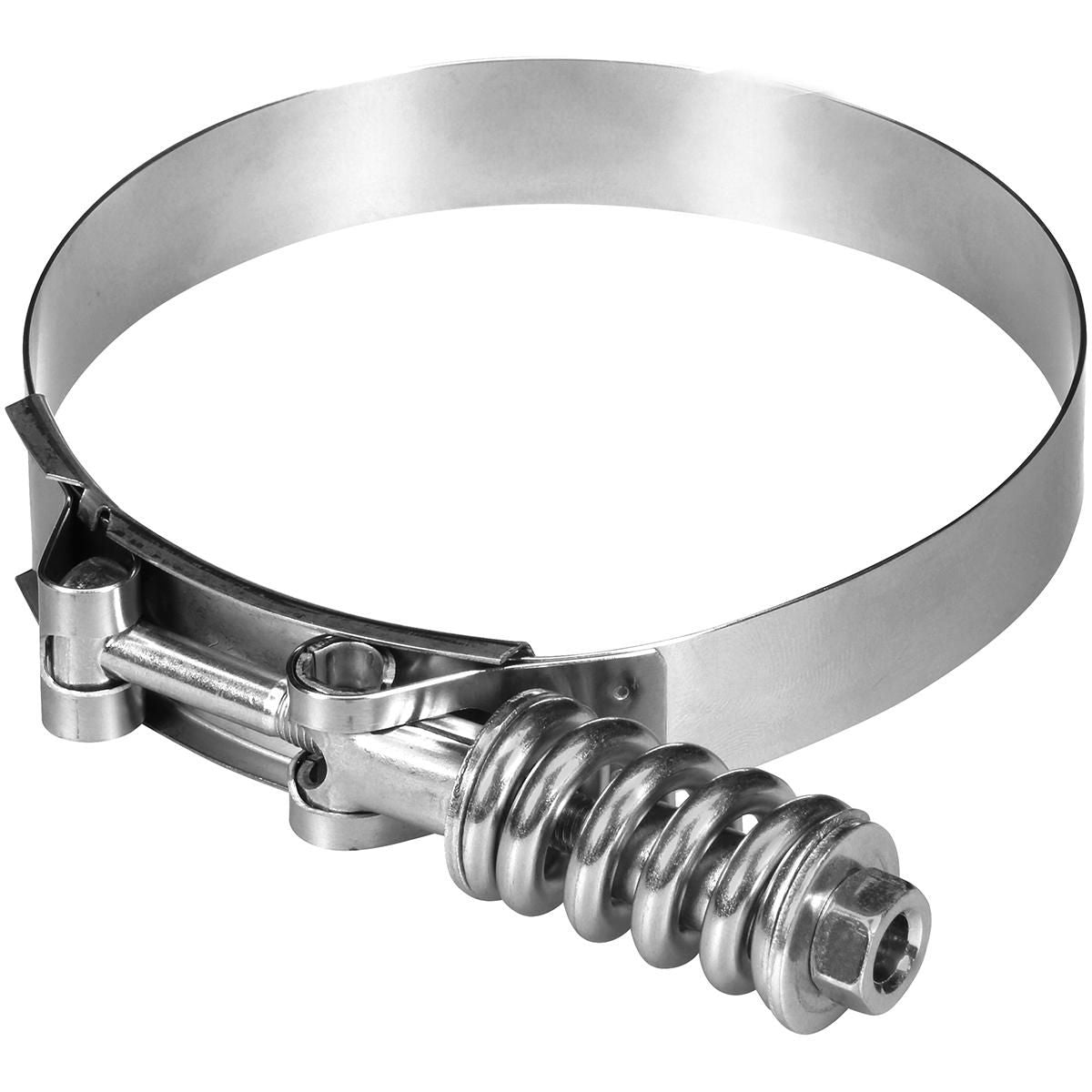

Constant Tension Spring Loaded T-Bolt Hose Clamp, Stainless Steel, Diameter: 2.06 - 2.38 in
(Pack of 5)

Item#: 1609065

Lawson

• 304 Series stainless band, bridge, cap, wrapper and housing
• Spring and washer with plated carbon steel t-bolt, nut, spring and washer
• Heavy-duty spring for constant-tension
• Special application sizes for charge-air-after cooled engine systems - CAC Hose
• 3/4" x 0.031" band for superior coverage
• Meets SAE Specification J1508 Type SLTB
• Recommended torque: 60 in./lbs.
• For industrial, automotive and marine applications

Read More
Check Availability

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Catalog page#: 22-5

Frequently Bought Together


Non-Perforated Clamp 316 SS #6 1/2 to 13/16"

Item#: 58833

Super 77 Hose Clamp SS 3/4 to 1-1/2"

Item#: 85498

Hose Clamp 304 SS 1/2 to 29-32"

Item#: 87140

DOT Elbow Male Nylon 1/4 x 1/8-27

Item#: 91794

Hose Clamp 304 SS 1-13/16 to 2-3/4"

Item#: 87142

Hose Clamp 304 SS 3/4 to 1-3/4"

Item#: 86728

Non-Perforated Clamp 316 SS #6 1/2 to 13/16"

Item#: 58833

Super 77 Hose Clamp SS 3/4 to 1-1/2"

Item#: 85498

Hose Clamp 304 SS 1/2 to 29-32"

Item#: 87140

DOT Compression Connector Male Brass 3/8 x 1/4"

Item#: 84268

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 57504

Z Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88445

Vision Pro Super

Item#: DY21061040

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

Product Description

• 304 Series stainless band, bridge, cap, wrapper and housing
• Spring and washer with plated carbon steel t-bolt, nut, spring and washer
• Heavy-duty spring for constant-tension
• Special application sizes for charge-air-after cooled engine systems - CAC Hose
• 3/4" x 0.031" band for superior coverage
• Meets SAE Specification J1508 Type SLTB
• Recommended torque: 60 in./lbs.
• For industrial, automotive and marine applications

Technical Specifications

Item#: 1609065
Category Spring Loaded T-Bolt Hose Clamp
Applications Industrial, Automotive, Fleet
SAE Size 38
Material 300 Series Stainless Steel Band and Plated Steel T-Bolt
Size 2-1/16-2-3/8 "
Minimum Diameter 2-1/16 "
Maximum Diameter 2-3/8 "
Width 3/4 "
Thickness 0.031 "
UNSPSC #: 31162900
TAA Compliant: No
Weight: 0.357 lb
