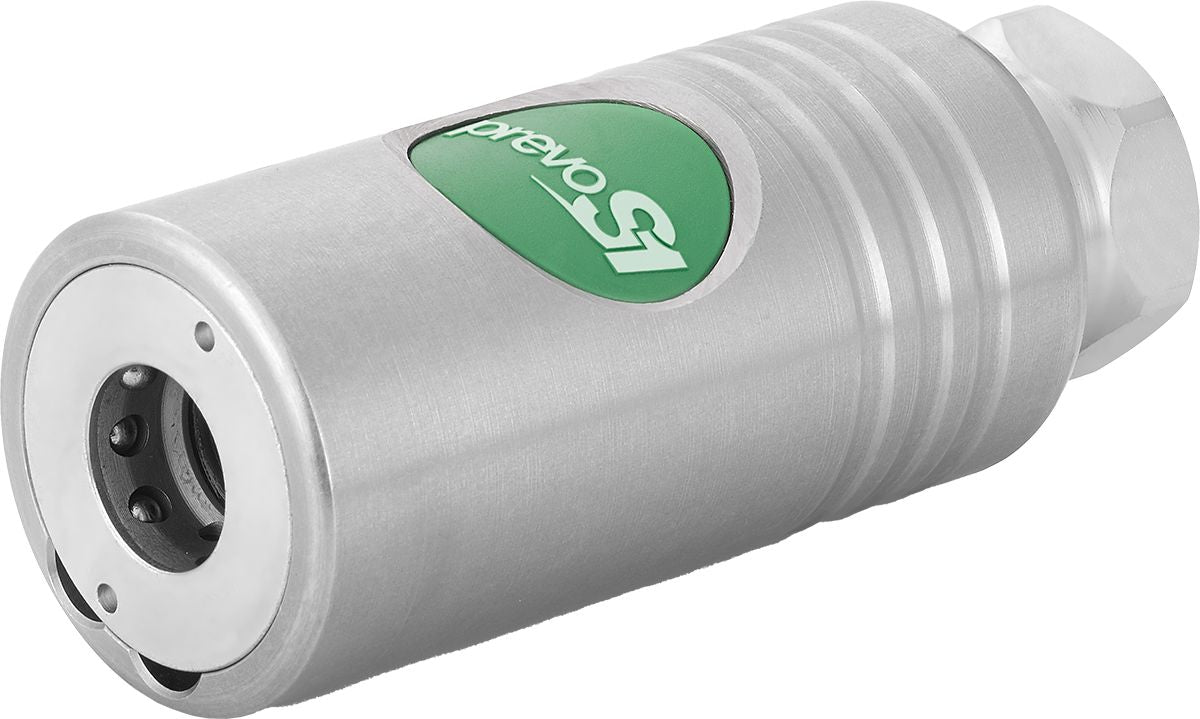

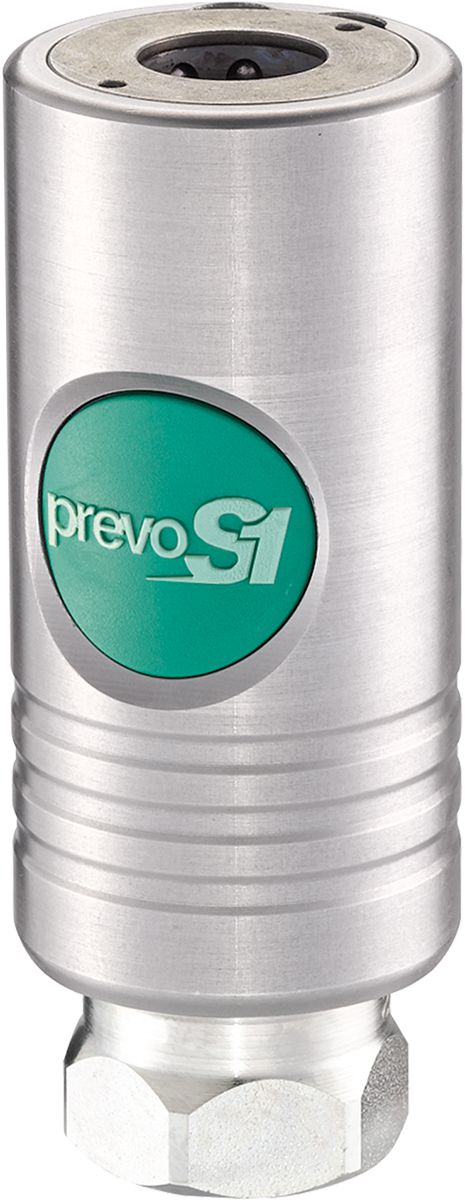

Stainless Steel High Flow Safety Push-Button Safety Coupler 1/2" Body x 1/2" FNPT
(Pack of
1)
SKU:1637133 Item#: 1637133
The prevoS1 coupling meets the top level of quality standards required in the professional industry. Prevost prevoS1 couplers are synonymous with top of the line quality, extended service life, advanced technology, safety and efficiency. The prevoS1 couplings are unrivalled in the market with quality, patent and protected technology.
• Stainless steel body material: tough, high resistance couplings suited to the most challenging conditions for which this type of product may be required, including violent impacts, crushing, dirty or damp environments, etc.
• One push control to decompress the system and disconnect in complete safety: eliminates hose whip to protect the user, surrounding tools and equipment (ISO 4414 standard)
• Quick and effortless coupling: easy to connect, with no risk of damaging the internal mechanism
• Swivel body creates a quick assembly and optimal positioning: cost savings from increased productivity and decreased labor requirements
• Anti-static: conducts electricity to avoid problems related to static electricity (ex. dust attracted to paint/polish or electronic work surfaces)
• Resistant to abrasion, vibrations, corrosion, impacts and crushing: reinforced Polymer body is capable of withstanding the harsh conditions frequently found in production environments
• Color coded buttons make the wide selection of international profiles easy to identify: this system reduces the risk of connection errors which may cause damages or accidents
• ATEX classification 1 and 2 (gas) and 21 and 22 (dust)
• Silicone free
• Anti-static construction
• Stainless steel body (17% chromium)
• Nitrile NBR gasket
• Pressure range: 29 to 232 psi (not suitable for vacuum)
• Temperature: +5°F to +158°F (-15°C to 70°C)
• Other components: steel or aluminum with RoHS compliant anti-corrosion treatment
Applications
• All connections
• Tough locations
• Harsh environments
• Maintenance of industrial vehicles
• Heavy industry and manufacturing
• Agriculture
• Public works
• Mines and quarries
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: N9
Frequently Bought Together
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose End Brass 3/8 x 3/8"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Hose Mender Brass 1/2 x 1/2"
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
1/4" - 3/4" Cryonitride Spiral Fluted Step Drill - 3/8" Shank
Couldn't load pickup availability
12" Auto-Adjust Pliers
Couldn't load pickup availability
10" Forman's Favorite Heavy-Duty Copper & Aluminum Cable Cutter Pliers
Couldn't load pickup availability
Hose End Brass 3/8 x 3/8"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Hose Mender Brass 1/2 x 1/2"
Couldn't load pickup availability
Cross Linked Primary Wire 14 AWG 100' Black
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Red
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Red
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
The prevoS1 coupling meets the top level of quality standards required in the professional industry. Prevost prevoS1 couplers are synonymous with top of the line quality, extended service life, advanced technology, safety and efficiency. The prevoS1 couplings are unrivalled in the market with quality, patent and protected technology.• Stainless steel body material: tough, high resistance couplings suited to the most challenging conditions for which this type of product may be required, including violent impacts, crushing, dirty or damp environments, etc.
• One push control to decompress the system and disconnect in complete safety: eliminates hose whip to protect the user, surrounding tools and equipment (ISO 4414 standard)
• Quick and effortless coupling: easy to connect, with no risk of damaging the internal mechanism
• Swivel body creates a quick assembly and optimal positioning: cost savings from increased productivity and decreased labor requirements
• Anti-static: conducts electricity to avoid problems related to static electricity (ex. dust attracted to paint/polish or electronic work surfaces)
• Resistant to abrasion, vibrations, corrosion, impacts and crushing: reinforced Polymer body is capable of withstanding the harsh conditions frequently found in production environments
• Color coded buttons make the wide selection of international profiles easy to identify: this system reduces the risk of connection errors which may cause damages or accidents
• ATEX classification 1 and 2 (gas) and 21 and 22 (dust)
• Silicone free
• Anti-static construction
• Stainless steel body (17% chromium)
• Nitrile NBR gasket
• Pressure range: 29 to 232 psi (not suitable for vacuum)
• Temperature: +5°F to +158°F (-15°C to 70°C)
• Other components: steel or aluminum with RoHS compliant anti-corrosion treatment
Applications
• All connections
• Tough locations
• Harsh environments
• Maintenance of industrial vehicles
• Heavy industry and manufacturing
• Agriculture
• Public works
• Mines and quarries
Technical Specifications
| Item#: | 1637133 |
|---|---|
| Manufacturer Model #: | ESI 111203 |
| Style | High Flow |
| Body Size | 1/2 " |
| Thread Style | Female NPT |
| Thread Size | 1/2-14 " |
| Working Pressure | 29 to 232 PSI |
| Material | Stainless Steel |
| Seal Material | Nitrile NBR o-ring |
| Standards | ISO 4414 |
| Flow | 142 SCFM |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
| Weight: | 1.03 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
