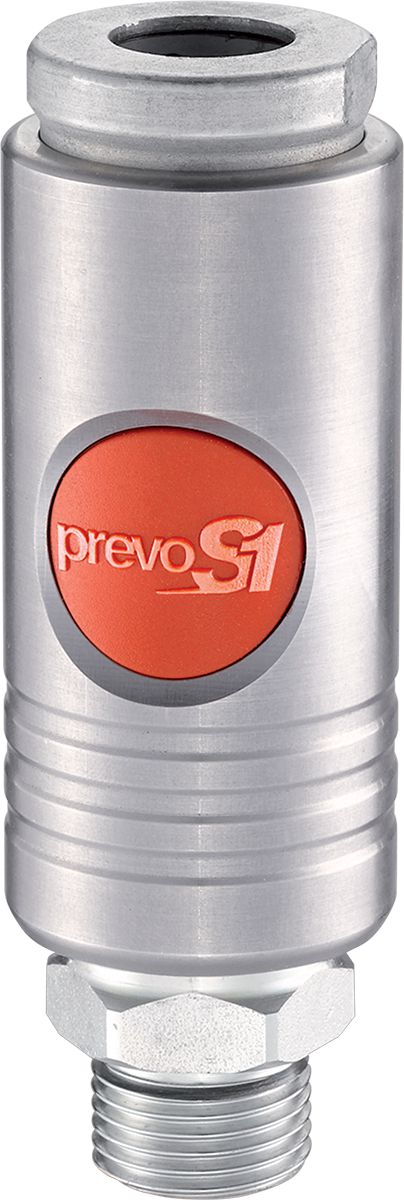

Stainless Steel Tru-Flate Safety Push-Button Safety Coupler 1/2" Body x 1/2" MNPT
(Pack of
1)
SKU:1637207 Item#: 1637207
The prevoS1 coupling meets the top level of quality standards required in the professional industry. Prevost prevoS1 couplers are synonymous with top of the line quality, extended service life, advanced technology, safety and efficiency. The prevoS1 couplings are unrivalled in the market with quality, patent and protected technology.
• Stainless steel body material: tough, high resistance couplings suited to the most challenging conditions for which this type of product may be required, including violent impacts, crushing, dirty or damp environments, etc.
• One push control to decompress the system and disconnect in complete safety: eliminates hose whip to protect the user, surrounding tools and equipment (ISO 4414 standard)
• Quick and effortless coupling: easy to connect, with no risk of damaging the internal mechanism
• Swivel body creates a quick assembly and optimal positioning: cost savings from increased productivity and decreased labor requirements
• Anti-static: conducts electricity to avoid problems related to static electricity (ex. dust attracted to paint/polish or electronic work surfaces)
• Resistant to abrasion, vibrations, corrosion, impacts and crushing: reinforced Polymer body is capable of withstanding the harsh conditions frequently found in production environments
• Color coded buttons make the wide selection of international profiles easy to identify: this system reduces the risk of connection errors which may cause damages or accidents
• ATEX classification 1 and 2 (gas) and 21 and 22 (dust)
• Silicone free
• Anti-static construction
• Stainless steel body (17% chromium)
• Nitrile NBR gasket
• Pressure range: 29 to 232 psi (not suitable for vacuum)
• Temperature: +5°F to +158°F (-15°C to 70°C)
• Other components: steel or aluminum with RoHS compliant anti-corrosion treatment
Applications
• All connections
• Tough locations
• Harsh environments
• Maintenance of industrial vehicles
• Heavy industry and manufacturing
• Agriculture
• Public works
• Mines and quarries
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: N9
Frequently Bought Together
Quick Disconnect Coupler Brass 3/8" x 3/8-18
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 3/4" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 3/8" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Brass Coupler With Steel Sleeve 1/4" x 1/4-18
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
DOT Compression Union Brass 1/4"
Couldn't load pickup availability
7" Straight Jaw Locking Pliers
Couldn't load pickup availability
M12™ FUEL™ HACKZALL® Reciprocating Saw Kit
Couldn't load pickup availability
10" Dual Jaw Adj and Pipe Wrench
Couldn't load pickup availability
Hose Barb Brass 3/4" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 3/8" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Brass Coupler With Steel Sleeve 1/4" x 1/4-18
Couldn't load pickup availability
Plastic Covered Primary Wire 16 AWG 100' Yellow
Couldn't load pickup availability
Straight Barrel Battery Terminal 1/0 AWG Positive
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Blue
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
The prevoS1 coupling meets the top level of quality standards required in the professional industry. Prevost prevoS1 couplers are synonymous with top of the line quality, extended service life, advanced technology, safety and efficiency. The prevoS1 couplings are unrivalled in the market with quality, patent and protected technology.• Stainless steel body material: tough, high resistance couplings suited to the most challenging conditions for which this type of product may be required, including violent impacts, crushing, dirty or damp environments, etc.
• One push control to decompress the system and disconnect in complete safety: eliminates hose whip to protect the user, surrounding tools and equipment (ISO 4414 standard)
• Quick and effortless coupling: easy to connect, with no risk of damaging the internal mechanism
• Swivel body creates a quick assembly and optimal positioning: cost savings from increased productivity and decreased labor requirements
• Anti-static: conducts electricity to avoid problems related to static electricity (ex. dust attracted to paint/polish or electronic work surfaces)
• Resistant to abrasion, vibrations, corrosion, impacts and crushing: reinforced Polymer body is capable of withstanding the harsh conditions frequently found in production environments
• Color coded buttons make the wide selection of international profiles easy to identify: this system reduces the risk of connection errors which may cause damages or accidents
• ATEX classification 1 and 2 (gas) and 21 and 22 (dust)
• Silicone free
• Anti-static construction
• Stainless steel body (17% chromium)
• Nitrile NBR gasket
• Pressure range: 29 to 232 psi (not suitable for vacuum)
• Temperature: +5°F to +158°F (-15°C to 70°C)
• Other components: steel or aluminum with RoHS compliant anti-corrosion treatment
Applications
• All connections
• Tough locations
• Harsh environments
• Maintenance of industrial vehicles
• Heavy industry and manufacturing
• Agriculture
• Public works
• Mines and quarries
Technical Specifications
| Item#: | 1637207 |
|---|---|
| Manufacturer Model #: | USI 111253 |
| Style | Tru-Flate |
| Body Size | 1/2 " |
| Thread Style | Male NPT |
| Thread Size | 1/2-14 " |
| Working Pressure | 29 to 232 PSI |
| Material | Stainless Steel |
| Seal Material | Nitrile NBR o-ring |
| Standards | ISO 4414 |
| Flow | 120 SCFM |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
| Weight: | 1.17 lb |
