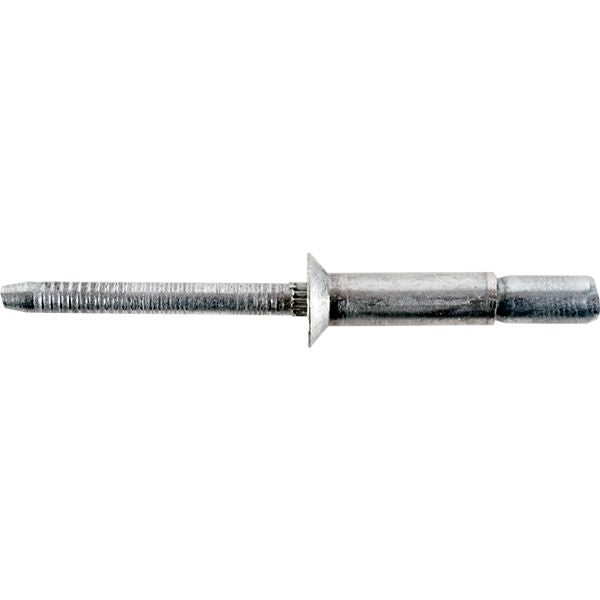

Structural Rivet Internal Lock Aluminum 3/16"
(Pack of
50.0)
100° Countersunk Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock insures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Ideal for applications where a flush appearance is required
• Standard nosepieces can be used to install Internal Locking Structural Rivets
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 7-16
Frequently Bought Together
Flat Washer 18-8 Stainless Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M6
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Nosepiece for 1543731 Rivet Tool 5/32"
Couldn't load pickup availability
Solid Rivet Universal Head Hard Aluminum 3/16"
Couldn't load pickup availability
Tigerbolt® Nosepiece for 1543732 Rivet Tool 3/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/4"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
StemLock® Rear-Flange Structural Rivet Steel 1/4"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 1/4"
Couldn't load pickup availability
Product Description
100° Countersunk Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock insures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Ideal for applications where a flush appearance is required
• Standard nosepieces can be used to install Internal Locking Structural Rivets
Technical Specifications
| Item#: | 1543650 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | 100° Countersunk Head |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 3/16 " |
| Grip Range | 0.125 – 0.331 " |
| Hole Size | 0.191 – 0.201 " |
| Drill Size | #10 |
| Head Diameter | 0.325 – 0.360 " |
| Head Height | 0.080 " |
| Body Length | 0.486 " |
| Shear Strength | 550 lb |
| Tensile Strength | 450 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.145 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
