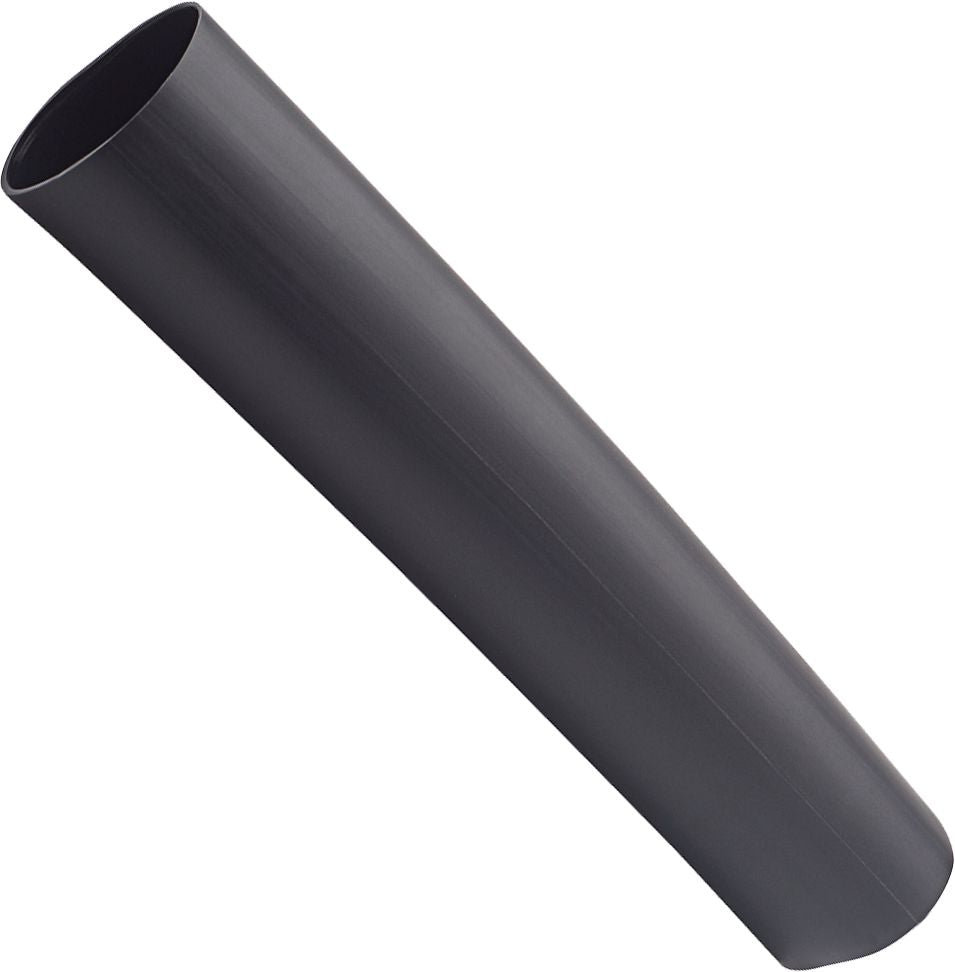

Tru-Shrink Heat Shrink Tubing, 2 to 4/0 AWG, Black, 1.5" Length, 1.1" ID Before and 0.375" ID After Shrinkage, 3:1 Shrink Ratio
(Pack of
5)
SKU:87744 Item#: 87744
Insulate and protect larger electrical wires with this heat shrink tubing. Designed to fit over thick electrical wires and ideal for applications like motor control, power distribution, and large appliance wiring. The tubing shrinks tightly around the wire to provide protection against moisture, dust, chemicals and other environmental factors that could cause damage. Manufactured for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present.
• 3:1 shrink ratio
• Heat-activated adhesive liner surrounds material and produces a watertight seal
• Non-corrosive with excellent fluid and fungus resistance – non-nutrient, inert
Pre-cut 1-1/2" lengths
For cable gauges 2 through 4/0
• Meets UL Flammability Test Specification 94V2 and UL Specification 486D
• Elongation: 425%
• Minimum tensile strength: 1,542 PSI
• Minimum dielectric strength: 275V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 194°F (90°C)
• Longitudinal change: 15% maximum, less than 5% typical
• Rated at 600V
• Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
Frequently Bought Together
MINI Fuse 30A Green
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Cable Seal Green 20-18 AWG 20A 12V
Couldn't load pickup availability
Heat Shrink Tubing 12 to 10 AWG Yellow
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Clear
Couldn't load pickup availability
Insulform Heat Shrink Tubing 16 to 14 AWG Black
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.35" ID 25'
Couldn't load pickup availability
Super 88 Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Rubber Grommet 3/4" ID
Couldn't load pickup availability
Product Description
Insulate and protect larger electrical wires with this heat shrink tubing. Designed to fit over thick electrical wires and ideal for applications like motor control, power distribution, and large appliance wiring. The tubing shrinks tightly around the wire to provide protection against moisture, dust, chemicals and other environmental factors that could cause damage. Manufactured for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present.• 3:1 shrink ratio
• Heat-activated adhesive liner surrounds material and produces a watertight seal
• Non-corrosive with excellent fluid and fungus resistance – non-nutrient, inert
Pre-cut 1-1/2" lengths
For cable gauges 2 through 4/0
• Meets UL Flammability Test Specification 94V2 and UL Specification 486D
• Elongation: 425%
• Minimum tensile strength: 1,542 PSI
• Minimum dielectric strength: 275V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 194°F (90°C)
• Longitudinal change: 15% maximum, less than 5% typical
• Rated at 600V
• Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 87744 |
|---|---|
| Type | Pre-Cut |
| Style | Heavy Wall |
| Wire Gauge Coverage | 2-4/0 AWG |
| Length | 1.5 " |
| Color | Black |
| I.D. Before Shrinkage | 1.10 " |
| I.D. After Shrinkage | .375 " |
| Shrink Ratio | 3 to 1 |
| Wall Thickness After Shrinkage | 0.120 " |
| Voltage Rating | 600 V |
| Temperature Rating | 194 °F |
| Elongation | 425 % |
| Tensile Strength | 1,542 PSI |
| Approvals | UL, CSA |
| Description | Pre-Cut Dual Wall Heat Shrink Tubing - Black |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
