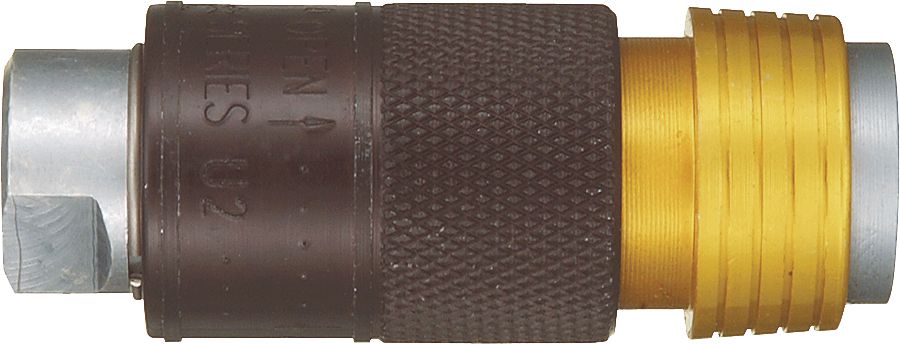

Universal Safety Air Coupler, Aluminum, 200PSI, Female NSPF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
Minimize the chance of hose whip. Safety venting allows coupling and uncoupling at zero pressure, reducing the tendency of hose whip. Coupler accepts Industrial Interchange, Tru-Flate, and ARO 210 Series plugs. Use only for applications where a light-duty coupler is called for, such as assembly lines, paint shops and wall manifolds. Operation is simple, just follow the direction of the “On/Off” arrow stamped on the black valve sleeve.
• Lightweight aluminum construction
• Corrosion-resistant hard coat anodized finish and airtight nitrile seals
• Knurled sleeve for gripping
• Maximum operating pressure: 200 PSIG
• Temperature range: –20°F to +200°F (–29°C to +93°C)
To operate air sleeve valve:1. Connect plug to coupler until coupler sleeve is engaged.2. Push and turn air sleeve valve towards coupler sleeve to turn on air flow.
Coupler size is important, since a coupler that is too small can act as a restriction in the air line, reducing both the pressure and volume of air reaching the end of the hose. It is generally recommended that the body size of the coupler be matched to the I.D. of the hose being used. Thus 1/4" I.D. hose should be fitted with 1/4" I.D. couplings. Generally speaking, 3/16" I.D. hose should be fitted with 1/4" couplings, while 5/16" I.D. hose may be fitted with either 1/4" or 3/8" couplings, depending on the volume and pressure required at the end of the hose. 1/2" I.D. hose should be fitted with 1/2" couplings.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-155
Frequently Bought Together
Quick Disconnect Plug Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Hose Mender Brass 5/16 x 5/16"
Couldn't load pickup availability
Water Line Coupling Nipple Brass 3/4"
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 1/4-18
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
DOT Union Brass 1/2 x 1/2"
Couldn't load pickup availability
Hose Barb Brass 3/8" x 3/8-18
Couldn't load pickup availability
Hose Barb Hose Mender Brass 5/16 x 5/16"
Couldn't load pickup availability
Water Line Coupling Nipple Brass 3/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Product Description
Minimize the chance of hose whip. Safety venting allows coupling and uncoupling at zero pressure, reducing the tendency of hose whip. Coupler accepts Industrial Interchange, Tru-Flate, and ARO 210 Series plugs. Use only for applications where a light-duty coupler is called for, such as assembly lines, paint shops and wall manifolds. Operation is simple, just follow the direction of the “On/Off” arrow stamped on the black valve sleeve.• Lightweight aluminum construction
• Corrosion-resistant hard coat anodized finish and airtight nitrile seals
• Knurled sleeve for gripping
• Maximum operating pressure: 200 PSIG
• Temperature range: –20°F to +200°F (–29°C to +93°C)
To operate air sleeve valve:1. Connect plug to coupler until coupler sleeve is engaged.2. Push and turn air sleeve valve towards coupler sleeve to turn on air flow.
Coupler size is important, since a coupler that is too small can act as a restriction in the air line, reducing both the pressure and volume of air reaching the end of the hose. It is generally recommended that the body size of the coupler be matched to the I.D. of the hose being used. Thus 1/4" I.D. hose should be fitted with 1/4" I.D. couplings. Generally speaking, 3/16" I.D. hose should be fitted with 1/4" couplings, while 5/16" I.D. hose may be fitted with either 1/4" or 3/8" couplings, depending on the volume and pressure required at the end of the hose. 1/2" I.D. hose should be fitted with 1/2" couplings.
Technical Specifications
| Item#: | 27809 |
|---|---|
| Description | Safety Coupler |
| Type | Coupler |
| Style | Universal |
| Body Size | 1/4 " |
| Thread Style | Female NSPF |
| Thread Size | 1/4-18 |
| Working Pressure | 200 PSI |
| Material | Aluminum |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
| Weight: | 0.28 lb |
