Weld-In Threaded Insert, 1-1/4"
(Pack of
1.0)
• Material: High Tensile Alloy Steel
• Certified Heat Treatment
• Welding instructions included with each shipment
• Weld with electrodes meeting AWS class E7018 per MIL-E-22200/1
• Center threaded insert with 1/16" clearance on each side
• Align with surface of road plate
• Preheat the insert and road plate in an area with radius around the hole to 450°-950° F
• Weld insert to road plate from both sides
• Use hand grinder to grind excess weld to achieve a level even surface.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Screw Pin Anchor Shackle, 3/8", 2,000 lb WLL
Couldn't load pickup availability
Shoulder Eye Bolt with Nut, Stainless Steel, 3/8", 1,000 lb WLL
Couldn't load pickup availability
Eye Bolt with Nut 1/4" x 4" Long
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 1,500 kg Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 450 kg Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 400 kg Load Limit
Couldn't load pickup availability
Screw Pin Anchor Shackle, 1/4", 1,000 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/16", 1,500 lb WLL
Couldn't load pickup availability
Wire Rope Clip, Malleable, Galvanized, 1/8"
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Rechargeable Neck Light
Couldn't load pickup availability
Product Description
• Material: High Tensile Alloy Steel• Certified Heat Treatment
• Welding instructions included with each shipment
• Weld with electrodes meeting AWS class E7018 per MIL-E-22200/1
• Center threaded insert with 1/16" clearance on each side
• Align with surface of road plate
• Preheat the insert and road plate in an area with radius around the hole to 450°-950° F
• Weld insert to road plate from both sides
• Use hand grinder to grind excess weld to achieve a level even surface.
Technical Specifications
| Item#: | 1423427 |
|---|---|
| Type | Weld-In Insert |
| Thread Size | 1-1/4 (Coil) |
| Swivel | 0 ° |
| Pivot | 0 ° |

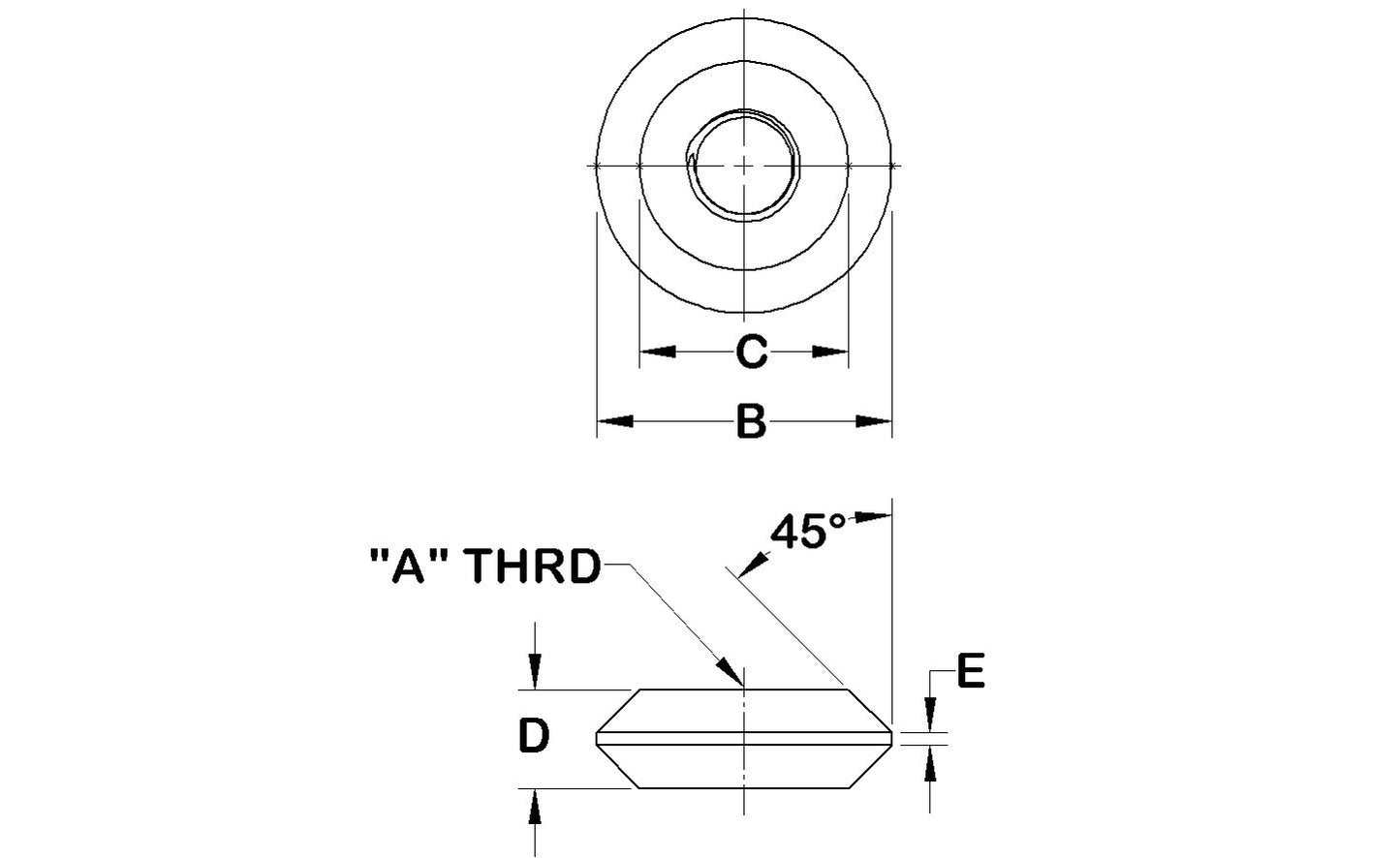

| Dimension A | 1-1/4 " |
| Dimension B | 3 " |
| Dimension C | 2-1/8 " |
| Dimension D | 1 " |
| Dimension E | 1/8 " |
| Dimension G | 1-1/4 (Coil) " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
