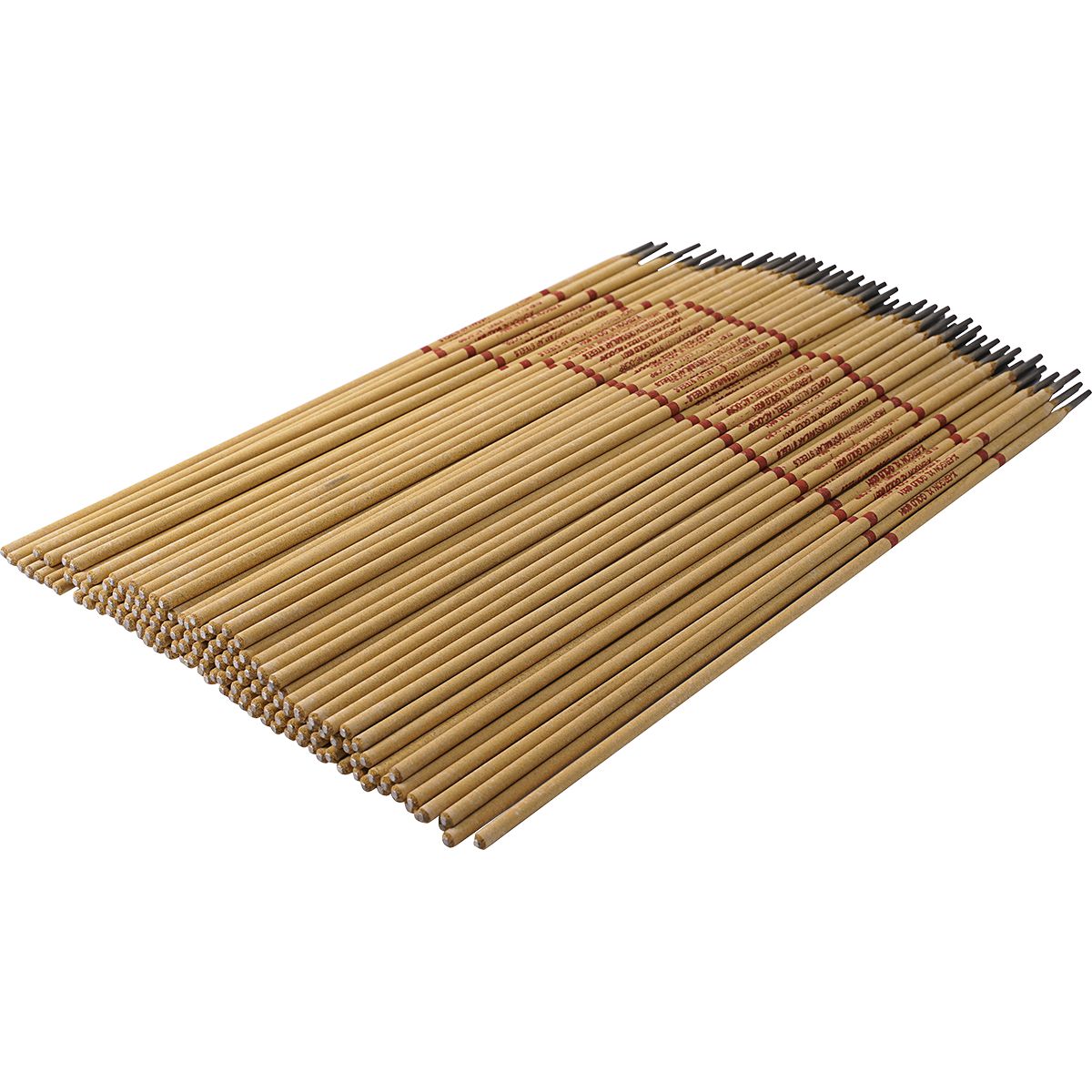

Xl Gold All Steel Electrode Joins Disimialar Metals Tensile Up To 186000 Elongation 32% Polarity Dcep/Ac 97Rb To 35Rc
(Pack of
5)
The standard in all-steel maintenance welding electrodes. Has higher strength, excellent elongation and superior weldability. It is easier to use, the slag is self-lifting, and the deposit has tougher crack resistance. XL Gold™ is the latest generation in all-steel welding electrodes.
• Tougher Welds - Duplex alloy with maximum crack resistance
• Higher Tensile Strength – 186,000 PSI work hardened
• Improved welder appeal and slag removal with the exclusive Chem-A-Tized2 process
• Designed for welding difficult-to-weld steels like alloy steels and dissimilar types of steel
• All-position welding
• Tensile Strength: Up to 186,000 PSI work-hardened/1282 MPa, Up to 128,000 PSI as deposited
• Yield Strength: Up to 90,000 PSI/620 MPa
• Elongation: 32%
• Reduction of Area: 25%
• Machinability: Good with carbide tools
• Corrosion Resistance: Good Hardness: As deposited 97Rb
• Work-Hardened: 35 Rc
• Impact Resistance: 100 ft.-lbs. @ 75°F/25°C
• Heat Resistance: Good up to 750°F/399°C
• Current: DCEP (DC+) or AC
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
601Xl Fc Multi Steel Flux Core Mig Wire .035X10LB
Couldn't load pickup availability
X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 5/32
Couldn't load pickup availability
707 Dissimilar Steel Stick Rod Electrode 5/32"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
E6010 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
176 Extreme Abrasion With Impact 1/4X18IN
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 3/32"
Couldn't load pickup availability
345 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
235 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
665 Copper and Brass TIG Wire 1/16"
Couldn't load pickup availability
Product Description
The standard in all-steel maintenance welding electrodes. Has higher strength, excellent elongation and superior weldability. It is easier to use, the slag is self-lifting, and the deposit has tougher crack resistance. XL Gold™ is the latest generation in all-steel welding electrodes.• Tougher Welds - Duplex alloy with maximum crack resistance
• Higher Tensile Strength – 186,000 PSI work hardened
• Improved welder appeal and slag removal with the exclusive Chem-A-Tized2 process
• Designed for welding difficult-to-weld steels like alloy steels and dissimilar types of steel
• All-position welding
• Tensile Strength: Up to 186,000 PSI work-hardened/1282 MPa, Up to 128,000 PSI as deposited
• Yield Strength: Up to 90,000 PSI/620 MPa
• Elongation: 32%
• Reduction of Area: 25%
• Machinability: Good with carbide tools
• Corrosion Resistance: Good Hardness: As deposited 97Rb
• Work-Hardened: 35 Rc
• Impact Resistance: 100 ft.-lbs. @ 75°F/25°C
• Heat Resistance: Good up to 750°F/399°C
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG0014000G |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 1/8 " |
| Tensile Strength | 186,000 PSI |
| Yield Strength | 90,000 PSI |
| Elongation | 32 % |
| Hardness | 35 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.82 lb |
