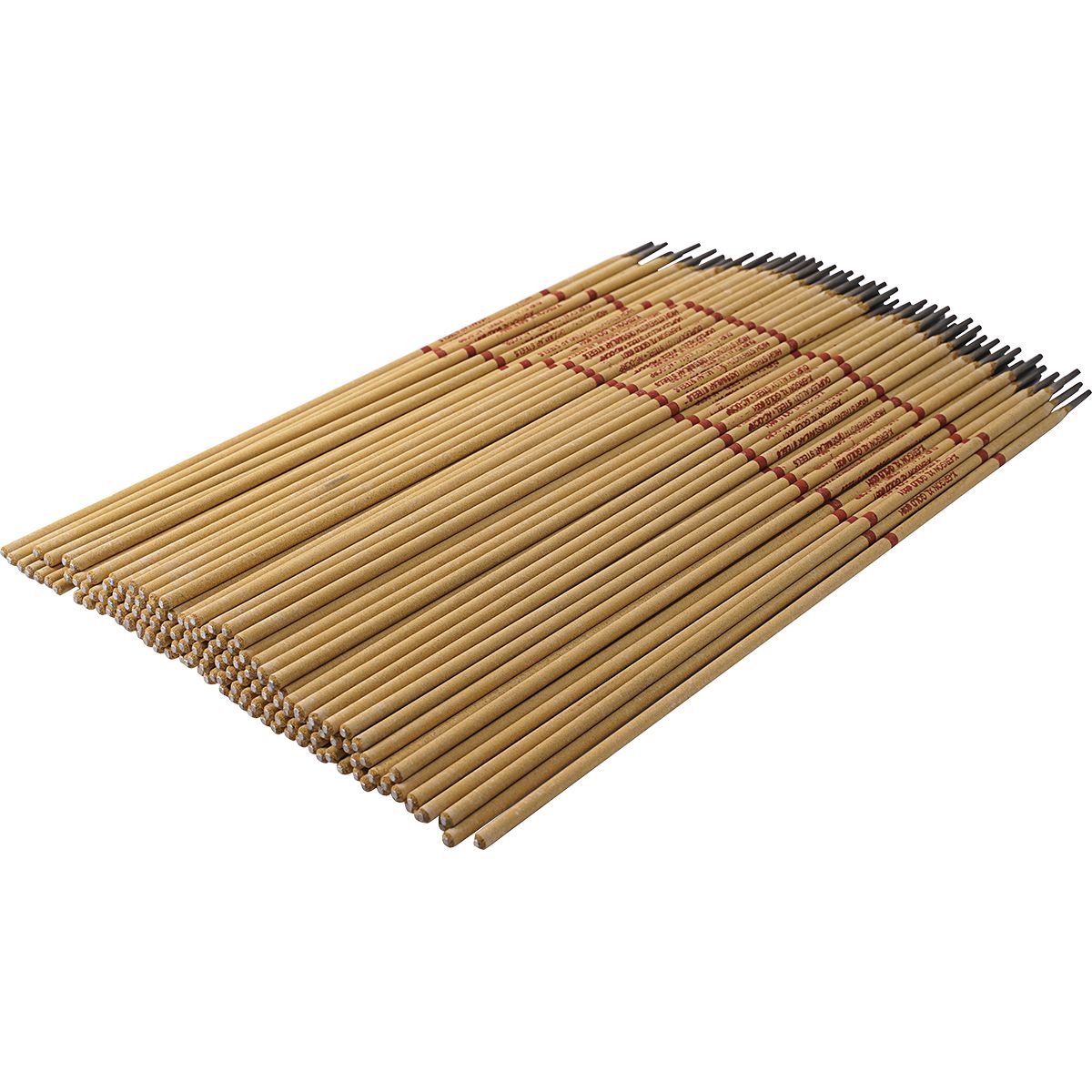

Xl Gold All Steel Electrode Joins Disimialar Metals Tensile Up To 186000 Elongation 32% Polarity Dcep/Ac 97Rb To 35Rc
(Pack of
5)
SKU:EG0015000G Item#: EG0015000G
The standard in all-steel maintenance welding electrodes. Has higher strength, excellent elongation and superior weldability. It is easier to use, the slag is self-lifting, and the deposit has tougher crack resistance. XL Gold™ is the latest generation in all-steel welding electrodes.
• Tougher Welds - Duplex alloy with maximum crack resistance
• Higher Tensile Strength – 186,000 PSI work hardened
• Improved welder appeal and slag removal with the exclusive Chem-A-Tized2 process
• Designed for welding difficult-to-weld steels like alloy steels and dissimilar types of steel
• All-position welding
• Tensile Strength: Up to 186,000 PSI work-hardened/1282 MPa, Up to 128,000 PSI as deposited
• Yield Strength: Up to 90,000 PSI/620 MPa
• Elongation: 32%
• Reduction of Area: 25%
• Machinability: Good with carbide tools
• Corrosion Resistance: Good Hardness: As deposited 97Rb
• Work-Hardened: 35 Rc
• Impact Resistance: 100 ft.-lbs. @ 75°F/25°C
• Heat Resistance: Good up to 750°F/399°C
• Current: DCEP (DC+) or AC
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
333 Dissimilar Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
601Xl Fc Multi Steel Flux Core Mig Wire .035X33LB
Couldn't load pickup availability
3333 Dissimilar Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
24A-62 MIG Welding Nozzle 5/8"
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
777 Stainless Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
Product Description
The standard in all-steel maintenance welding electrodes. Has higher strength, excellent elongation and superior weldability. It is easier to use, the slag is self-lifting, and the deposit has tougher crack resistance. XL Gold™ is the latest generation in all-steel welding electrodes.• Tougher Welds - Duplex alloy with maximum crack resistance
• Higher Tensile Strength – 186,000 PSI work hardened
• Improved welder appeal and slag removal with the exclusive Chem-A-Tized2 process
• Designed for welding difficult-to-weld steels like alloy steels and dissimilar types of steel
• All-position welding
• Tensile Strength: Up to 186,000 PSI work-hardened/1282 MPa, Up to 128,000 PSI as deposited
• Yield Strength: Up to 90,000 PSI/620 MPa
• Elongation: 32%
• Reduction of Area: 25%
• Machinability: Good with carbide tools
• Corrosion Resistance: Good Hardness: As deposited 97Rb
• Work-Hardened: 35 Rc
• Impact Resistance: 100 ft.-lbs. @ 75°F/25°C
• Heat Resistance: Good up to 750°F/399°C
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG0015000G |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 3/32 " |
| Tensile Strength | 186,000 PSI |
| Yield Strength | 90,000 PSI |
| Elongation | 32 % |
| Hardness | 35 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.04 lb |
