Home Welding Welding Alloys Dissimilar Xl Gold Fc Dissimalar-Steel Flux Core Wire .045X33LBS
Dissimilar

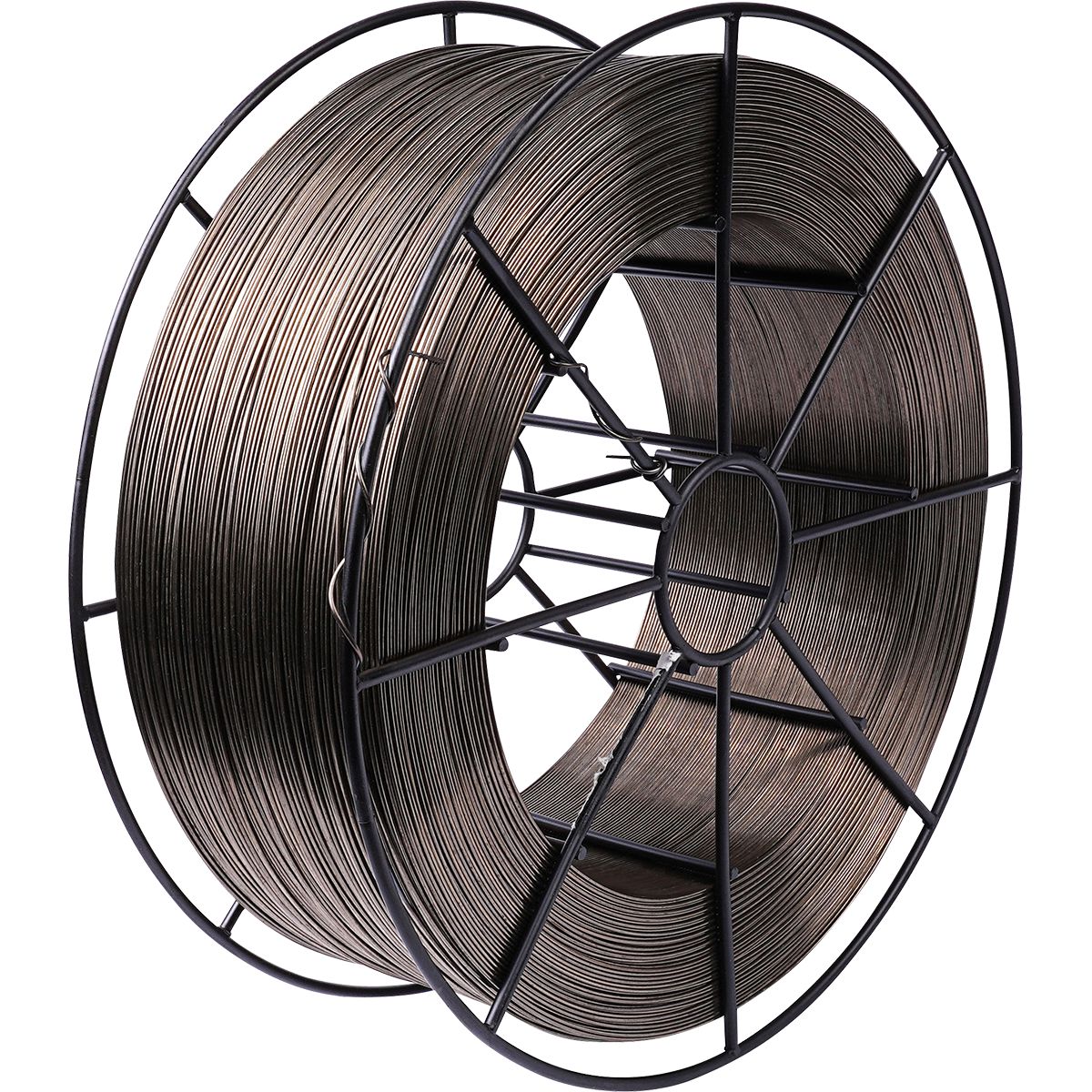

Xl Gold Dissimilar Metals Flux Core Mig Wire Tensile 122000 Gas 98% Ar 2%Co2 75Ar 2%Co2 Polarity Dcep 22-28Rc
(Pack of 33)

Item#: EG60380062

Lawson Products

• Designed for welding all steels— manganese, stainless, AR plate, high-carbon and dissimilar combinations
• Superior welding speed — three times faster than stick welding and over 1-3/4 times faster than solid wires
• High recovery rate — over 90% deposition efficiency
• Low heat input means less distortion and better tolerance control
• All-position
• Self-lifting slag
• Tensile strengt: as deposited 122,000 psi/841 MPa
• Yield strength: as deposited 92,000 psi/634 MPa
• Elongation: 25%
• Hardness: As deposited 22-28Rc/work-hardened 31-37Rc
• Service temperature: 500°F/260°C
• Gas: 100% CO2 or 75% Ar/25% CO2 or 98% Ar/2% O2
• Current: DCEP (DC+)

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together


X-Tractalloy Welding Electrode Non-Conductive Flux 3/32 5/64

Item#: EG00495602

333 Dissimilar Steel Stick Rod Electrode 3/32"

Item#: CS1049

333 Dissimilar Steel Stick Rod Electrode 3/16"

Item#: CW1046

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: 88445

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: 88447

Butt Connector 16 to 14 AWG Blue

Item#: 92823

ER4043 Aluminum MIG Welding Wire 0.035"

Item#: 41736

Rosin Core Solder 1/16"

Item#: 20555

Solid Solder 1/32"

Item#: P52064

E7018 Mild/Carbon Steel Stick Electrode 1/8"

Item#: 41790

X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 3/32

Item#: EG00450000

321 Mild and Carbon Steel MIG Welding Wire 0.035"

Item#: CW1931

Universal Socket Set, SAE, 3/8" Drive, 8pc

Item#: DY89320200

Met 24mm, Cross-Torque Wrench

Item#: DY89310296

Universal Socket Set, SAE, 1/2" Drive, 6pc

Item#: DY89320212

Universal Socket Set, SAE, 3/8" Drive, 8pc

Item#: DY89320200

Met 24mm, Cross-Torque Wrench

Item#: DY89310296

Universal Socket Set, SAE, 1/2" Drive, 6pc

Item#: DY89320212

Product Description

• Designed for welding all steels— manganese, stainless, AR plate, high-carbon and dissimilar combinations
• Superior welding speed — three times faster than stick welding and over 1-3/4 times faster than solid wires
• High recovery rate — over 90% deposition efficiency
• Low heat input means less distortion and better tolerance control
• All-position
• Self-lifting slag
• Tensile strengt: as deposited 122,000 psi/841 MPa
• Yield strength: as deposited 92,000 psi/634 MPa
• Elongation: 25%
• Hardness: As deposited 22-28Rc/work-hardened 31-37Rc
• Service temperature: 500°F/260°C
• Gas: 100% CO2 or 75% Ar/25% CO2 or 98% Ar/2% O2
• Current: DCEP (DC+)

Technical Specifications

Item#: EG60380062
Welding Process MIG
Type Flux-Cored Wire
Diameter .062 "
Tensile Strength 122,000 PSI
Yield Strength 92,000 PSI
Elongation 25 %
Hardness 31-37 HRC
Shielding Gas 75% Ar/25% CO2 or 100% CO2
Polarity DCEP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 37.67 lb
