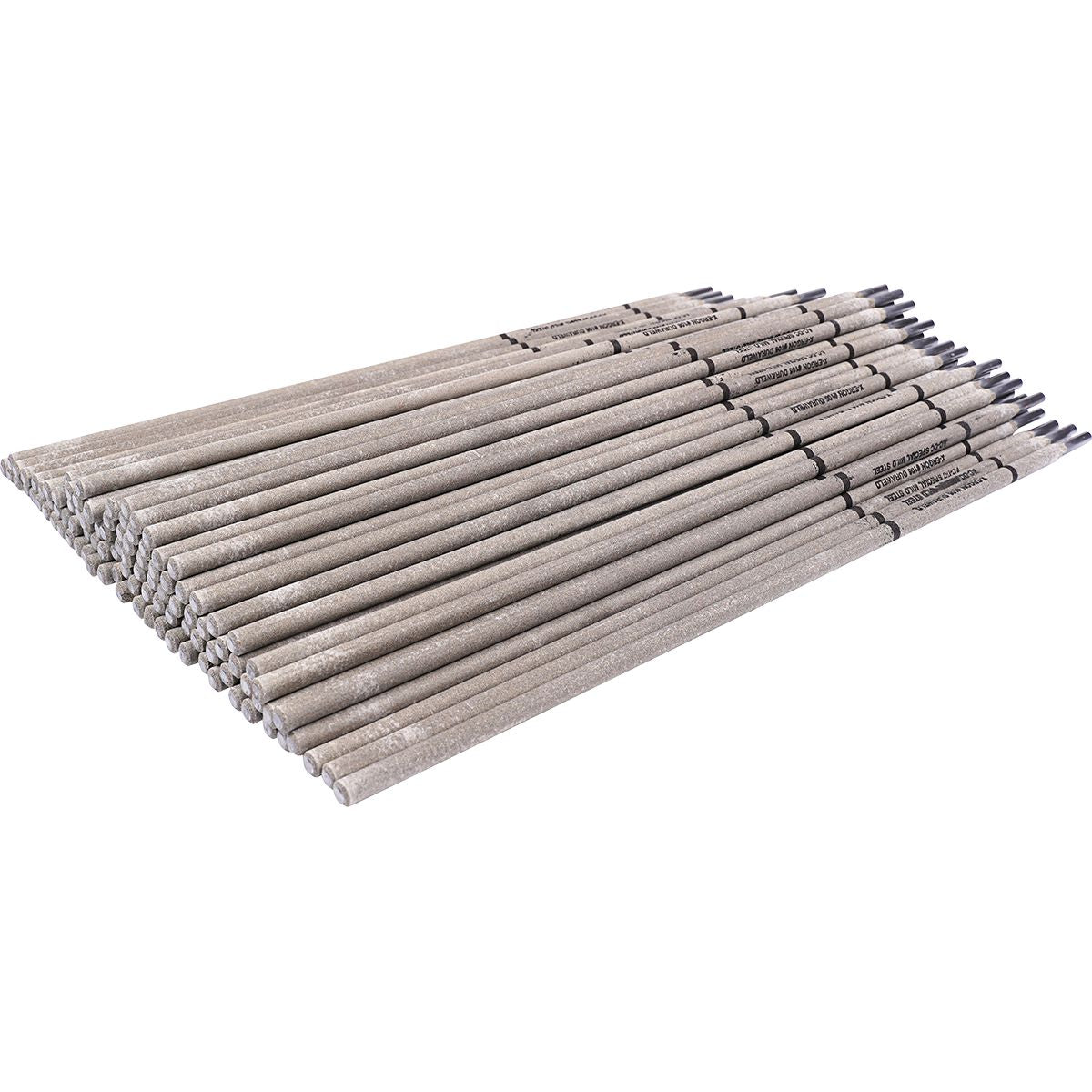

102 High Strength Torch Cuttable High Impact Resitant Low Hydrogen Electrode/Polarity Dcep/Ac/Elongation 26%/ Structural Steel
(Pack of
5)
A torch-cuttable high-strength steel electrode designed to produce crack-resistant welds on a wide range of steels including HSLA steels.
• High Impact Resistance – Handles heavy loads even at sub-zero temperatures
• Excellent Yield Strength – Designed for applications where stress and vibration are a problem
• Excellent for Padding and Buildup – Can be used as an underlay for hardfacing
• Spray Arc Type Transfer – Produces a smooth, finely rippled, uniform deposit
• Low-Hydrogen Coating – Reduces under bead cracking
• Improved AC Characteristics – Stable arc allows better welder control
• Tensile Strength: 115,000 PSI/793 Mpa
• Yield Strength: 104,000 PSI/717 Mpa
• Hardness: 21 Rc
• Elongation: 26%
• Impact Strength (Charpy): -40°F/-40°C 49 ft.-lbs.
• Machinability: Excellent
• Current: DCEP (DC+) or AC
Frequently Bought Together
109 High Strength Electrode 5/32
Couldn't load pickup availability
104 Mild Steel Low Hydrogen Stick Electrode
Couldn't load pickup availability
102 High Strength Steel Electrode 1/4
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 1/8 3/32 1LB EA
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
Oxy-Therm Cutting Rod 3/8 x 24"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
E6010 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
Product Description
A torch-cuttable high-strength steel electrode designed to produce crack-resistant welds on a wide range of steels including HSLA steels.• High Impact Resistance – Handles heavy loads even at sub-zero temperatures
• Excellent Yield Strength – Designed for applications where stress and vibration are a problem
• Excellent for Padding and Buildup – Can be used as an underlay for hardfacing
• Spray Arc Type Transfer – Produces a smooth, finely rippled, uniform deposit
• Low-Hydrogen Coating – Reduces under bead cracking
• Improved AC Characteristics – Stable arc allows better welder control
• Tensile Strength: 115,000 PSI/793 Mpa
• Yield Strength: 104,000 PSI/717 Mpa
• Hardness: 21 Rc
• Elongation: 26%
• Impact Strength (Charpy): -40°F/-40°C 49 ft.-lbs.
• Machinability: Excellent
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG10250000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 3/32 " |
| Tensile Strength | 115,000 PSI |
| Yield Strength | 104,000 PSI |
| Elongation | 26 % |
| Base Metal | High Strength Low-Alloy Steel |
| Hardness | 21 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.1 lb |
