Home Welding Welding Alloys Copper & Brass 157 Bronze Stick Electrode 1/8
Copper & Brass

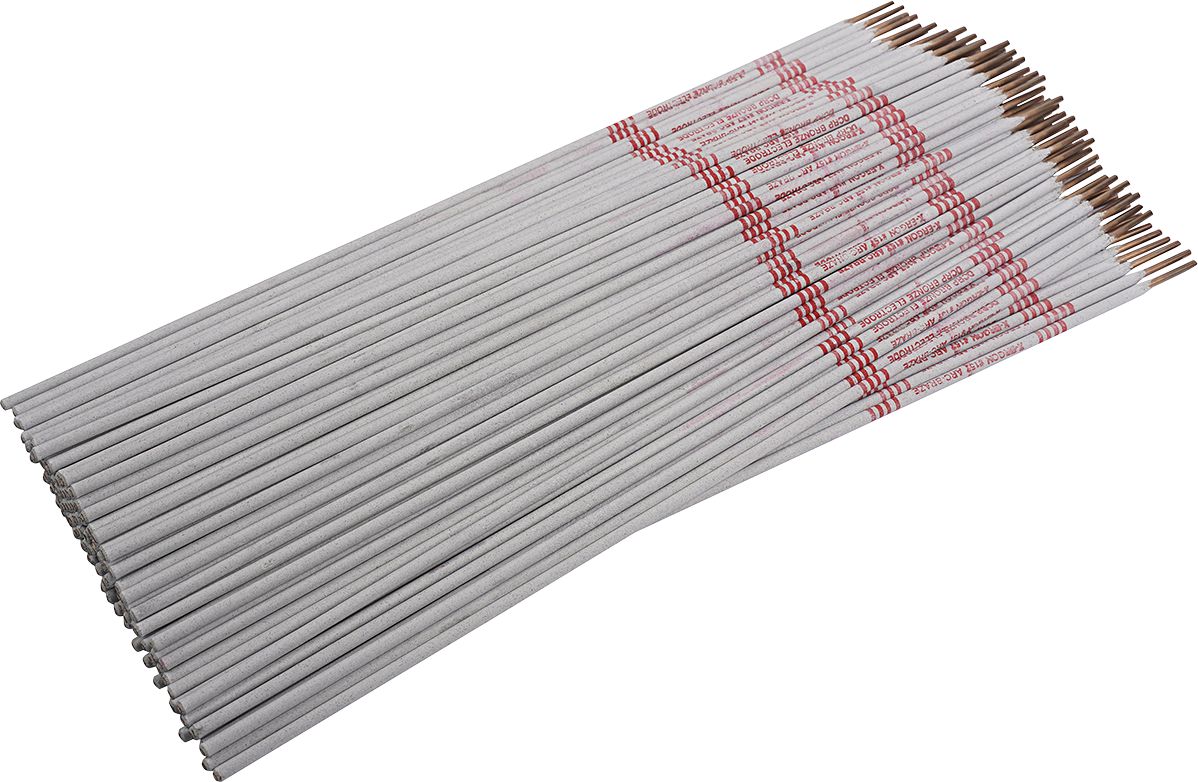

157 Bronze Stick Electrode 1/8
157 Bronze Stick Electrode 1/8

157 Stick Electrode For Bronze Alloys Tensile 50000 Elongation 34% Polarity Dcep Excellent Resistance To Corrosion
(Pack of 5)

Item#: EG15741000

Lawson Products

A highly versatile electrode designed to join many combinations of weldable metals.
• Versatile – Designed to join any combination of metals (except white metals) and excellent as an overlay on steel, cast iron, copper, brass and bronze alloys
• Corrosion Resistant – Excellent resistance to sea water, alkalines and chlorides
• Crack Resistant – Superior formulation eliminates the cracking usually found when welding with copper-based electrodes
• All-Position
• Non-sparking overlays
• Tensile strength: 50,000 PSI/345 Mpa
• Hardness: 60 Rb
• Elongation: 34%
• Machinability: Excellent
• Corrosion: Excellent
• Current: DCEP
• Crack Resistance: Excellent

Read More
Check Availability

Frequently Bought Together

625 Copper and Brass TIG Wire 1/16

625 Copper and Brass TIG Wire 1/16"

Item#: CW3266
625 Copper and Brass TIG Wire 3/32

625 Copper and Brass TIG Wire 3/32"

Item#: CW3267
157T Premium Bronze Solid Tig Wire 3/32X36

157T Premium Bronze Solid Tig Wire 1/8X36

Item#: EG2004157T
Superbutt Connector 22 to 18 AWG Red, Superbutt Connector, Extended Barrel, Red, 22 to 18 AWG, 1.05

Superbutt Connector 22 to 18 AWG Red

Item#: 94727
Self-Drilling Screw Hex Head #6-20 x 1/2

Self-Drilling Screw Hex Head #10-16 x 3/4"

Item#: 84931
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

SAE J995C Locknut with Nylon Insert Grade 8 5/8-11

Item#: 53985
Oxy Acetylene Fuel Gas Three Replacement Flint, Electro-Zinc Plated

Oxy Acetylene Fuel Gas Three Replacement Flint

Item#: CW1309
Rosin Core Solder 1/16

Rosin Core Solder 1/16"

Item#: 20543
163 Arc-Cut Synthetic Carbon Arc Electrode

163 Arc-Cut Synthetic Carbon Arc Electrode

Item#: EG16300250
375 Mild/Carbon Steel Stick Rod Electrode 1/8

375 Mild/Carbon Steel Stick Rod Electrode 1/8"

Item#: CW1052
106 Mild Steel All Purpose Electrode 1/16

106 Mild Steel All Purpose Electrode

Item#: EG1064000G
701 Mild/Carbon Steel Stick Rod Electrode 1/8

701 Mild/Carbon Steel Stick Rod Electrode 1/8"

Item#: P12804

Product Description

A highly versatile electrode designed to join many combinations of weldable metals.
• Versatile – Designed to join any combination of metals (except white metals) and excellent as an overlay on steel, cast iron, copper, brass and bronze alloys
• Corrosion Resistant – Excellent resistance to sea water, alkalines and chlorides
• Crack Resistant – Superior formulation eliminates the cracking usually found when welding with copper-based electrodes
• All-Position
• Non-sparking overlays
• Tensile strength: 50,000 PSI/345 Mpa
• Hardness: 60 Rb
• Elongation: 34%
• Machinability: Excellent
• Corrosion: Excellent
• Current: DCEP
• Crack Resistance: Excellent

Technical Specifications

Item#: EG15741000
Welding Process Stick
Type Stick
Diameter 1/8 "
Tensile Strength 50,000 PSI
Elongation 34 %
Base Metal Bronze; Dissimilar Metals
Hardness 60 HRB
Polarity DCEP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 6.05 lb
