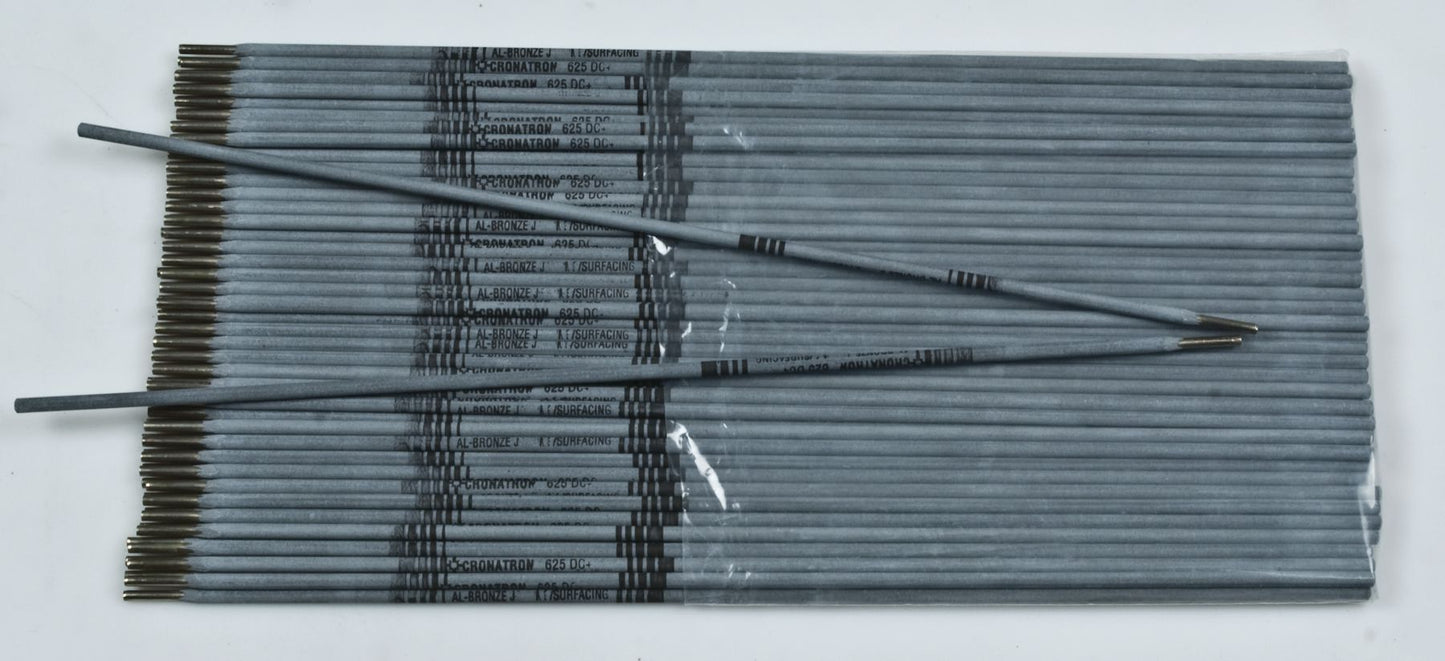

625 Copper and Brass Stick Rod Electrode, Flux Coated, 100 to 120 Amps, DCRP Polarity, Easy Arc Control, 1/8"
(Pack of
5)
SKU:CW1045 Item#: CW1045
Welds most ferrous and non-ferrous metals and joins most combinations of dissimilar metals (except white metals).
Superior Advantages
• Tough, crack-free, machinable welds
• Easy arc control with little preheat
• High frictional wear resistance
• High strength
Tensile Strength: 110,000 PSI
Hardness: Rc 21-23
Polarity: DC Reverse
Typical Applications
• Brass, bronze or cast iron to steel
• Gear teeth, valves and castings
• Impellers, cams and shafts
Usage ProcedureUse DC reverse polarity. Clean surfaces of grease, rust or scale. Use short arc with weave or stringer bead. No preheating required, except on heavy sections: 500°F (260°C) steel; 900°F (482°C) copper. For TIG use direct current straight polarity (electrode–). Clean surfaces of grease, rust, scale, etc. Use pure argon gas or a mixture of argon/helium for heavy sections. Set the flow rate at 15 to 20 CFH. For best results, use a gas lens collet body. Amperage will depend on ba
Frequently Bought Together

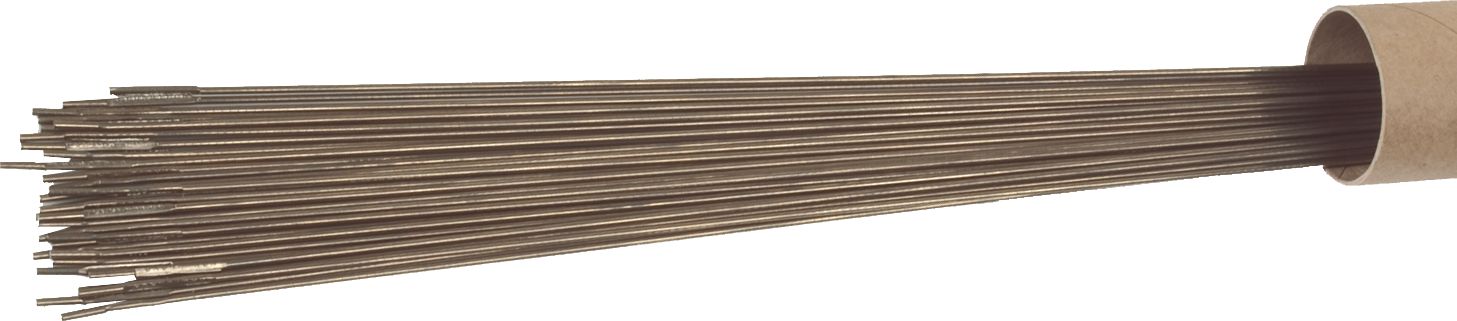

157T Premium Bronze Solid Tig Wire 1/16X36
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Carbon Air Arc Stick Rod Electrode 1/4"
Couldn't load pickup availability
11-45 MIG Welding Contact Tip 0.045"
Couldn't load pickup availability
510 Aluminum TIG Wire 1/8"
Couldn't load pickup availability
Oxy-Therm Collet Nut
Couldn't load pickup availability
Oxy-Therm System
Couldn't load pickup availability
211 Cast Iron TIG Wire 1/8"
Couldn't load pickup availability
Product Description
Welds most ferrous and non-ferrous metals and joins most combinations of dissimilar metals (except white metals).Superior Advantages
• Tough, crack-free, machinable welds
• Easy arc control with little preheat
• High frictional wear resistance
• High strength
Tensile Strength: 110,000 PSI
Hardness: Rc 21-23
Polarity: DC Reverse
Typical Applications
• Brass, bronze or cast iron to steel
• Gear teeth, valves and castings
• Impellers, cams and shafts
Usage ProcedureUse DC reverse polarity. Clean surfaces of grease, rust or scale. Use short arc with weave or stringer bead. No preheating required, except on heavy sections: 500°F (260°C) steel; 900°F (482°C) copper. For TIG use direct current straight polarity (electrode–). Clean surfaces of grease, rust, scale, etc. Use pure argon gas or a mixture of argon/helium for heavy sections. Set the flow rate at 15 to 20 CFH. For best results, use a gas lens collet body. Amperage will depend on ba
Technical Specifications
| Item#: | CW1045 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/8 " |
| Tensile Strength | 110,000 PSI |
| Base Metal | Copper/Brass |
| Hardness | 21-23 HRC |
| Polarity | DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
Product Restrictions
