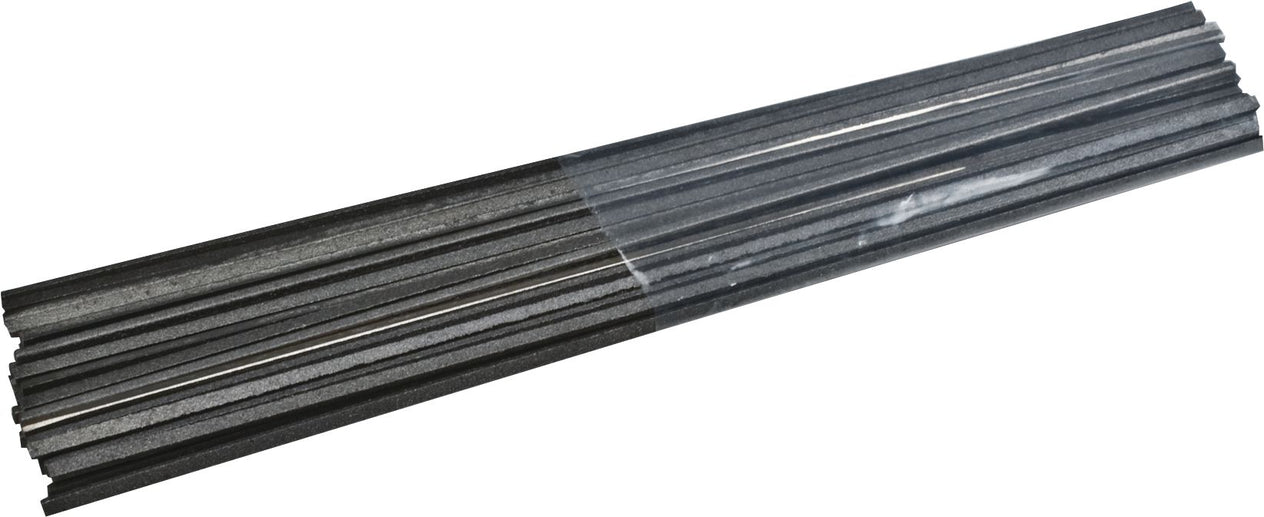

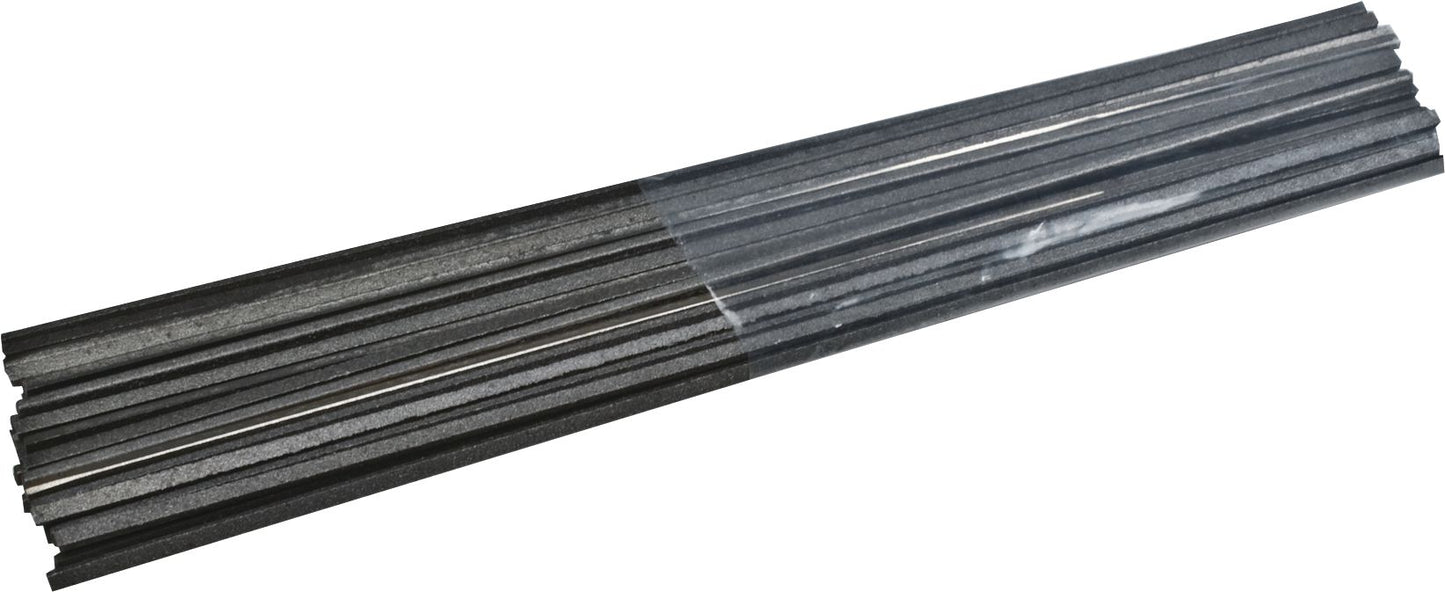

22 Cast Iron Bare Brazing Rod, Gray, 20" Length, 3/16"
(Pack of
5)
SKU:CW3062 Item#: CW3062
A selection of brazing alloys for joining cast iron and brazing sheet metal.
Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
“True Color Match” Cast Iron
Tensile Strength: 53,000 PSIHardness: Rc 18-20Bonding Temperature: 2,300°F (1,260°C)Recommended Flux: F22
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureUse neutral flame and preheat broad area along braze line. Concentrate flame on rod end and allow weld drops to flow on joint. Continue heating until it wets out and continue process. If a second layer is required, hold torch parallel to the work and apply drop-by-drop. When working with cast iron, avoid localized heating and cover finished braze to retard cooling process.
Couldn't load pickup availability
Catalog page#: 13-29
Frequently Bought Together
261 Blue Flux Coated General Purpose Silver Brazing Alloy 1/16X18
Couldn't load pickup availability
265 Bare Silver Free Flowing Copper Alloy .050X20
Couldn't load pickup availability
264 Bare High Silver Cadium Free Alloy 1/16x18
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
23 Copper and Steel Flux Coated Brazing Rod 3/32"
Couldn't load pickup availability
23 Copper and Steel Flux Coated Brazing Rod 1/8"
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
40 High Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
Product Description
A selection of brazing alloys for joining cast iron and brazing sheet metal.Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
“True Color Match” Cast Iron
Tensile Strength: 53,000 PSIHardness: Rc 18-20Bonding Temperature: 2,300°F (1,260°C)Recommended Flux: F22
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureUse neutral flame and preheat broad area along braze line. Concentrate flame on rod end and allow weld drops to flow on joint. Continue heating until it wets out and continue process. If a second layer is required, hold torch parallel to the work and apply drop-by-drop. When working with cast iron, avoid localized heating and cover finished braze to retard cooling process.
Technical Specifications
| Item#: | CW3062 |
|---|---|
| Welding Process | Brazing |
| Type | Bare |
| Diameter | 3/16 " |
| Length | 18 " |
| Tensile Strength | 53,000 PSI |
| Melting Temperature | 1560-2000 °F |
| Color | Gray |
| Base Metal | Cast Iron |
| Recommended Flux | F22 |
| UNSPSC #: | 23271804 |
| TAA Compliant: | No |
| Weight: | 5.0 lb |
