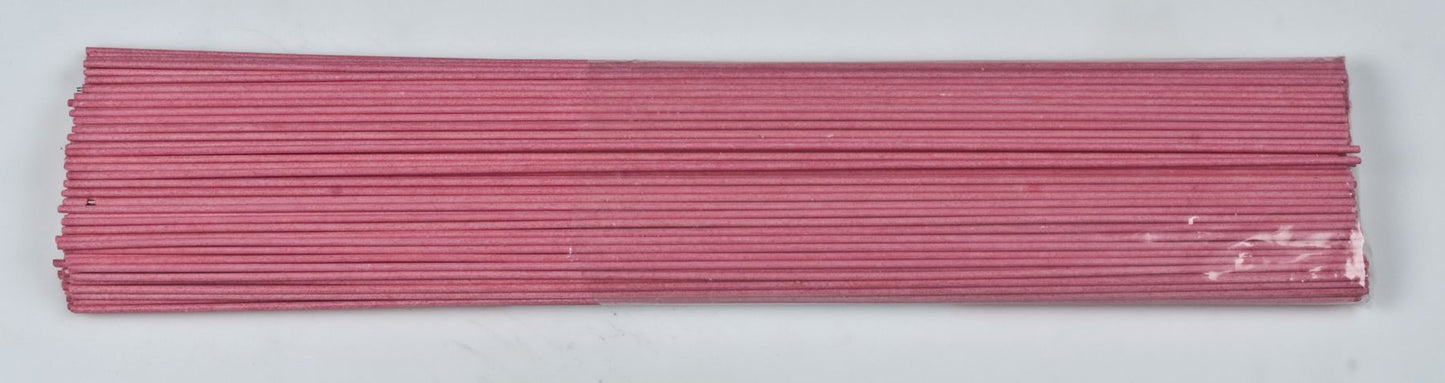

30 Copper and Steel Flux Coated Brazing Rod, Pink, 18" Length, 1/16"
(Pack of
5)
SKU:CW1836 Item#: CW1836
A selection of brazing alloys for joining cast iron and brazing sheet metal.
Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
Maximum strength for joining and buildup
Flux Coating Color: PinkTensile Strength: 100,000 PSITemperature: 1,300°F to 1,600°F (704°C to 871°C)Recommended Flux: F21 (if needed)
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureClean joint areas thoroughly. Heat metal with neutral flame until flux liquifies. Base metals should be dull red as Cronabraze™ 30F commences to penetrate the joint. Use rapid weaving motion with torch to deposit alloy drop-by-drop. Do not concentrate heat enough to melt base metal. Remove flux residue with water.
Frequently Bought Together
45 Silver Bare Brazing Rod 1/16"
Couldn't load pickup availability
44 Silver Bare Brazing Rod 1/16"
Couldn't load pickup availability
43 High Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Metric
Couldn't load pickup availability
Hex Cap Screw Property Class 12.9 M20-2.5 x 90mm
Couldn't load pickup availability
Hex Head Bolt with 7/8" Washer Steel 5/16-18
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
22 Cast Iron Bare Brazing Rod 3/16"
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 3/32"
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 1/8"
Couldn't load pickup availability
TIG Welding Electrode 3/32"
Couldn't load pickup availability
Dissimilar Steel Stick Rod Electrode Kit
Couldn't load pickup availability
X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 3/32
Couldn't load pickup availability
Product Description
A selection of brazing alloys for joining cast iron and brazing sheet metal.Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
Maximum strength for joining and buildup
Flux Coating Color: PinkTensile Strength: 100,000 PSITemperature: 1,300°F to 1,600°F (704°C to 871°C)Recommended Flux: F21 (if needed)
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureClean joint areas thoroughly. Heat metal with neutral flame until flux liquifies. Base metals should be dull red as Cronabraze™ 30F commences to penetrate the joint. Use rapid weaving motion with torch to deposit alloy drop-by-drop. Do not concentrate heat enough to melt base metal. Remove flux residue with water.
Technical Specifications
| Item#: | CW1836 |
|---|---|
| Welding Process | Brazing |
| Type | Flux Coating |
| Diameter | 1/16 " |
| Length | 18 " |
| Tensile Strength | 100,000 PSI |
| Melting Temperature | 1560 - 2000 °F |
| Color | Pink |
| Base Metal | Copper/Steel |
| Recommended Flux | F21 |
| Description | All Purpose |
| UNSPSC #: | 23271804 |
| TAA Compliant: | No |
| Weight: | 5.5 lb |
Product Restrictions
