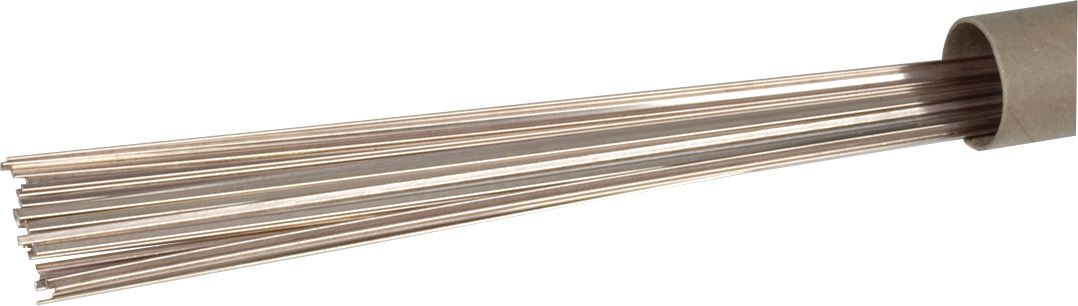

47 Sil-Phos Bare Brazing Rod, Copper/Silver, 0.05" Width, 20" Length, 1/8"
(Pack of
1)
SKU:CW5765 Item#: CW5765
These “sil-phos” alloys provide cost-effective solutions to joining copper and brass alloys.
Superior Advantages
• Thin flow provides excellent capillary action
• No flux required for copper-to-copper applications
• Fills gaps on poor fit-up joints
Excellent ductility and conductivity
Brazing Range: 1,300°F to 1,500°F (704°C to 815°C)Recommended Flux: F40 (for dissimilar)
Typical Applications
• Electrical components
• Plumbing and HVAC
• Copper coils and tubing
• Rotors and armatures
Usage ProcedureHeat broad area using large torch tip; a neutral flame is suggested, and a distance of 2" to 3" from the base metal produces the best results. No flux is required on copper-to-copper welds. The joint area should be clean. When the copper turns dull red, the alloy should be applied and the flame should be kept in constant motion ahead of the rod. These alloys are especially effective on long lap joints, fillets and butts.
Couldn't load pickup availability
Catalog page#: 13-28
Frequently Bought Together
265 Bare Silver Free Flowing Copper Alloy .050X20
Couldn't load pickup availability
264 Bare High Silver Cadium Free Alloy 1/16x18
Couldn't load pickup availability
201 The Elite Bare Brazing Alloy 1/16X18
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
266 Pink Flux Coated Super Fast Flowing Silver Brasing Alloy 1/16X18
Couldn't load pickup availability
45 Silver Bare Brazing Rod 1/16"
Couldn't load pickup availability
43 High Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 1/4X4X5
Couldn't load pickup availability
163 Arc-Cut Synthetic Carbon Arc Electrode
Couldn't load pickup availability
510 Aluminum TIG Wire 1/8"
Couldn't load pickup availability
Product Description
These “sil-phos” alloys provide cost-effective solutions to joining copper and brass alloys.Superior Advantages
• Thin flow provides excellent capillary action
• No flux required for copper-to-copper applications
• Fills gaps on poor fit-up joints
Excellent ductility and conductivity
Brazing Range: 1,300°F to 1,500°F (704°C to 815°C)Recommended Flux: F40 (for dissimilar)
Typical Applications
• Electrical components
• Plumbing and HVAC
• Copper coils and tubing
• Rotors and armatures
Usage ProcedureHeat broad area using large torch tip; a neutral flame is suggested, and a distance of 2" to 3" from the base metal produces the best results. No flux is required on copper-to-copper welds. The joint area should be clean. When the copper turns dull red, the alloy should be applied and the flame should be kept in constant motion ahead of the rod. These alloys are especially effective on long lap joints, fillets and butts.
Technical Specifications
| Item#: | CW5765 |
|---|---|
| Welding Process | Brazing |
| Type | Bare |
| Diameter | 1/8 " |
| Length | 20 " |
| Width | .050 " |
| Melting Temperature | 1300-1500 °F |
| Color | Copper/Silver |
| Base Metal | Sil-Phos |
| Silver Content | Low |
| Recommended Flux | F40 |
| Description | Low Silver |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
