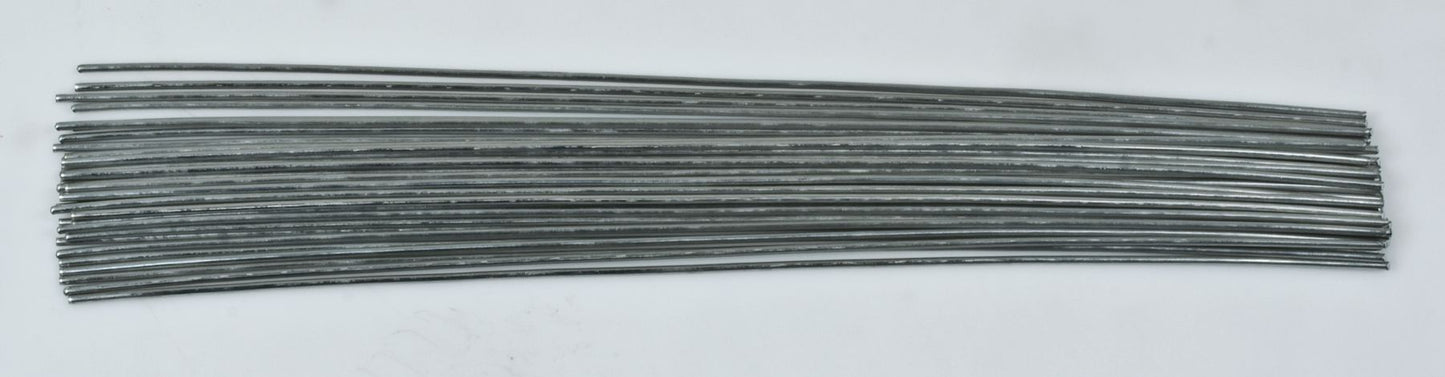

53 Pot Metal Bare Brazing Rod, Shiny Grey, 18" Length, 1/8"
(Pack of
2)
SKU:CW1017 Item#: CW1017
Easily joins white and pot metals.
Superior Advantages
• Lead- and cadmium-free
• Extremely low melting point
• Two times stronger than ordinary solder
Low temperature, dissimilar pot metal
Tensile Strength: 17,500 PSI
Application Temperature: 360°F (182°C)
Recommended Flux: F53
Typical Applications
• Air conditioning and refrigeration units
• Brazing/soldering of copper to aluminum, brass to steel, stainless to zinc, etc.
Usage ProcedureBase metal must supply heat, as a direct flame is unworkable. A carburizing flame should be used. A flux is required for all applications where good bonding is desired.
Technical TipDo not direct torch at flux, as it will char. Allow CRONABRAZE 53 to solidify before quenching and removing flux residue. CRONASOLV™ F53 flux is recommended for all applications.
Couldn't load pickup availability
Catalog page#: 13-30
Frequently Bought Together
241 Premium Aluminum Brazing Alloy 1/8x36
Couldn't load pickup availability
241 Premium Aluminum Brazing Alloy 1/16x36
Couldn't load pickup availability
52 Aluminum/Zinc Bare Brazing Rod 1/8"
Couldn't load pickup availability
40 Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
241 Premium Aluminum Brazing Alloy 1/16x36
Couldn't load pickup availability
201 The Elite Blue Flux Coated Brazing Alloy 1/16
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Product Description
Easily joins white and pot metals.Superior Advantages
• Lead- and cadmium-free
• Extremely low melting point
• Two times stronger than ordinary solder
Low temperature, dissimilar pot metal
Tensile Strength: 17,500 PSI
Application Temperature: 360°F (182°C)
Recommended Flux: F53
Typical Applications
• Air conditioning and refrigeration units
• Brazing/soldering of copper to aluminum, brass to steel, stainless to zinc, etc.
Usage ProcedureBase metal must supply heat, as a direct flame is unworkable. A carburizing flame should be used. A flux is required for all applications where good bonding is desired.
Technical TipDo not direct torch at flux, as it will char. Allow CRONABRAZE 53 to solidify before quenching and removing flux residue. CRONASOLV™ F53 flux is recommended for all applications.
Technical Specifications
| Item#: | CW1017 |
|---|---|
| Welding Process | Brazing |
| Type | Bare Brazing Rod |
| Diameter | 1/8 " |
| Length | 18 " |
| Tensile Strength | 17,500 PSI |
| Melting Temperature | 360 °F |
| Base Metal | Pot Metal |
| Recommended Flux | F53 |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 2.25 lb |
