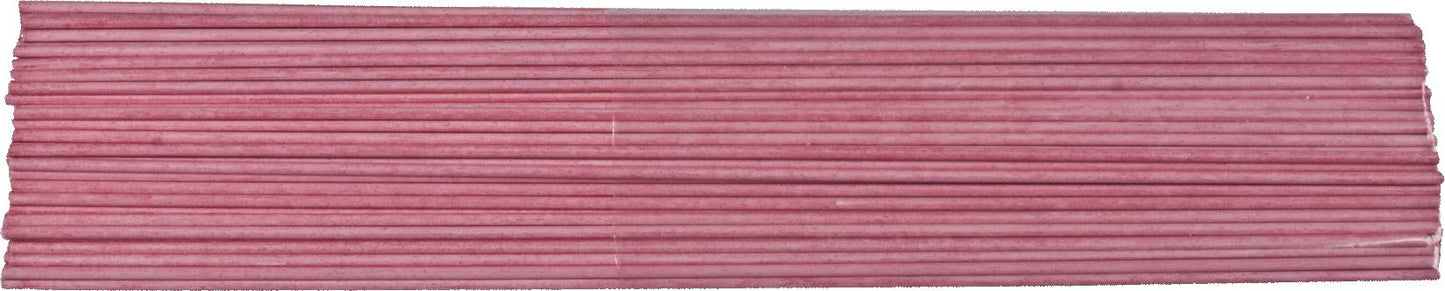

30 Copper and Steel Flux Coated Brazing Rod 1/8"
(Pack of
5.0)
A selection of brazing alloys for joining cast iron and brazing sheet metal.
Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
Maximum strength for joining and buildup
Flux Coating Color: PinkTensile Strength: 100,000 PSITemperature: 1,300°F to 1,600°F (704°C to 871°C)Recommended Flux: F21 (if needed)
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureClean joint areas thoroughly. Heat metal with neutral flame until flux liquifies. Base metals should be dull red as Cronabraze™ 30F commences to penetrate the joint. Use rapid weaving motion with torch to deposit alloy drop-by-drop. Do not concentrate heat enough to melt base metal. Remove flux residue with water.
Frequently Bought Together
261 Blue Flux Coated General Purpose Silver Brazing Alloy 1/16X18
Couldn't load pickup availability
265 Bare Silver Free Flowing Copper Alloy .050X20
Couldn't load pickup availability
266 Pink Flux Coated Super Fast Flowing Silver Brasing Alloy 1/16X18
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
CryoBoost 1/4" Dia. 1/4" Hex Shank Drill Bit
Couldn't load pickup availability
Hex Head Bolt with 7/8" Washer Steel 5/16-18
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
22 Cast Iron Bare Brazing Rod 3/16"
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 3/32"
Couldn't load pickup availability
23 Copper and Steel Flux Coated Brazing Rod 3/32"
Couldn't load pickup availability
163 Arc-Cut Synthetic Carbon Arc Electrode
Couldn't load pickup availability
510 Aluminum TIG Wire 1/16"
Couldn't load pickup availability
E6013 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
Product Description
A selection of brazing alloys for joining cast iron and brazing sheet metal.Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
Maximum strength for joining and buildup
Flux Coating Color: PinkTensile Strength: 100,000 PSITemperature: 1,300°F to 1,600°F (704°C to 871°C)Recommended Flux: F21 (if needed)
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureClean joint areas thoroughly. Heat metal with neutral flame until flux liquifies. Base metals should be dull red as Cronabraze™ 30F commences to penetrate the joint. Use rapid weaving motion with torch to deposit alloy drop-by-drop. Do not concentrate heat enough to melt base metal. Remove flux residue with water.
Technical Specifications
| Item#: | CW1005 |
|---|---|
| Welding Process | Brazing |
| Type | Flux Coating |
| Diameter | 1/8 " |
| Length | 18 " |
| Tensile Strength | 100,000 PSI |
| Melting Temperature | 1560 - 2000 °F |
| Color | Pink |
| Base Metal | Copper/Steel |
| Recommended Flux | F21 |
| Description | All Purpose |
| UNSPSC #: | 23271804 |
| TAA Compliant: | No |
| Weight: | 5.5 lb |
Product Restrictions
