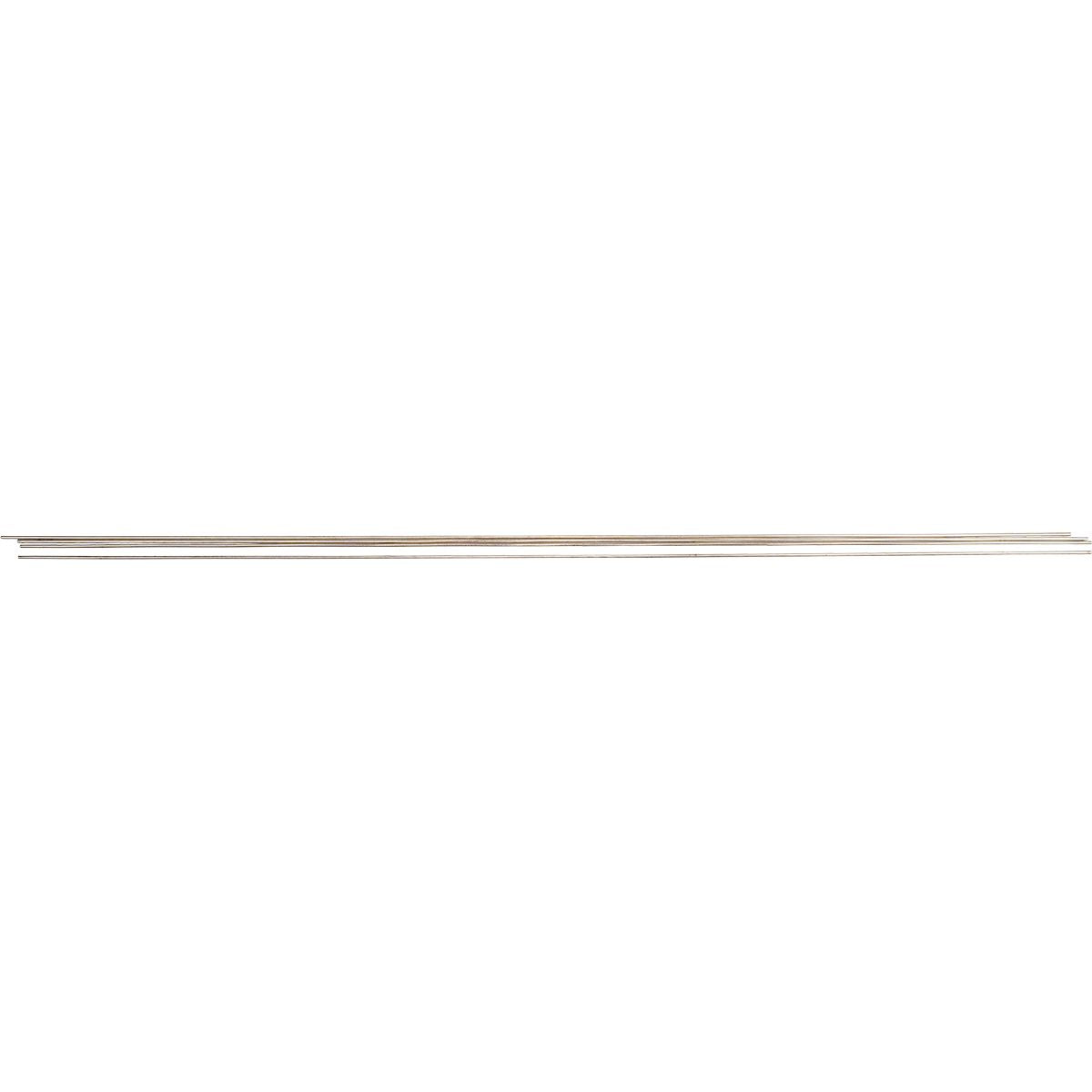

264 For Carbide And Difficult To Braze Materials 70000 Tensile 16.8 Iacs Elongation 34% Low Melting Point
(Pack of
6)
SKU:EG26470000 Item#: EG26470000
A cadmium free, high silver alloy designed for joining carbide tips to tool shanks. Excellent for difficult to braze materials, including tungsten carbide, carbon and low alloy steels, and stainless steels.
• Low Temperature – Easy flowing
• Excellent Capillary Action – Assures sound joints
• Cadmium free
• Absorbs impact and shock
• Superior wetting action and joint toughness
• Forms a fillet in the joint for added strength
• Joint Strength: Up to 70,000 PSI/482 MPa
• Elongation: 34%
• Working Temperature: 1435°F/779°C
• Electrical Conductivity: 16.8% IACS
Frequently Bought Together
22 Cast Iron Bare Brazing Rod 3/16"
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 3/32"
Couldn't load pickup availability
202Xl Red Flux Coated Brazing Alloy 3/16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
46 Sil-Phos Bare Brazing Rod 1/8"
Couldn't load pickup availability
54 Medium Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
52 Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
750 Martensitic Hard Facing Stick Electrode 1/8"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
45 Silver Bare Brazing Rod 1/8"
Couldn't load pickup availability
Product Description
A cadmium free, high silver alloy designed for joining carbide tips to tool shanks. Excellent for difficult to braze materials, including tungsten carbide, carbon and low alloy steels, and stainless steels.• Low Temperature – Easy flowing
• Excellent Capillary Action – Assures sound joints
• Cadmium free
• Absorbs impact and shock
• Superior wetting action and joint toughness
• Forms a fillet in the joint for added strength
• Joint Strength: Up to 70,000 PSI/482 MPa
• Elongation: 34%
• Working Temperature: 1435°F/779°C
• Electrical Conductivity: 16.8% IACS
Technical Specifications
| Item#: | EG26470000 |
|---|---|
| Welding Process | Brazing |
| Type | Bare Brazing Rod |
| Diameter | 1/16 " |
| Length | 18 " |
| Tensile Strength | 90,000 PSI |
| Melting Temperature | 1,435 °F |
| Color | Shiny Grey |
| Base Metal | All Metals Except White Metals |
| Recommended Flux | 361 |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 0.33 lb |
