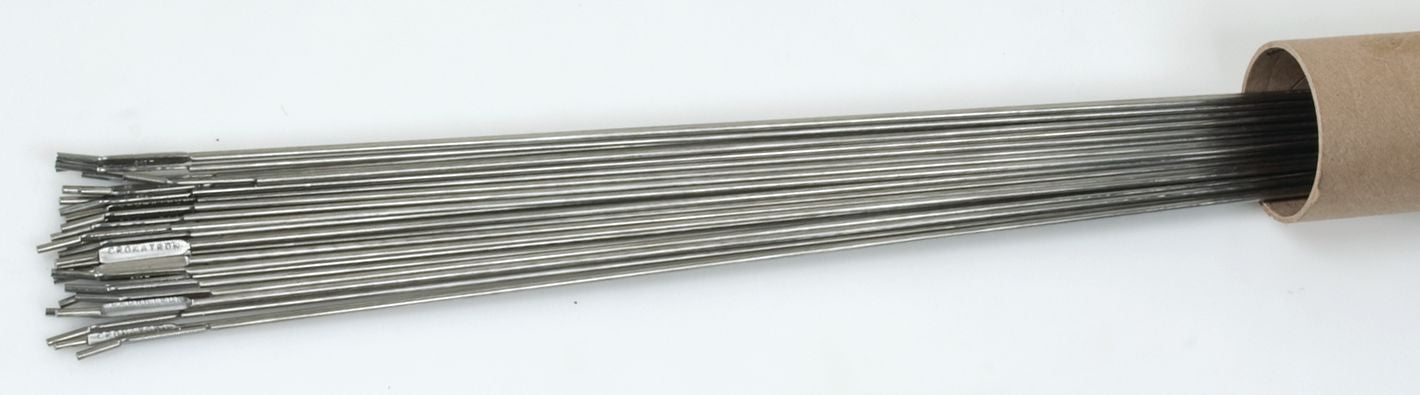

340 Chromoly TIG Wire, Solid, 40 HRC Hardness, 100% Ar Shielding Gas, 25% Elongation, DCSP Polarity, 36" Length, 1/16"
(Pack of
2)
Specially formulated for welding the 400 Series martensitic stainless steels such as 410, 416 and 420. Primary alloying elements are chromium, nickel and molybdenum so it can also be used on chrome-moly tool steels.
Superior Advantages
Produces smooth, dense, porosity- and crack-free weld deposits
Resistant to moderate corrosion and heat scaling (up to 1,200°F)
Hard with excellent machinability
Ideally suited for high temperature applications (up to 800°F)
Tensile Strength: 140,000 PSIElongation: 25%Hardness: Rc 40Polarity: DC StraightGas: 100% Ar
Typical Applications
Tubular frames and roll bars
Forging dies
Fractured tools and blades
Shaft buildup
Bearing surfaces
Metal-to-metal wear
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Frequently Bought Together
102 High Strength Steel Electrode 1/4
Couldn't load pickup availability
103 The Ultimate Low Hydrogen Mild Steel Electrode 5/32
Couldn't load pickup availability
107 Mild Steel High Penetration Low Alloy Electrode 1/8"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
345 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
510 Aluminum TIG Wire 1/16"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 3/32 5/64
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
E6010 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 3/32"
Couldn't load pickup availability
Product Description
Specially formulated for welding the 400 Series martensitic stainless steels such as 410, 416 and 420. Primary alloying elements are chromium, nickel and molybdenum so it can also be used on chrome-moly tool steels.Superior Advantages
Produces smooth, dense, porosity- and crack-free weld deposits
Resistant to moderate corrosion and heat scaling (up to 1,200°F)
Hard with excellent machinability
Ideally suited for high temperature applications (up to 800°F)
Tensile Strength: 140,000 PSIElongation: 25%Hardness: Rc 40Polarity: DC StraightGas: 100% Ar
Typical Applications
Tubular frames and roll bars
Forging dies
Fractured tools and blades
Shaft buildup
Bearing surfaces
Metal-to-metal wear
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Technical Specifications
| Item#: | CW1973 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | 1/16 " |
| Length | 36 " |
| Tensile Strength | 140,000 PSI |
| Elongation | 25 % |
| Base Metal | Chro-moly |
| Hardness | 40 HRC |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 2.5 lb |
Product Restrictions
