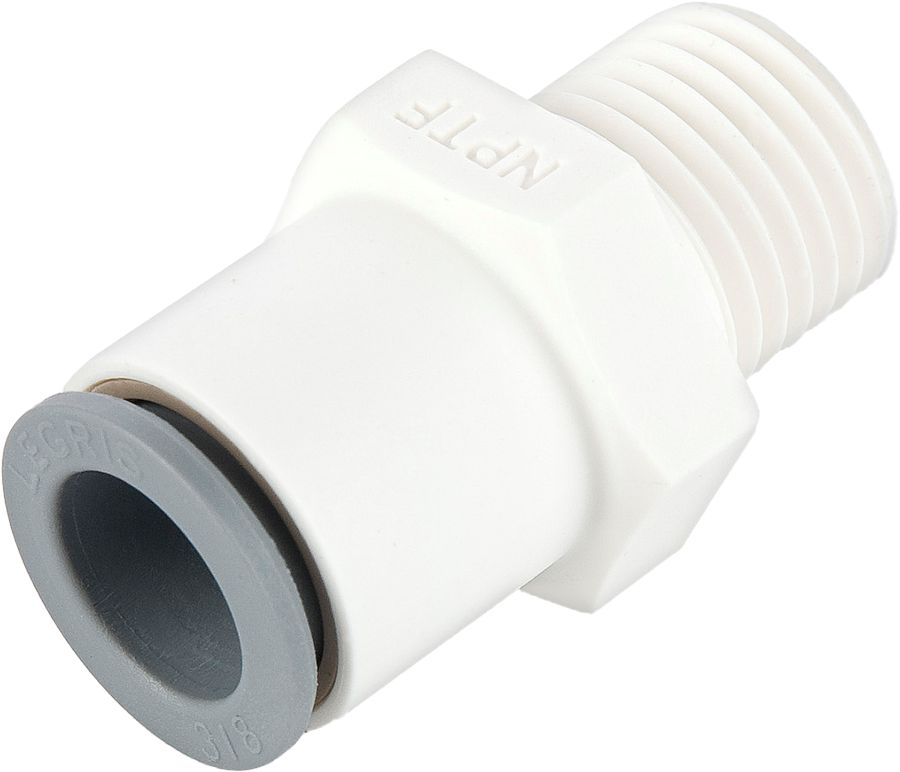

Push-to-Connect Faucet Connector, Polyoxymethlene, 1/2 x 1/2", Tube x NPTF, 232 PSI Working Pressure
(Pack of
1)
SKU:1637597 Item#: 1637597
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Frequently Bought Together
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8"
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 1/2"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"
Couldn't load pickup availability
Pipe Bushing Brass 1/4-18 x 1/8-27
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27
Couldn't load pickup availability
Merchant Coupling Steel 1/4-18 x 1/4-18
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/4"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 3/8"
Couldn't load pickup availability
Push-to-Connect Banjo, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Product Description
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Technical Specifications
| Item#: | 1637597 |
|---|---|
| Style | Tube to Pipe |
| Configuration | Tube to Pipe and Tube to Swivel |
| Tube Size | 1/2 " |
| Thread Size | 1/2 " |
| Material | Polyoxymethlene |
| Internal Hex Size | 15/16 " |
| Working Pressure | 232 PSI |
| Temperature Range | 32 to 158 °F |
| UNSPSC #: | 40183110 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
Product Restrictions
