Home Hydraulics Fittings Industrial Tubing Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 5/32 x 1/4"
Advanced Technology Products (ATP)
Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 5/32 x 1/4
Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 5/32 x 1/4

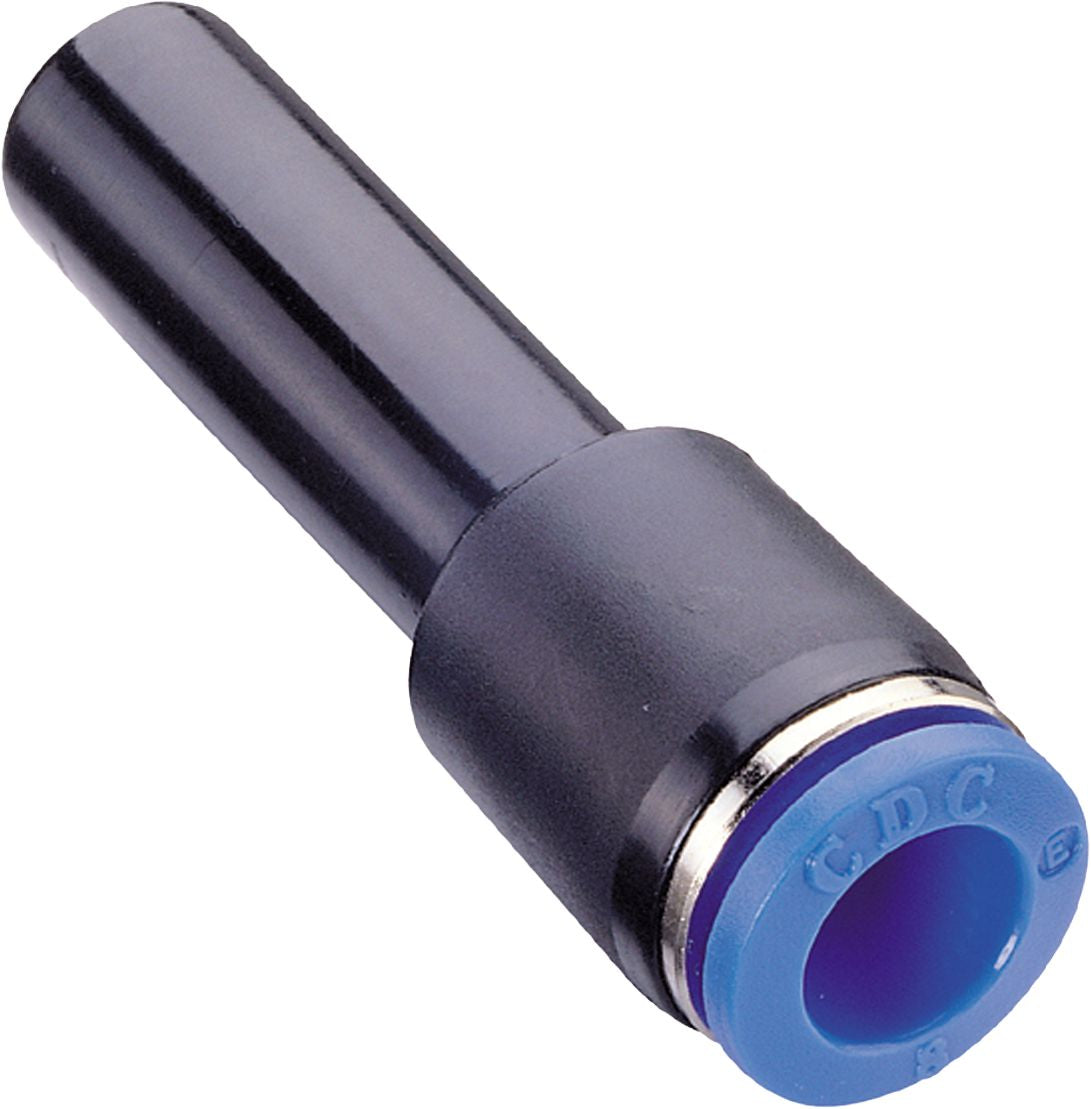

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 5/32 (4mm) x 1/4", Tube x Tube, 150 PSI Working Pressure
(Pack of 2)

Item#: 55733

Lawson Products

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

Catalog page#: 9-34
