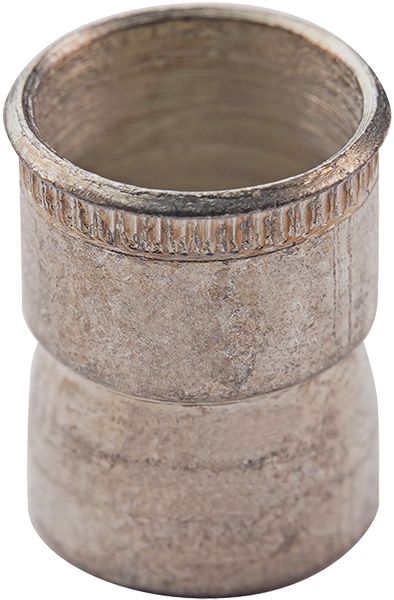

Standard Threaded Insert, Steel, Cadmium Finish, Knurled, Small Flange, Coarse Thread, #12-24
(Pack of
25)
SKU:89498 Item#: 89498
• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Frequently Bought Together
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Standard Threaded Insert #6-32
Couldn't load pickup availability
Standard Threaded Insert #10-24
Couldn't load pickup availability
Standard Threaded Insert M6-1
Couldn't load pickup availability
Diamond Grip II Installation Kit #8-32
Couldn't load pickup availability
Diamond Grip II Installation Kit #6-32
Couldn't load pickup availability
Diamond Grip II Threaded Insert #8-32
Couldn't load pickup availability
Product Description
• Works in any thickness of material over 0.030"• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Technical Specifications
| Item#: | 89498 |
|---|---|
| Diameter | #12 |
| Thread Pitch | 24 |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Standard Threaded Inserts |
| Body Type | Knurled |
| Pilot Drill Size | 3/8 " |
| Pilot Drill Number | 84741 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.17 lb |
