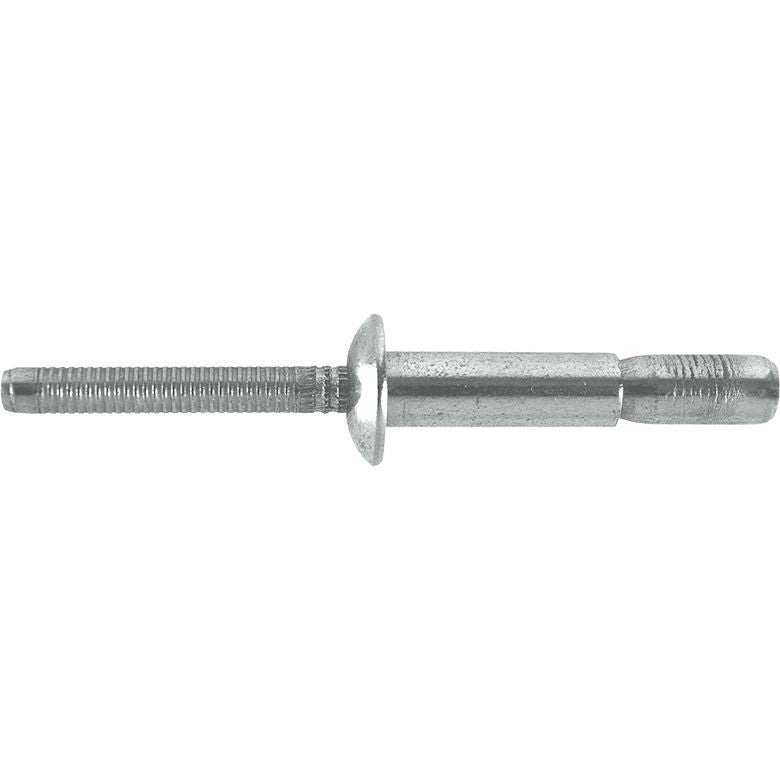

Structural Rivet, Internal Lock, Dome Head, Stainless Steel, 1/4" Diameter, 0.08 to 0.625" Grip Range, 0.81" Body Length
(Pack of
50)
SKU:1543645 Item#: 1543645
Dome Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Frequently Bought Together
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet 120° Countersunk Head Steel 1/8"
Couldn't load pickup availability
Multi-Grip Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 3/16"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 3/16"
Couldn't load pickup availability
Product Description
Dome Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Technical Specifications
| Item#: | 1543645 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | Dome Head |
| Material Body / Mandrel | Stainless Steel/Stainless Steel |
| Diameter | 1/4 " |
| Grip Range | 0.080 – 0.625 " |
| Hole Size | 0.261 – 0.276 " |
| Drill Size | G |
| Head Diameter | 0.525 " |
| Head Height | 0.117 " |
| Body Length | 0.810 " |
| Shear Strength | 2,400 lb |
| Tensile Strength | 1,850 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 1.15 lb |
