Maison ATP – Connecteurs droits et syndicats Union push-to-connect nylon 1/4 x 1/4 "
ATP – Connecteurs droits et syndicats

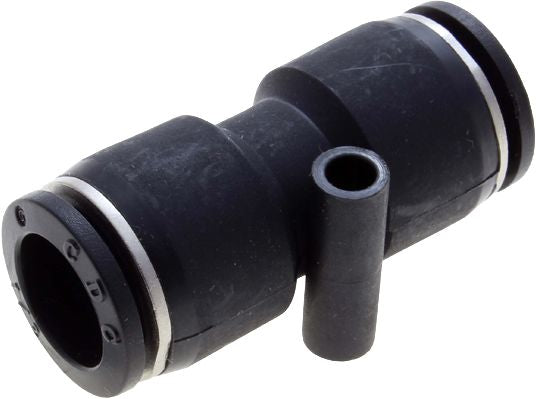

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4

LF3000 Union push-to-connect, corps en nylon, 1/4 x 1/4 ", tube x tube, 290psi
(Paquet de 5)

Article#: 86781

Lawson Products

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

En savoir plus
Vérifier la disponibilité

Page du catalogue : 9-32

Fréquemment achetés ensemble

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4

Connecteur push-to-connect en laiton 5/16 x 1/4 "

Article#: 87622
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/16 x 1/4

Connecteur push-to-connect en laiton 3/16 x 1/4 "

Article#: 87620
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8

Connecteur push-to-connect en laiton 1/8 x 1/8 "

Article#: 86747
PVC Industrial Tubing, 1/4

Tubes industriels en PVC 3/16 "ID x 100 'Clear

Article#: 90336
PVC Industrial Tubing, 1/4

Tubes industriels en PVC 3/4 "ID x 100 'Clear

Article#: 90341
Nylon Tubing 1/4

Tubes en nylon 3/8 "OD x 100 'translucide

Article#: 5429
Pipe Bushing Brass 1/2-14 x 1/8-27, Pipe Bushing, Brass, 1/2-14 x 1/8-27, Male NPT x Female NPT, 1200PSI

Pipe Bruisce en laiton 1 / 2-14 x 1 / 4-18

Article#: 5286
Hex Head Plug Brass 1/2-14 Male NPT, Hex Head Plug, Brass, 1/2-14 Male NPT, 1200PSI

Hex Head Plug en laiton 3 / 8-18 mâle NPT

Article#: 5364
Pipe Bushing Brass 1/2-14 x 1/8-27, Pipe Bushing, Brass, 1/2-14 x 1/8-27, Male NPT x Female NPT, 1200PSI

Pipe Bruisce en laiton 3/8-18 x 1 / 4-18

Article#: 5284
Tubing Cutter 1/8 to 1/2

Couteau de tube 1/8 à 1/2 "

Article#: 87666
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8

Nylon de coude push-to-connect 1/4 x 1/8 "

Article#: 86760
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Connecteur push-to-connect en laiton 3/8 x 3/8 "

Article#: 86754
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18, Pipe Street Elbow, Brass, 45°, 3/8-18 x 3/8

Pipe Street Elbow Brass 45 ° 3/8-18 x 3 / 8-18

Article#: 5314
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Couplage de tuyau en laiton 1/4-18 x 1 / 4-18

Article#: 5289
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Couplage de tuyau en laiton 1 / 2-14 x 1 / 2-14

Article#: 5291
Butt Connector 16 to 14 AWG Blue, Butt Connector, 2-Piece Heat Seal, Polyolefin Insulated, 16 to 14 AWG, 1.45

Connecteur à bout de 16 à 14 awg bleu

Article#: 92823
Nylon Cable Tie 15.25

Tie à câble en nylon 4 "noir

Article#: 94609
180-degree Wide Beam Head Light with Side Light

La tête de poutre large à 180 degrés avec lumière latérale

Article#: 1639013
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Union push-to-connect nylon 3/8 x 3/8 "

Article#: 86782
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16

Union push-to-connect nylon 5/16 x 5/16 "

Article#: 87640
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Connecteur push-to-connect en laiton 3/8 x 3/8 "

Article#: 86754

Description du produit

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Spécifications techniques

Article#: 86781
Style LF3000
Configuration Union
Taille de tube 1/4 "
Matériel Corps en nylon
Pression de travail 290 psi
Plage de température -4 à +175 ° F
UNSPSC #: 40183100
Conforme à la TAA : Oui
Poids: 0.125 lb
