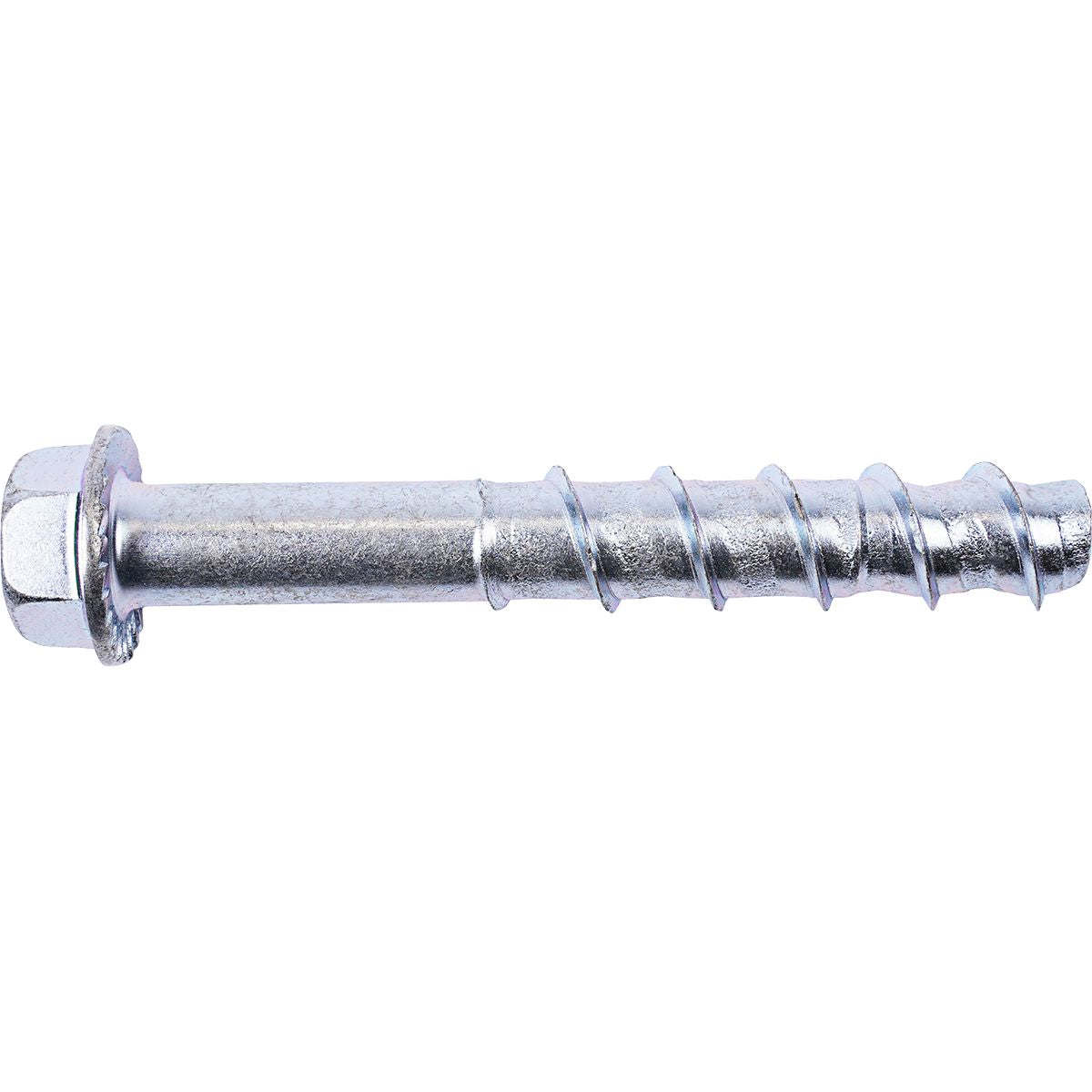

1/2x2-1/2 Mas-Tap HD Hex Head Concrete Screw Anchor
(Pack of
5)
• One-piece heavy-duty anchor with sharp aggressive concrete cutting threads
• Easy to install and can be removed
• Serrated teeth under the head grip to installed fixtures
• Steel thread design provides a keyed engagement and allows for reduced spacing and edge distances
• Can be used in a variety of solid masonry materials such as concrete, brick, stone, and block
• Works with standard properly sized masonry drill bits, no special bit required
• Zinc-plated case hardened low carbon steel
1. Check specs to determine proper anchor.
2. Drill hole to proper depth. Then remove dust and debris.
3. Place anchor through fixture and into hole and begin tightening.
4. Tighten until anchor head is tightly seated against fixture.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: LE-15
Frequently Bought Together
Masonry Anchor TORX® Head Steel 3/16 x 2-3/4"
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 1/4 x 2-3/4"
Couldn't load pickup availability
Masonry Anchor TORX® Head Steel 3/16 x 2-1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/8-11
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Masonry Anchor TORX® Head Steel 3/16 x 4"
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 1/4 x 4"
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 1/4 x 3-3/4"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Product Description
• One-piece heavy-duty anchor with sharp aggressive concrete cutting threads• Easy to install and can be removed
• Serrated teeth under the head grip to installed fixtures
• Steel thread design provides a keyed engagement and allows for reduced spacing and edge distances
• Can be used in a variety of solid masonry materials such as concrete, brick, stone, and block
• Works with standard properly sized masonry drill bits, no special bit required
• Zinc-plated case hardened low carbon steel
1. Check specs to determine proper anchor.
2. Drill hole to proper depth. Then remove dust and debris.
3. Place anchor through fixture and into hole and begin tightening.
4. Tighten until anchor head is tightly seated against fixture.
Technical Specifications
| Item#: | DY09992947 |
|---|---|
| Diameter | 1/2 " |
| Length | 2-1/2 " |
| Type | Screw Anchor |
| Material | Carbon Steel |
| Minimum Embedment | 1-3/4 " |
| Finish | Zinc |
| Drive | 3/4 " |
| Drill Size | 1/2 " |
| Head Style | Hex |
| Drive Style | 3/4 " |
| Minimum Hole Depth | 2-1/8 " |
| UNSPSC #: | 31162104 |
| TAA Compliant: | Yes |
| Weight: | 1.0 lb |
