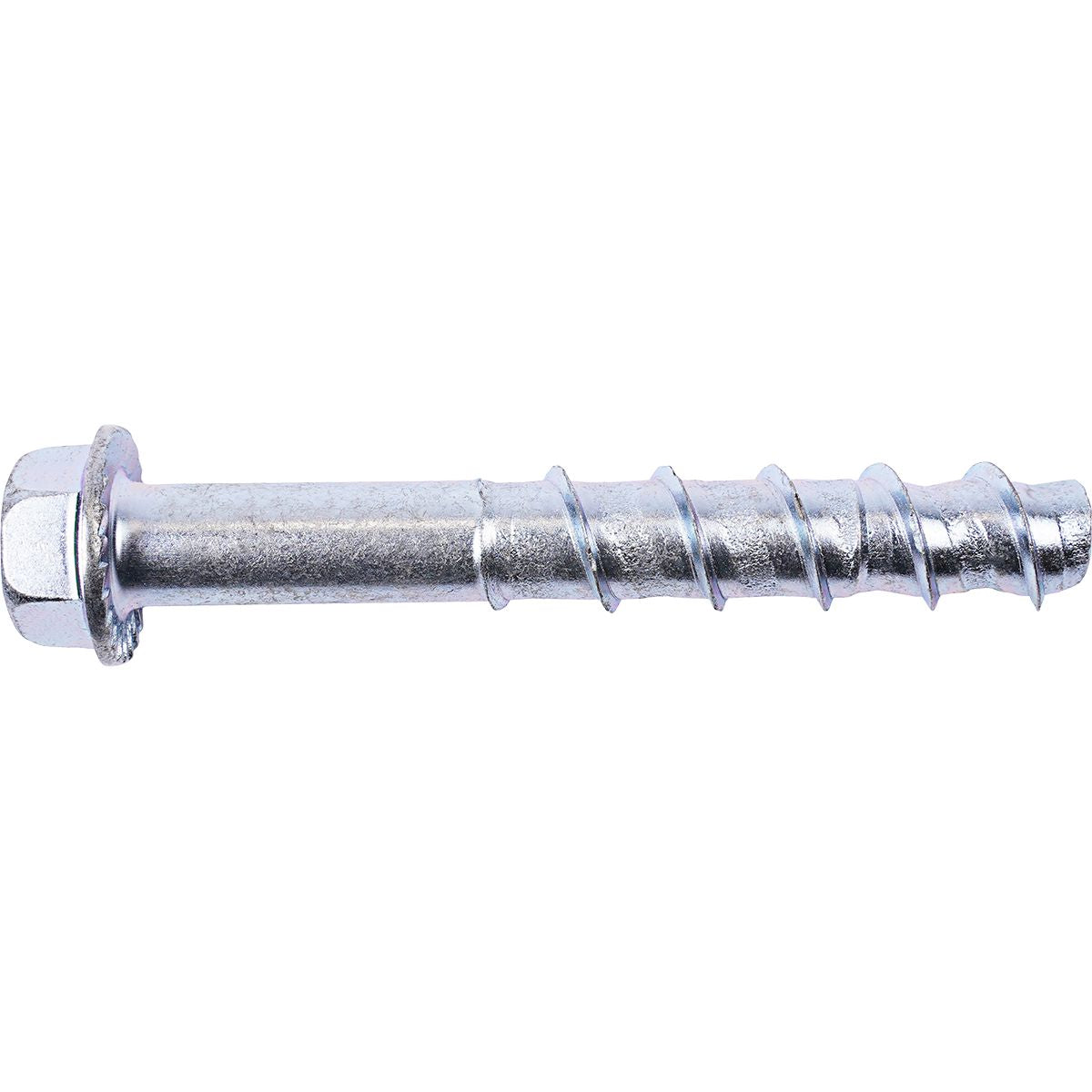

1/2x4 Mas-Tap Hd Anchor
(Pack of
5.0)
• One-piece heavy-duty anchor with sharp aggressive concrete cutting threads
• Easy to install and can be removed
• Serrated teeth under the head grip to installed fixtures
• Steel thread design provides a keyed engagement and allows for reduced spacing and edge distances
• Can be used in a variety of solid masonry materials such as concrete, brick, stone, and block
• Works with standard properly sized masonry drill bits, no special bit required
• Zinc-plated case hardened low carbon steel
1. Check specs to determine proper anchor.
2. Drill hole to proper depth. Then remove dust and debris.
3. Place anchor through fixture and into hole and begin tightening.
4. Tighten until anchor head is tightly seated against fixture.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Wing-Type Toggle Bolt Anchor Steel 1/4-20 x 4"
Couldn't load pickup availability
Masonry Anchor Star Head Steel 1/4 x 2-1/4"
Couldn't load pickup availability
Masonry Anchor Star Head Steel 3/16 x 3-1/4"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Drill 'N Drive Masonry Anchor Setting Tool
Couldn't load pickup availability
Drill 'N Drive Anchor Masonry Anchor Drill Bit
Couldn't load pickup availability
Masonry Anchor TORX® Head Steel 3/16 x 4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
• One-piece heavy-duty anchor with sharp aggressive concrete cutting threads• Easy to install and can be removed
• Serrated teeth under the head grip to installed fixtures
• Steel thread design provides a keyed engagement and allows for reduced spacing and edge distances
• Can be used in a variety of solid masonry materials such as concrete, brick, stone, and block
• Works with standard properly sized masonry drill bits, no special bit required
• Zinc-plated case hardened low carbon steel
1. Check specs to determine proper anchor.
2. Drill hole to proper depth. Then remove dust and debris.
3. Place anchor through fixture and into hole and begin tightening.
4. Tighten until anchor head is tightly seated against fixture.
Technical Specifications
| Item#: | DY09992953 |
|---|---|
| Diameter | 1/2 " |
| Length | 4 " |
| Type | Screw Anchor |
| Material | Carbon Steel |
| Minimum Embedment | 1-3/4 " |
| Finish | Zinc |
| Drive | 3/4 " |
| Drill Size | 1/2 " |
| Head Style | Hex |
| Drive Style | 3/4 " |
| Minimum Hole Depth | 2-1/8 " |
| UNSPSC #: | 31162104 |
| TAA Compliant: | Yes |
| Weight: | 1.42 lb |
