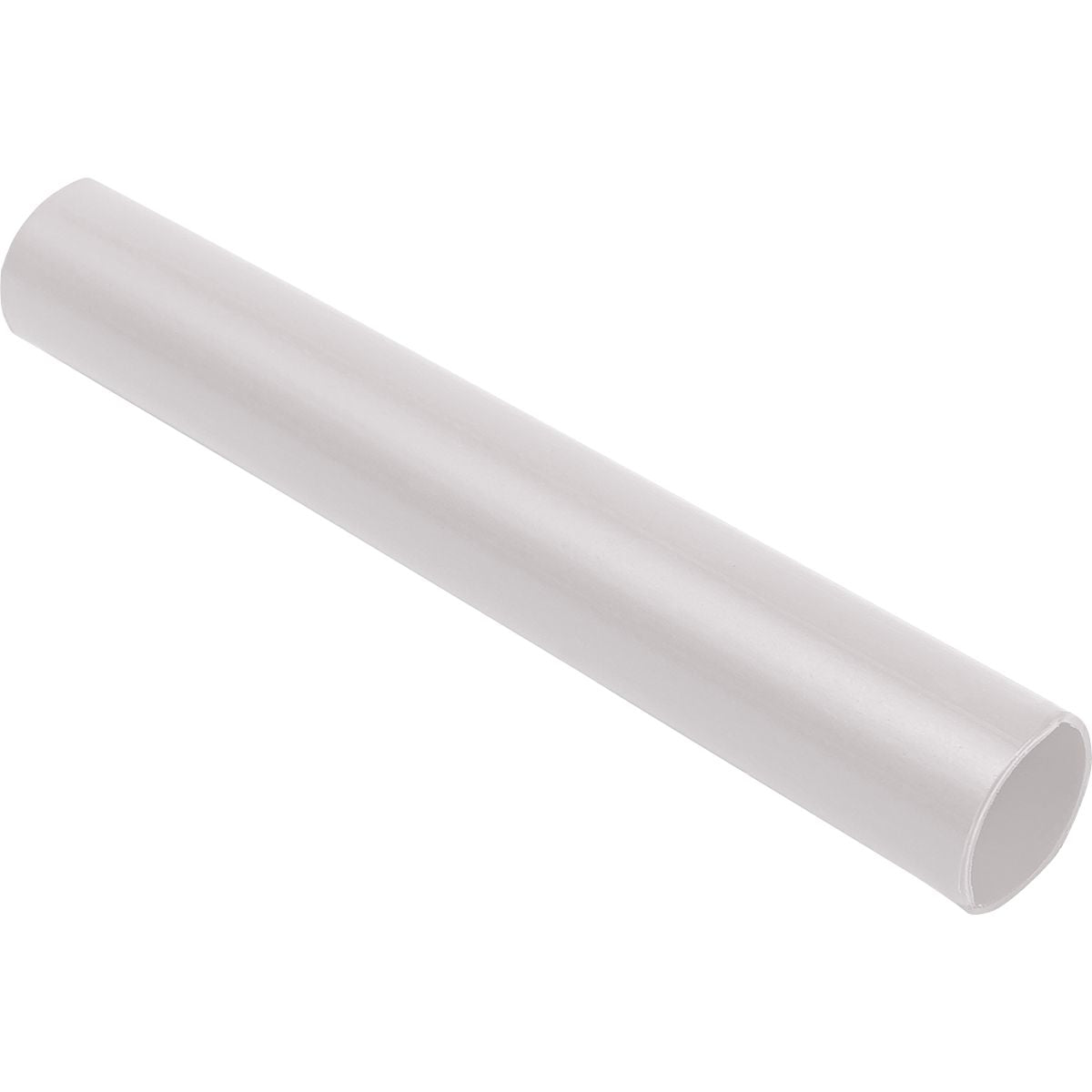

1/4 x 3'' White Thermapod Sealflex Heat Shrink Tube
(Pack of
10.0)
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
Cable Tie Screw Mount #8 Screw White
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Flow Form Heat Shrink Tubing 2 to 4/0 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing Black 3 x 18"
Couldn't load pickup availability
Heat Shrink Tubing 10/3 SJO AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
3310 LED Glow Light 3x AA 6.14" Green/Glow
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 10 to 8 AWG Black
Couldn't load pickup availability
Vinyl Electrical Tape Yellow 3/4" x 66'
Couldn't load pickup availability
Rubber Grommet 3/4" ID
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21880006 |
|---|---|
| Style | Dual Wall |
| Wire Gauge Coverage | 16-14 AWG |
| Diameter | 1/4 " |
| Length | 3 " |
| Color | White |
| I.D. Before Shrinkage | 0.25 " |
| I.D. After Shrinkage | 0.08 |
| Dielectric Strength | 500 V/mm |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | AMS-DTL - 23053/4, CL-1, UL E194625 |
| Description | Thermapod Sealflex Heat Shrink Tubing 1/4 x 3 White |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.025 lb |
