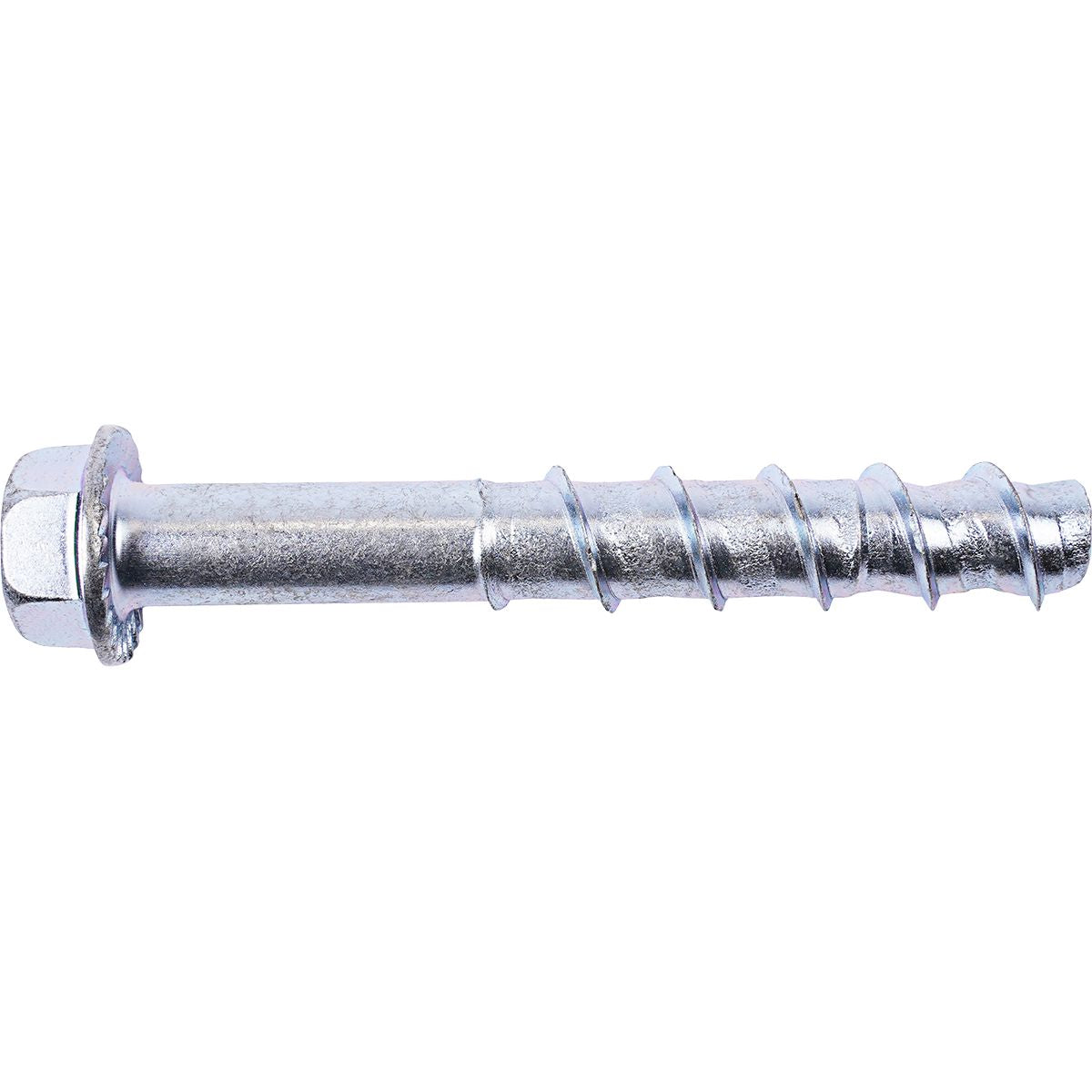

1/4x3 Mas-Tap HD Hex Head Concrete Screw Anchor
(Pack of
10)
SKU:DY09991349 Item#: DY09991349
• One-piece heavy-duty anchor with sharp aggressive concrete cutting threads
• Easy to install and can be removed
• Serrated teeth under the head grip to installed fixtures
• Steel thread design provides a keyed engagement and allows for reduced spacing and edge distances
• Can be used in a variety of solid masonry materials such as concrete, brick, stone, and block
• Works with standard properly sized masonry drill bits, no special bit required
• Zinc-plated case hardened low carbon steel
1. Check specs to determine proper anchor.
2. Drill hole to proper depth. Then remove dust and debris.
3. Place anchor through fixture and into hole and begin tightening.
4. Tighten until anchor head is tightly seated against fixture.
Couldn't load pickup availability
Catalog page#: LE-15
Frequently Bought Together
Masonry Anchor TORX® Flat Head Steel 1/4 x 2-1/4"
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 1/2 x 7"
Couldn't load pickup availability
ALLIGATOR® Anchor Nylon #4 to #10
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/2-13
Couldn't load pickup availability
Flat Washer 316 Stainless Steel 3/8"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"
Couldn't load pickup availability
5/8x4 Mas-Tap Hd Anchor
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 3/16 x 3-3/4"
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 3/16 x 3-1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
Product Description
• One-piece heavy-duty anchor with sharp aggressive concrete cutting threads• Easy to install and can be removed
• Serrated teeth under the head grip to installed fixtures
• Steel thread design provides a keyed engagement and allows for reduced spacing and edge distances
• Can be used in a variety of solid masonry materials such as concrete, brick, stone, and block
• Works with standard properly sized masonry drill bits, no special bit required
• Zinc-plated case hardened low carbon steel
1. Check specs to determine proper anchor.
2. Drill hole to proper depth. Then remove dust and debris.
3. Place anchor through fixture and into hole and begin tightening.
4. Tighten until anchor head is tightly seated against fixture.
Technical Specifications
| Item#: | DY09991349 |
|---|---|
| Diameter | 1/4 " |
| Length | 3 " |
| Type | Screw Anchor |
| Material | Carbon Steel |
| Minimum Embedment | 1 " |
| Finish | Zinc |
| Drive | 7/16 " |
| Drill Size | 1/4 " |
| Head Style | Hex |
| Drive Style | 7/16 " |
| Minimum Hole Depth | 1-3/8 " |
| UNSPSC #: | 31162104 |
| TAA Compliant: | No |
| Weight: | 0.58 lb |
