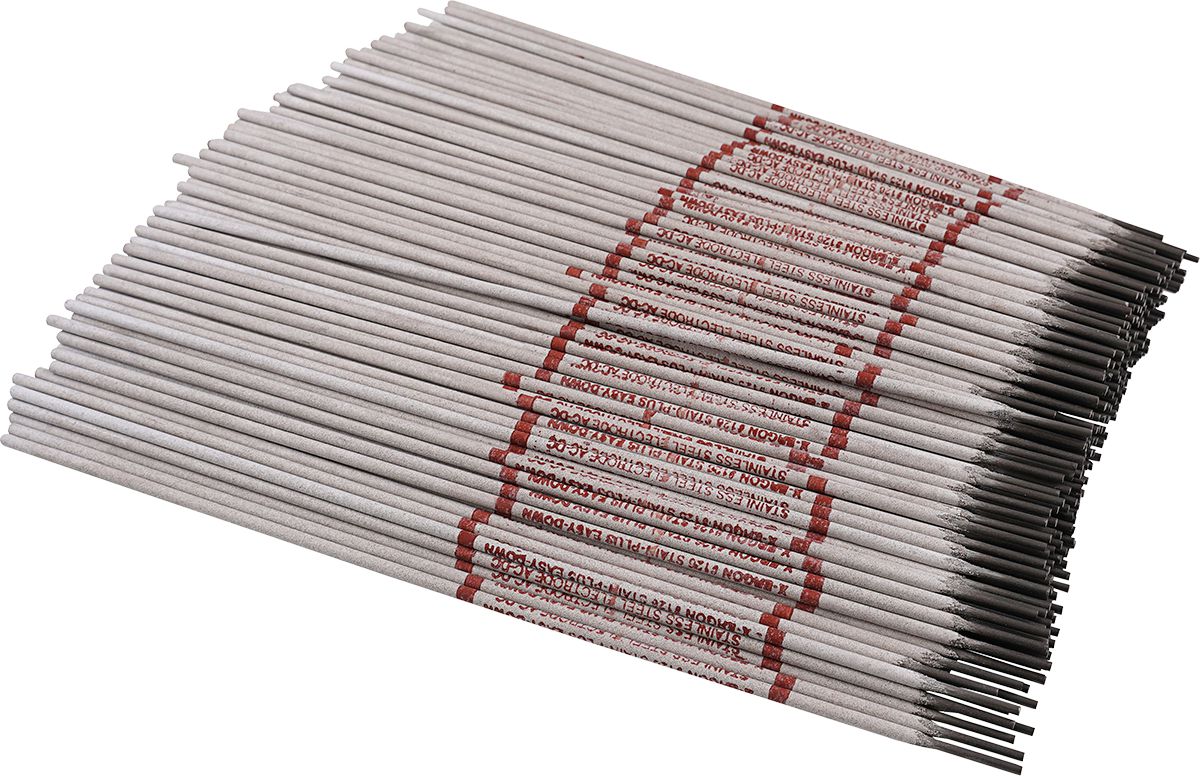

126 Stainless Steel Vertical Down Electrode All Position Tensile 82000 Polarity Dcep/Ac Elongation 40%
(Pack of
5)
SKU:EG12660000 Item#: EG12660000
First maintenance all-position stainless electrode specifically formulated to weld vertical down.
• Controlled Penetration – Softer arc minimizes weld spatter and virtually eliminates burn-through on thin metals
• Time Saving – Vertical down welding increases welding speed by 50%
• Minimum Distortion – Less heat input reduces the risk of distortion on thin gauge stainless
• Excellent arc stability even on AC
• Superior all-position characteristics
• Designed to weld most 200 and 300 series stainless steels
• Tensile Strength: 82,000 PSI/565 Mpa
• Yield Strength: 50,000 PSI/345 Mpa
• Hardness: 82 Rb
• Elongation: 40%
• Machinability: Excellent
• Heat Resistance: Excellent up to 1800°F/982°C
• Corrosion Resistance: Excellent
• Color Match: Excellent
• Current: DCEP (DC+) or AC
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
383 Stainless Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
3000 Nickel TIG Wire 3/32"
Couldn't load pickup availability
3880 Stainless Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
707 Dissimilar Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
3880 Stainless Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
701 Mild/Carbon Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
Product Description
First maintenance all-position stainless electrode specifically formulated to weld vertical down.• Controlled Penetration – Softer arc minimizes weld spatter and virtually eliminates burn-through on thin metals
• Time Saving – Vertical down welding increases welding speed by 50%
• Minimum Distortion – Less heat input reduces the risk of distortion on thin gauge stainless
• Excellent arc stability even on AC
• Superior all-position characteristics
• Designed to weld most 200 and 300 series stainless steels
• Tensile Strength: 82,000 PSI/565 Mpa
• Yield Strength: 50,000 PSI/345 Mpa
• Hardness: 82 Rb
• Elongation: 40%
• Machinability: Excellent
• Heat Resistance: Excellent up to 1800°F/982°C
• Corrosion Resistance: Excellent
• Color Match: Excellent
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG12660000 |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 5/64 " |
| Tensile Strength | 82,000 PSI |
| Yield Strength | 50,000 PSI |
| Base Metal | Stainless Steel |
| Hardness | 82 HRB |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.08 lb |
