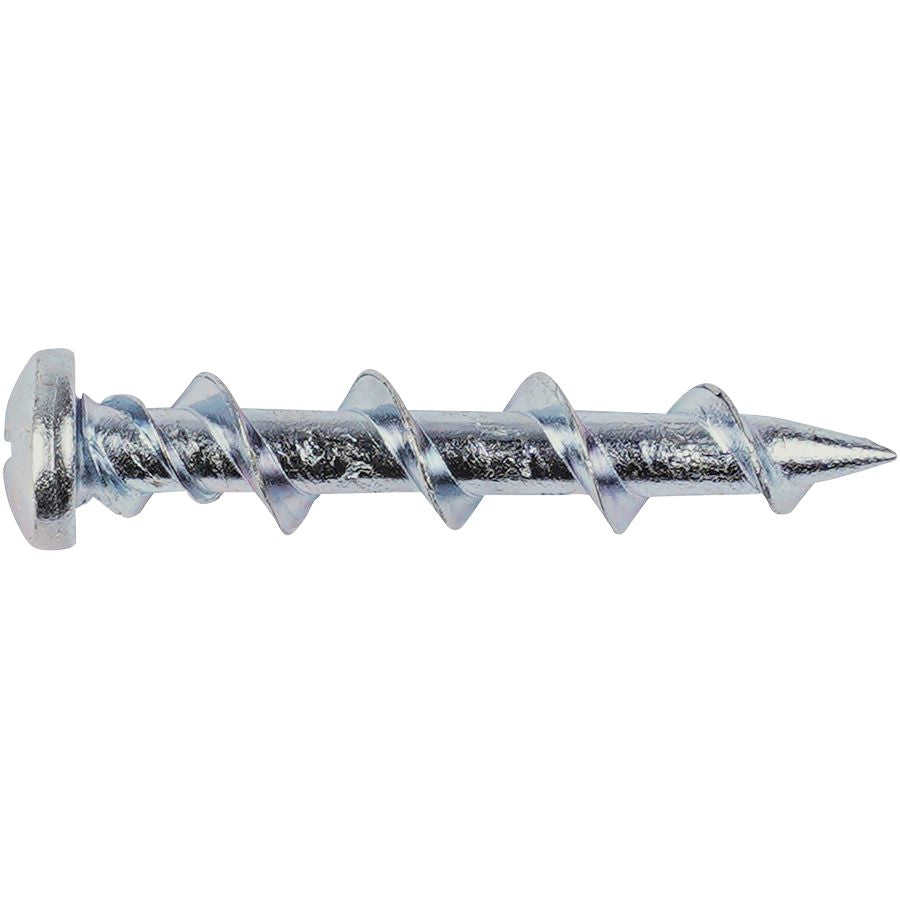

3/16X1-1/4 Chrome Ez-One Phillips Ovl Hd
(Pack of
25.0)
• Unique multi-substrate anchor where the screw is the anchor
• High profile threads make fastening easy in wood, wallboard and masonry-based materials
• Deep cutting corkscrew-like threads provide a smooth entry and powerful hold
• When removed, leaves a much smaller hole than toggle bolts or expansion anchors
• Made of case-hardened steel and chrome plated for corrosion resistance
• Drills its own hole in wallboard and wood (use 3/16" masonry bit for anchoring into concrete, grout, brick, and plaster)
• Pull-Out Strength
– 5/8'' Wall Board: 135 lbs.
– 1/2'' Plywood: 255 lbs.
– Concrete, 4,000 PSI, 1'' Deep: 700 lbs.
– Grout, 1'' Deep: 285 lbs.
• Shear Strength
– 5/8'' Wall Board: 360 lbs.
– 1/2'' Plywood: 600 lbs.
– Concrete, 4,000 PSI, 1'' Deep: 1070 lbs.
– Grout, 1'' Deep: 825 lbs.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Wing-Type Toggle Bolt Anchor Steel #10-24 x 3"
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 3/16 x 1-1/4"
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 1/4 x 1-3/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Masonry Anchor Star Head Steel 3/16 x 3-1/4"
Couldn't load pickup availability
Masonry Anchor TORX® Head Steel 3/16 x 2-3/4"
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 1/4 x 2-3/4"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Product Description
• Unique multi-substrate anchor where the screw is the anchor• High profile threads make fastening easy in wood, wallboard and masonry-based materials
• Deep cutting corkscrew-like threads provide a smooth entry and powerful hold
• When removed, leaves a much smaller hole than toggle bolts or expansion anchors
• Made of case-hardened steel and chrome plated for corrosion resistance
• Drills its own hole in wallboard and wood (use 3/16" masonry bit for anchoring into concrete, grout, brick, and plaster)
• Pull-Out Strength
– 5/8'' Wall Board: 135 lbs.
– 1/2'' Plywood: 255 lbs.
– Concrete, 4,000 PSI, 1'' Deep: 700 lbs.
– Grout, 1'' Deep: 285 lbs.
• Shear Strength
– 5/8'' Wall Board: 360 lbs.
– 1/2'' Plywood: 600 lbs.
– Concrete, 4,000 PSI, 1'' Deep: 1070 lbs.
– Grout, 1'' Deep: 825 lbs.
Technical Specifications
| Item#: | DY09816001 |
|---|---|
| Diameter | 3/16 " |
| Length | 1-1/4 " |
| Type | Screw Anchor |
| Material | Carbon Steel |
| Finish | Chrome Plated |
| Drive | Phillips |
| Head Style | Oval |
| Drive Style | Phillips |
| UNSPSC #: | 31162104 |
| TAA Compliant: | No |
| Weight: | 0.11 lb |
