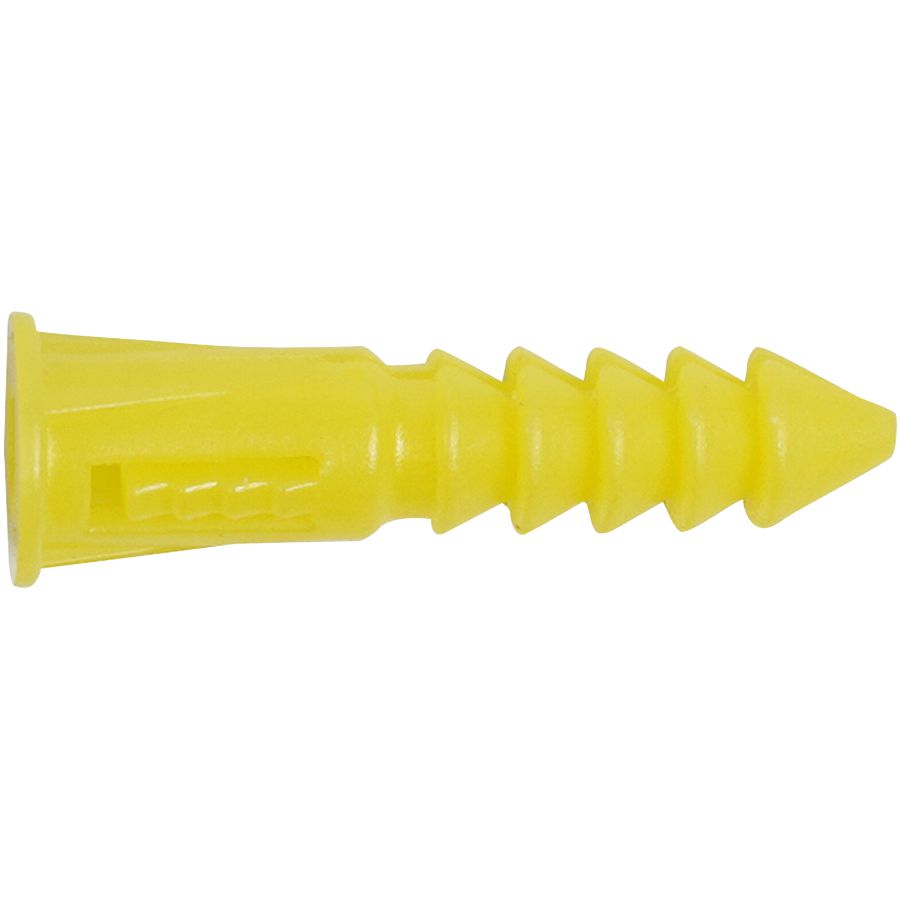

3/16x1 Yellow Ribbed Plastic Wall Anchor
(Pack of
100)
SKU:DY09580019 Item#: DY09580019
• Works in concrete, brick, masonry or drywall
• Ribbed body expands and “bites in'' to the gripping surface to give a very dependable fastening application
• Safe for use in blind applications where electrical wiring might be present
• Yellow plastic anchor has a ribbed body plus gripping tabs on each side of the neck
• Minimum material thickness: 3/8”
Note: Strengths are dependent on size of anchor and strength of material and will vary depending on application. Strengths are higher on thicker materials.
Couldn't load pickup availability
Catalog page#: LE-14
Frequently Bought Together
Conical Screw Anchor Plastic #8 to #10 x 7/8"
Couldn't load pickup availability
Mini Self-Drilling Wall Anchor Steel 1-1/4"
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 3/16 x 1-1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Self-Drilling Standard Wall Anchor Nylon #6 to #10
Couldn't load pickup availability
Tamper-Proof Nail Drive Anchor Steel 1/4 x 1-1/2"
Couldn't load pickup availability
Conical Screw Anchor Plastic #6 to #8 x 3/4"
Couldn't load pickup availability
Product Description
• Works in concrete, brick, masonry or drywall• Ribbed body expands and “bites in'' to the gripping surface to give a very dependable fastening application
• Safe for use in blind applications where electrical wiring might be present
• Yellow plastic anchor has a ribbed body plus gripping tabs on each side of the neck
• Minimum material thickness: 3/8”
Note: Strengths are dependent on size of anchor and strength of material and will vary depending on application. Strengths are higher on thicker materials.
Technical Specifications
| Item#: | DY09580019 |
|---|---|
| Length | 1 " |
| Type | Plastic Screw Anchor |
| Size | 3/16 X 1 |
| Diameter | 3/16 " |
| Material | Plastic |
| Drill Size | 3/16 " |
| Grip Range | 3/8 and up " |
| Color | Yellow |
| Minimum Wall Thickness | 3/8 " |
| Screw Size | #4 or #6 |
| Tensile Pull-Out Strength | 50 - 70 lb |
| Shear Proof Test Load | 75 - 150 lb |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.04 lb |
